ASUS AP140R-E1 1U barebone server

PSCH-LR

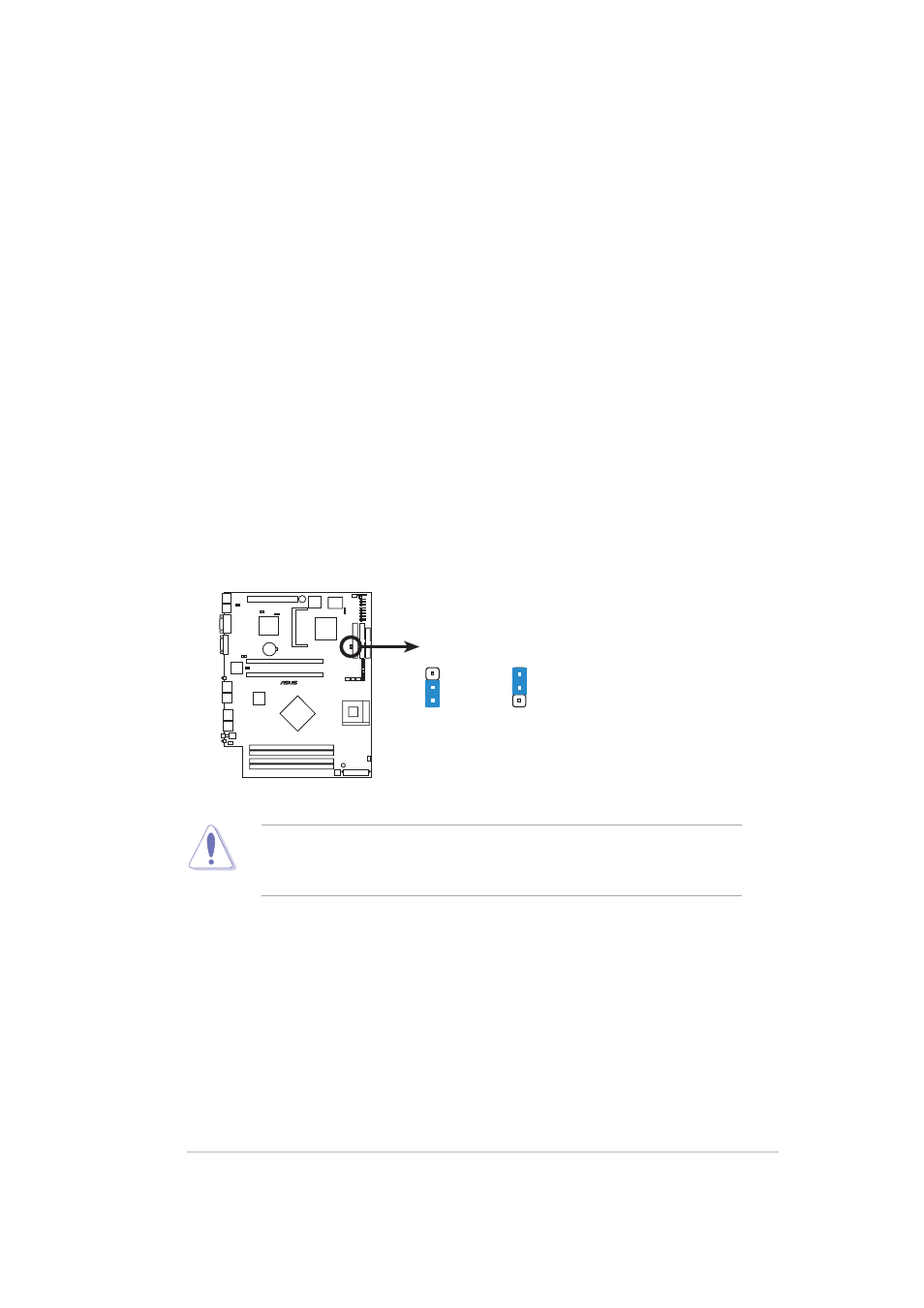

PSCH-LR Clear RTC RAM

Normal

(Default)

Clear CMOS

CLRTC1

6. Clear RTC RAM (3-pin CLRTC1)

This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system
setup parameters by erasing the CMOS RTC RAM data. The RAM
data in CMOS, that include system setup information such as system
passwords, is powered by the onboard button cell battery.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the

cap on pins 2-3 for about 5~10 seconds, then move the cap back
to pins 1-2.

4. Re-install the onboard battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the ~~key during the boot process and enter BIOS~~

setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC
jumper default position. Removing the cap will cause system boot
failure!
