Chapter 2: Hardware setup 2-18
2.6 Cable connections
The bundled system cables are pre-connected before shipment. You
do not need to disconnect these cables unless you will remove pre-
installed components to install additional devices.
Refer to this section when reconnecting cables to ensure correct cable
connections.

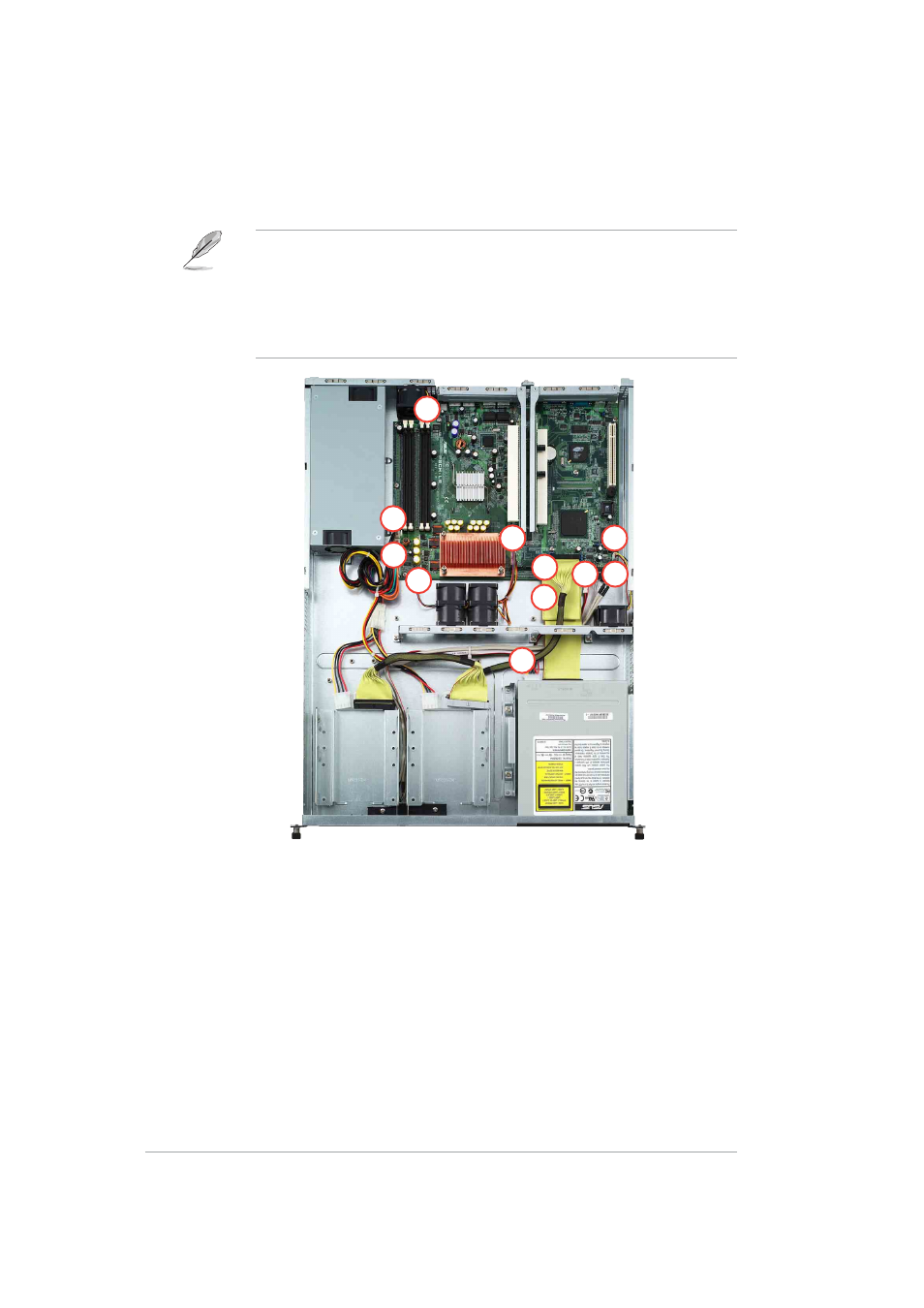

Pre-connected system cables
1. Rear fan connector (FAN5)
2. 4-pin 12V power connector (from power supply to motherboard)
3. 20-pin ATX power connector (from power supply to motherboard)
4. System fan connector (FAN6)
5. System fan connectors (FAN2, FAN3, FAN4)
6. Device fan connector (FAN1)
7. Panel connector for front panel LEDs
8. Front panel USB 2.0 (2 ports)
9. Primary IDE (from motherboard to HDDs)
10. Secondary IDE (from motherboard to optical drive)
11. 4-pin power connector (from power supply to optical drive)
2
3
6
7 8
5
4
11
10
9
1
