4-5 ASUS AP140R-E1 1U barebone server
PSCH-LR
®

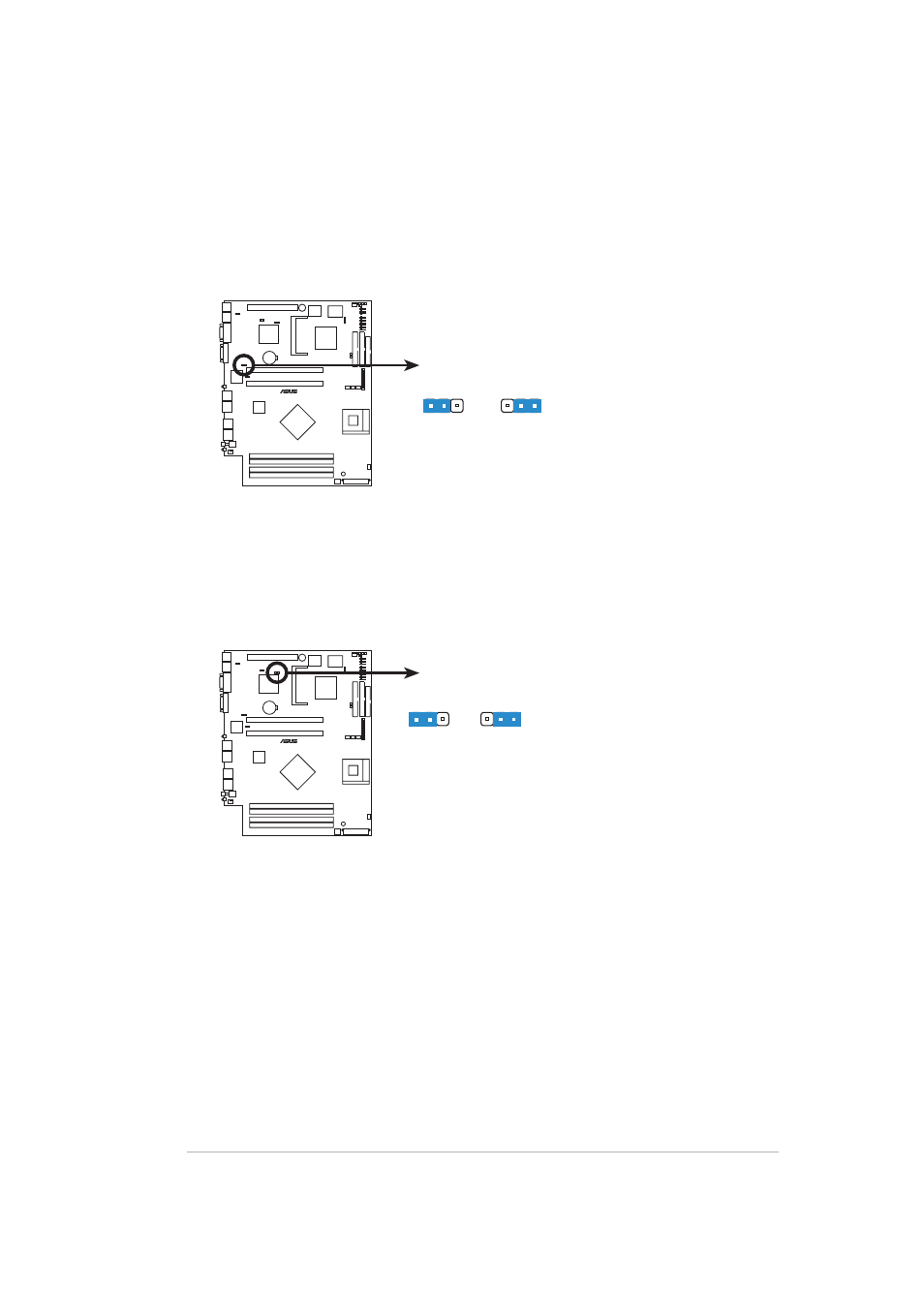

PSCH-LR VGA Jumper Setting
Enable
(Default)
Disable
VGA_EN1
2 3 1 2
4. Onboard VGA setting (3-pin VGA_EN1)
This jumper allows you to enable or disable the onboard VGA. Set this
jumper to disabled (pins 2-3) if you wish to install a VGA card.
PSCH-LR
®
PSCH-LR LAN_EN2 Setting
Enable
(Default)
Disable
LAN_EN2
2 3 1 2
3. Gigabit LAN2 controller setting (3-pin LAN_EN2)
This jumper allows you to enable or disable the Intel ® 82547GI Gigabit
LAN controller. Setting this jumper to pins 2-3 disables the Gigabit LAN
port (RJ-45) on the rear panel that corresponds to this controller.
