Chapter 1: Product introduction 1-6

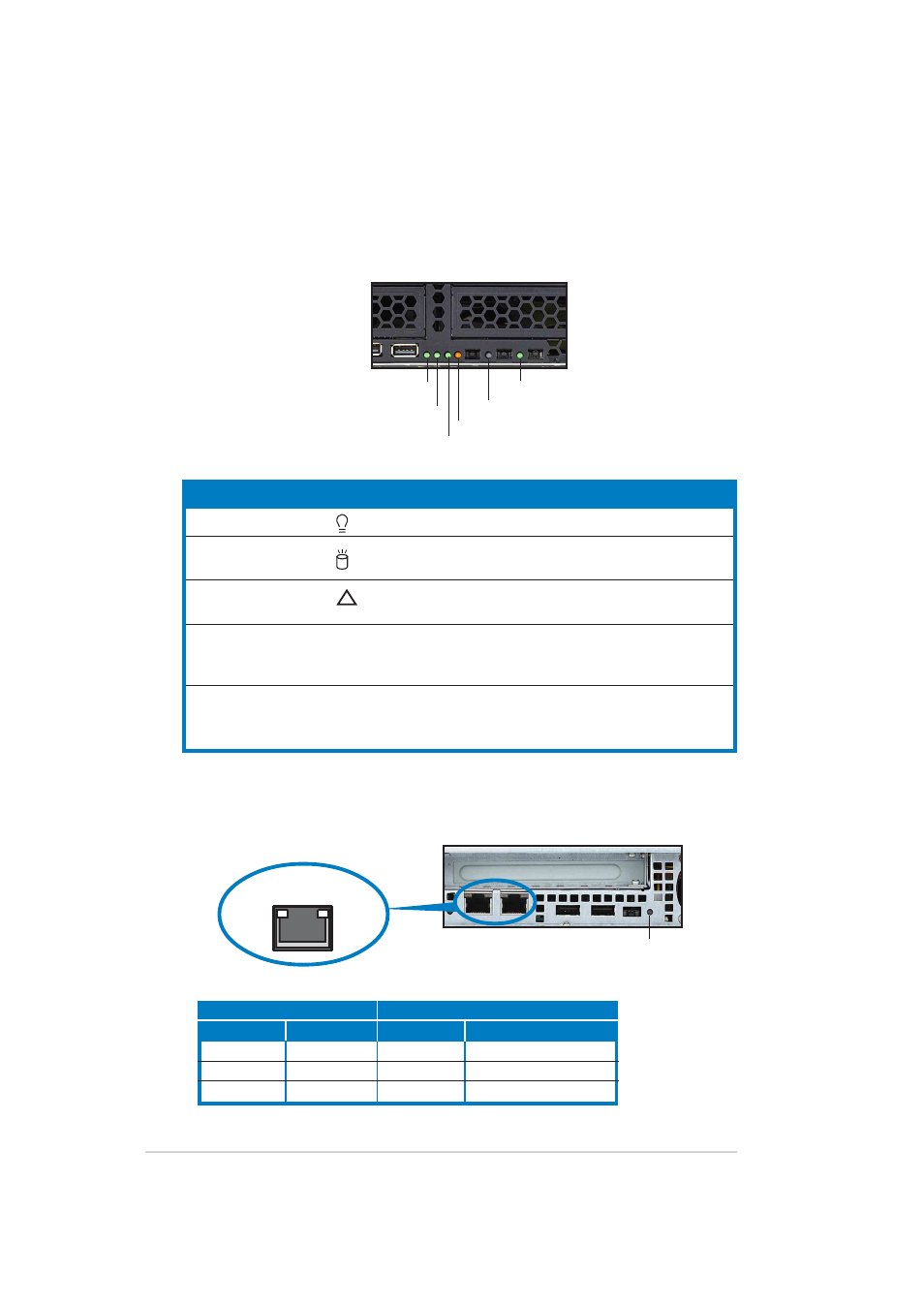

1.6 LED information
1.6.1 Front panel LEDs
LED Icon Display status Description
Power LED ON System power ON
HDD Access LED OFF No activity
Blinking Read/write data into the HDD
Message LED OFF System is normal; no incoming event
Blinking ASWM indicates a HW monitor event
Location LED OFF Normal status
ON Location switch is pressed
(Press the location switch again to turn off)
LAN LED OFF No LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
!
1.6.2 Rear panel LEDs
Message LED
LAN2 LED
HDD Access LED
LAN1 LED
Power LED
Location LED
SPEED ACT/LNK
RJ-45
Location LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10Mbps connection
Green Linked Orange 100Mbps connection
Blinking Linking Green 1000Mbps connection
