ASUS AP140R-E1 1U barebone server

2.1.2 Installing the cover

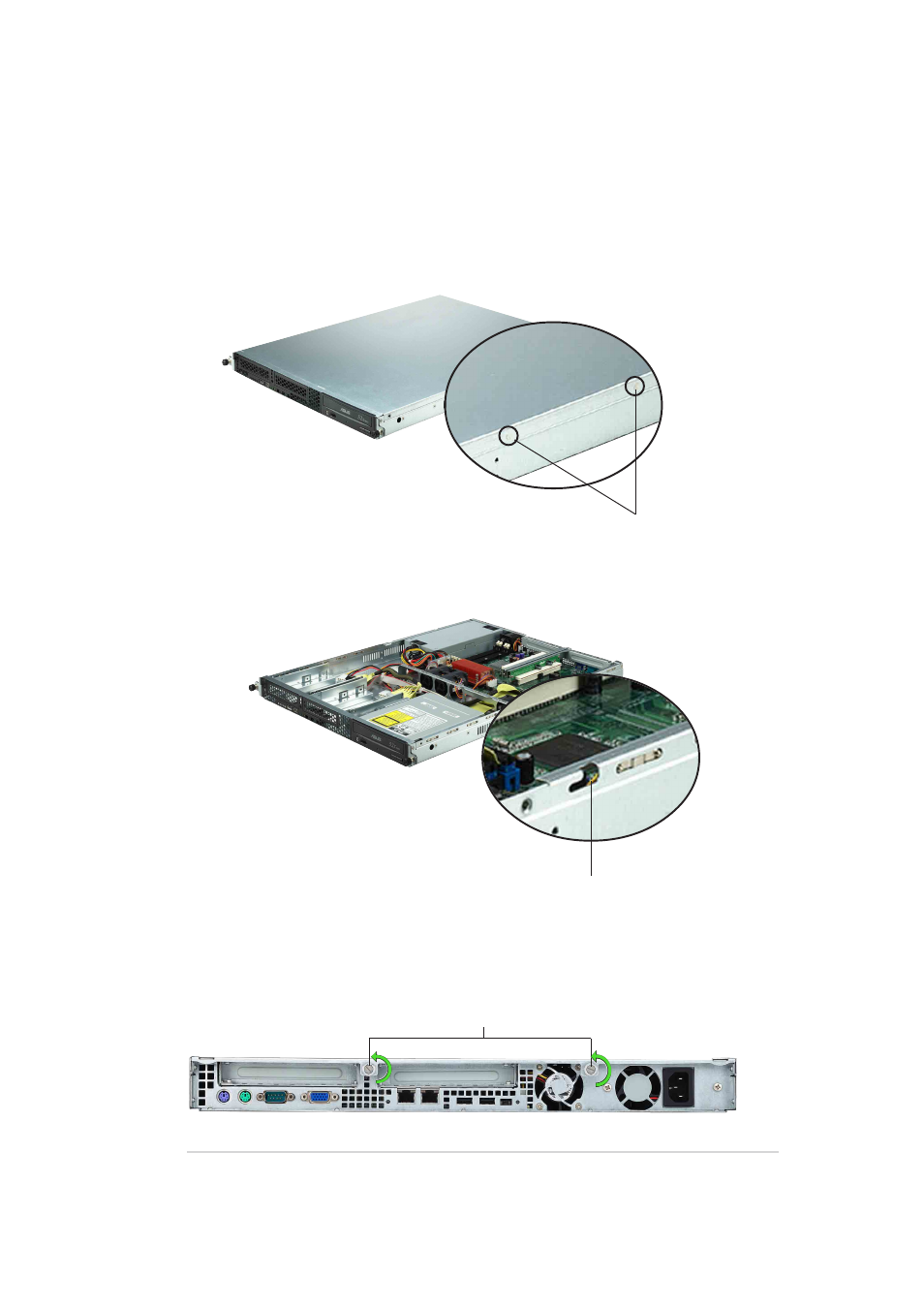

1. Position the cover on top of the chassis with the thumbscrews on the

rear, and leaving a gap of about half an inch from the front panel.

Side lock groove

Thumbscrews

3. Slide the cover toward the front until it snaps in place.

4. Tighten the thumbscrews on the rear to secure the cover.

2. Make sure that the side markings on the cover (two on each side) are

aligned to the grooves on the chassis.

Side markings
