18

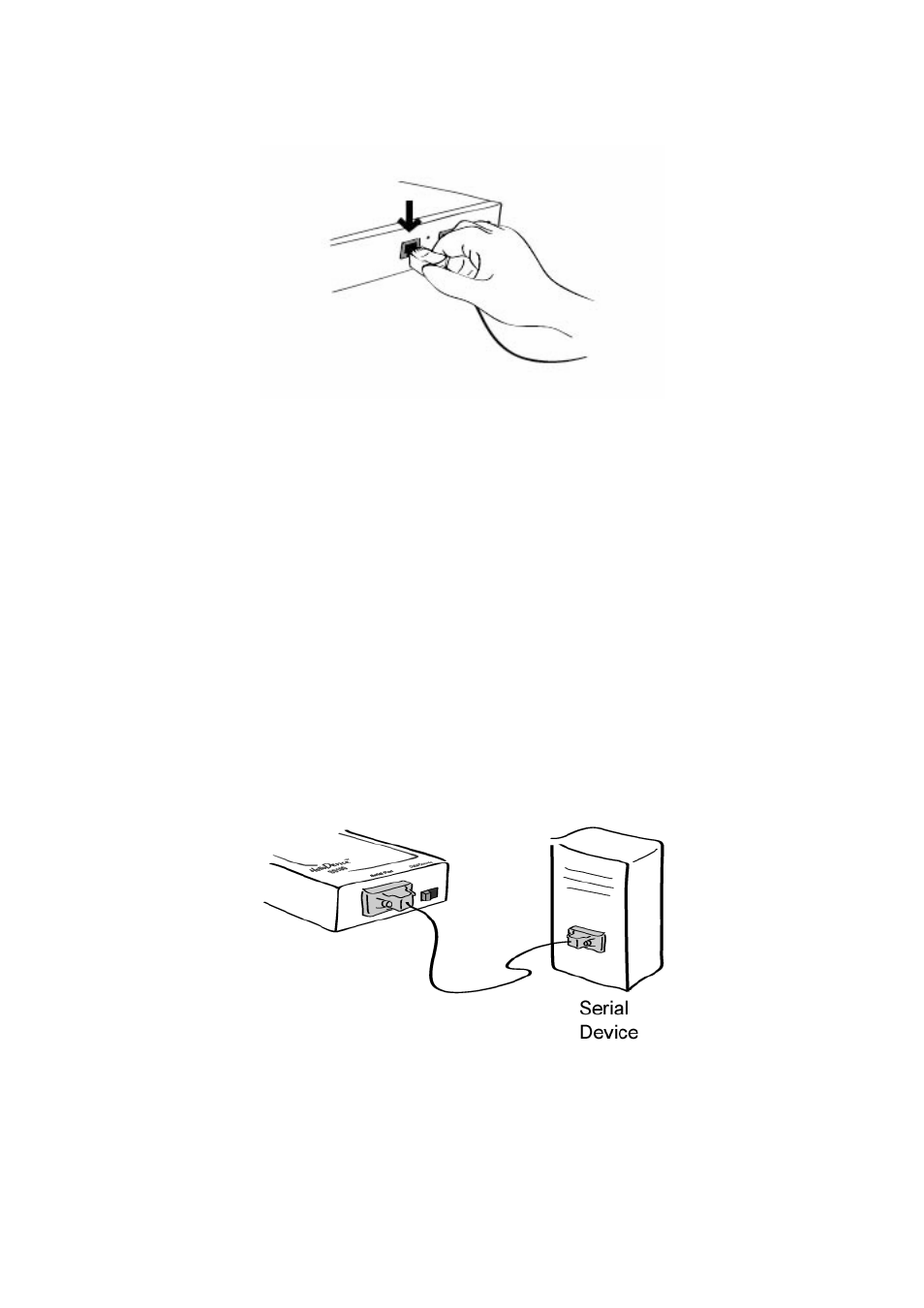

Figure 2-8 Connecting a network cable to the SS400/800
2.2.3. Connecting To The Device
Connect the console cable to the Super Series serial port. To connect to the console port of the device,
the user needs to consider the type of console port provided by the device itself. In the Super Series
cable kit package, plug-in adapters are provided for the easier connectivity to the user’s devices.
Please refer to the Appendix 1. Connections for details.
Note: If the configuration of the SS100 through the serial console is required, connect the serial cable
to the serial port of user’s computer first. And push the Data/Console switch to the Console side.
Configuration of the SS100 is discussed on Section 2.2.5.
Figure 2-9 Connecting a equipment to the SS100
