14

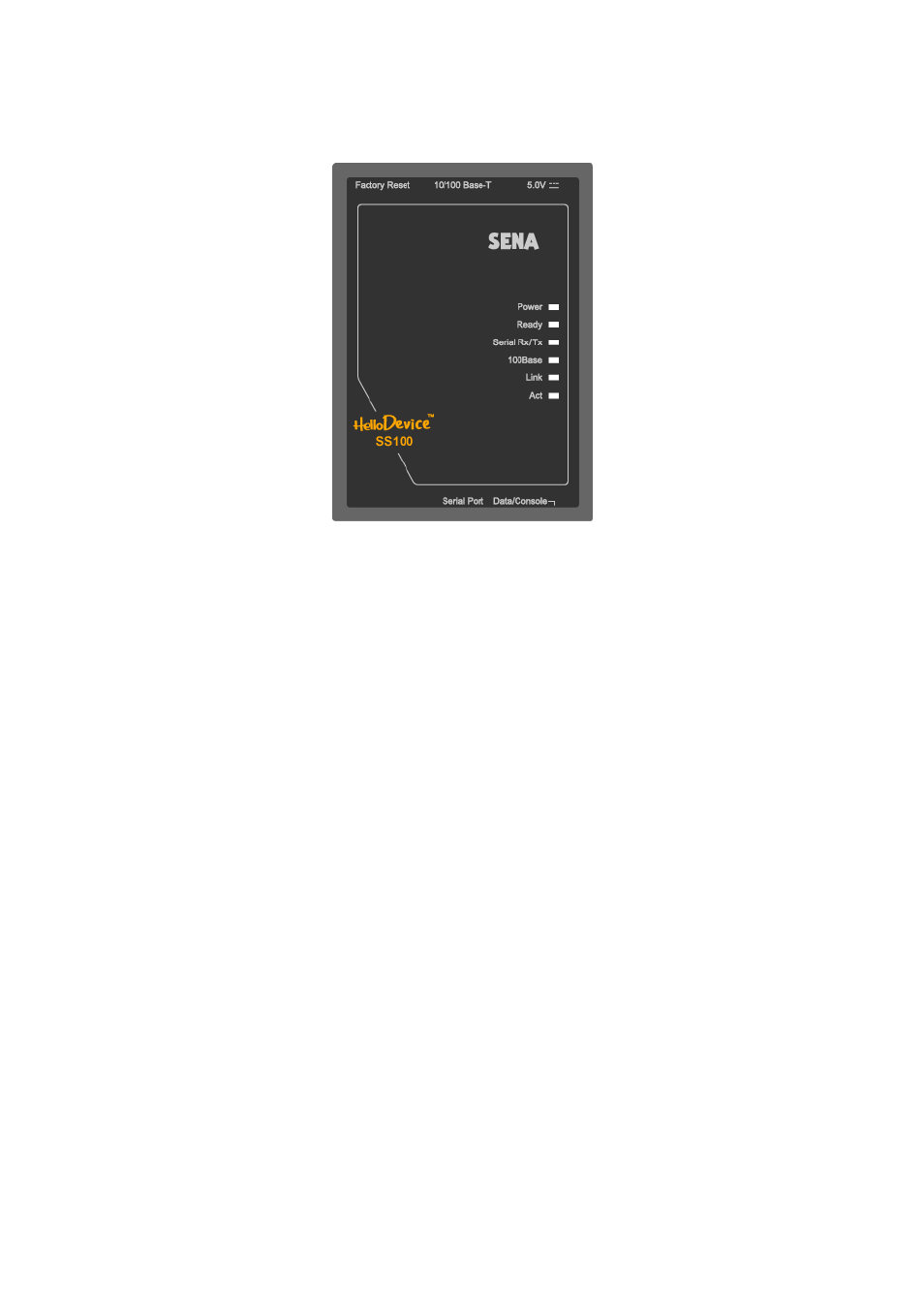

Figure 2-1 The panel layout of the SS100
2.1.2. SS110 Panel Layout
The SS 110/400/800 has three groups of LED indicator lamps to display the status, as shown in
Figure 2-2 and Figure 2-3 (i.e. System, Ethernet and Serial ports). The first three lamps on the left side
indicate Power, Ready and PC Card interface. The next three lamps are for Ethernet 100Mbps, Link
and Act. Next lamp indicates Receive and Transmit of the serial port.
Table 2-2 describes the function of each LED indicator lamp.
