17

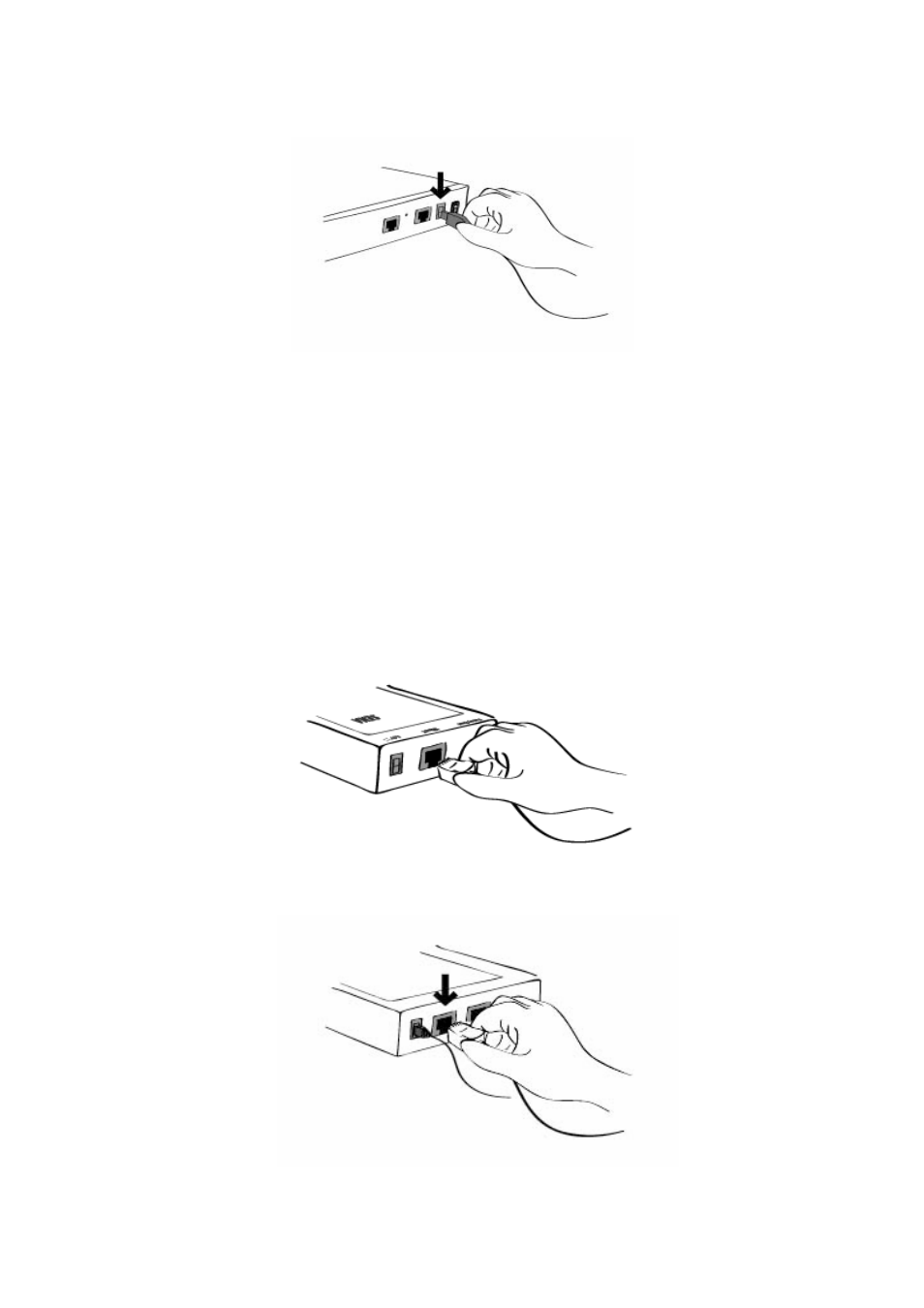

Figure 2-5 Connecting the power to the SS400/800
2.2.2. Connecting To The Network
Plug one end of the Ethernet cable to the Super Series Ethernet port. The other end of the Ethernet
cable should be connected to a network port. If the cable is properly connected, the Super Series will
have a valid connection to the Ethernet network. This will be indicated by:
The [Link] lamp will light up green.
The [Act] lamp will blink to indicate incoming/outgoing Ethernet packets
The [100Mbps] lamp will light up green if the Super Series is connected to 100Base-TX network
The [100Mbps] lamp will not turn on if the current network connection is 10Base-T.
Figure 2-6 Connecting a network cable to the SS100
Figure 2-7 Connecting a network cable to the SS110
