A/T8xC5121

4164G–SCR–07/06

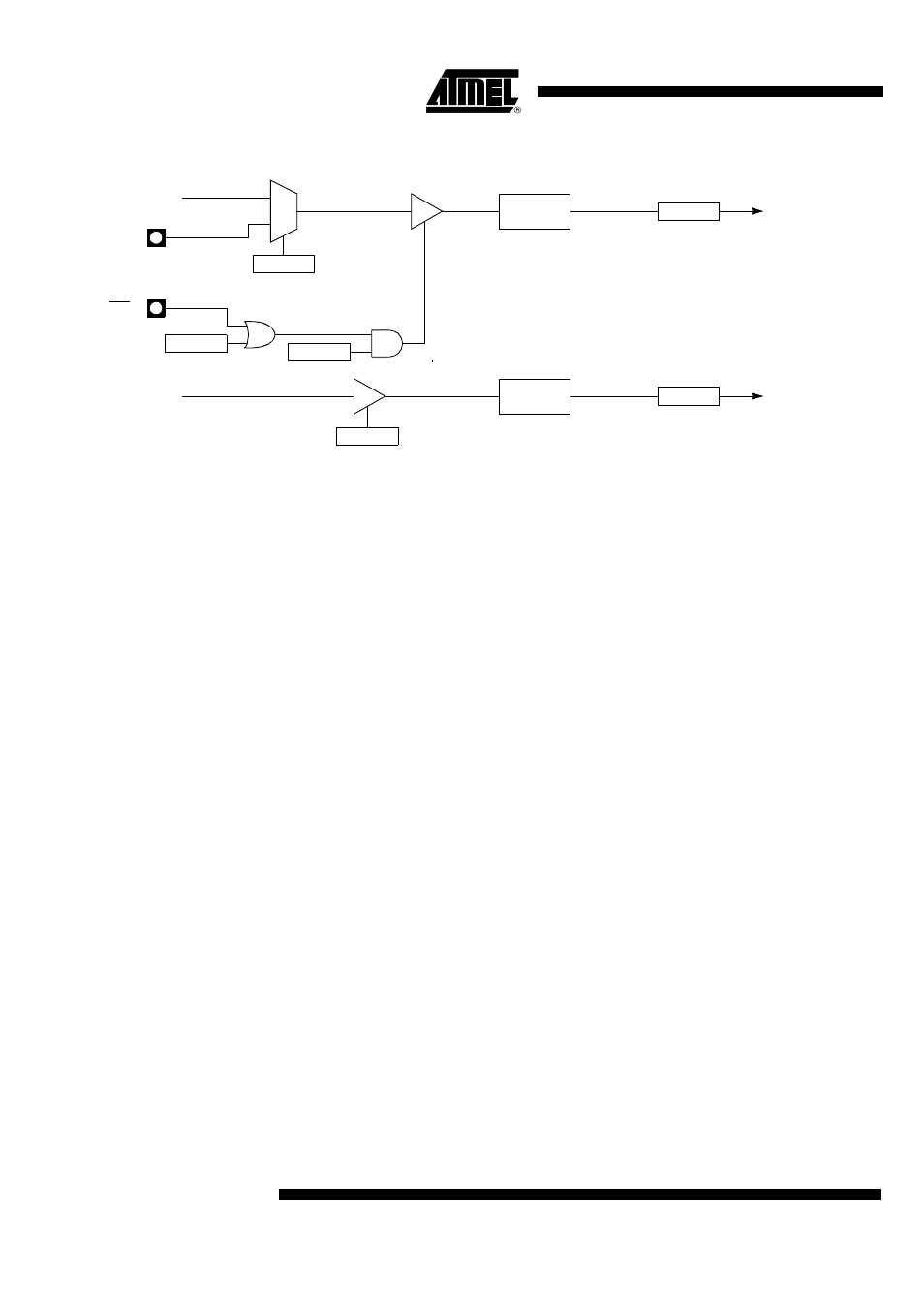

Figure 31. Timer 0/Counter 0 in Mode 3: Two 8-bit Counters

TR0

TCON.4

TF0

TCON.5

INT0

0

1

GATE0

TMOD.3

Overflow

Timer 0
Interrupt
Request

C/T0#

TMOD.2

TL0

(8 bits)

TR1

TCON.6

TH0

(8 bits)

TF1

TCON.7

Overflow

Timer 1
Interrupt
Request

T0

FCLK_Periph

FCLK_Periph
