60 VEGAPULS 64 and 81

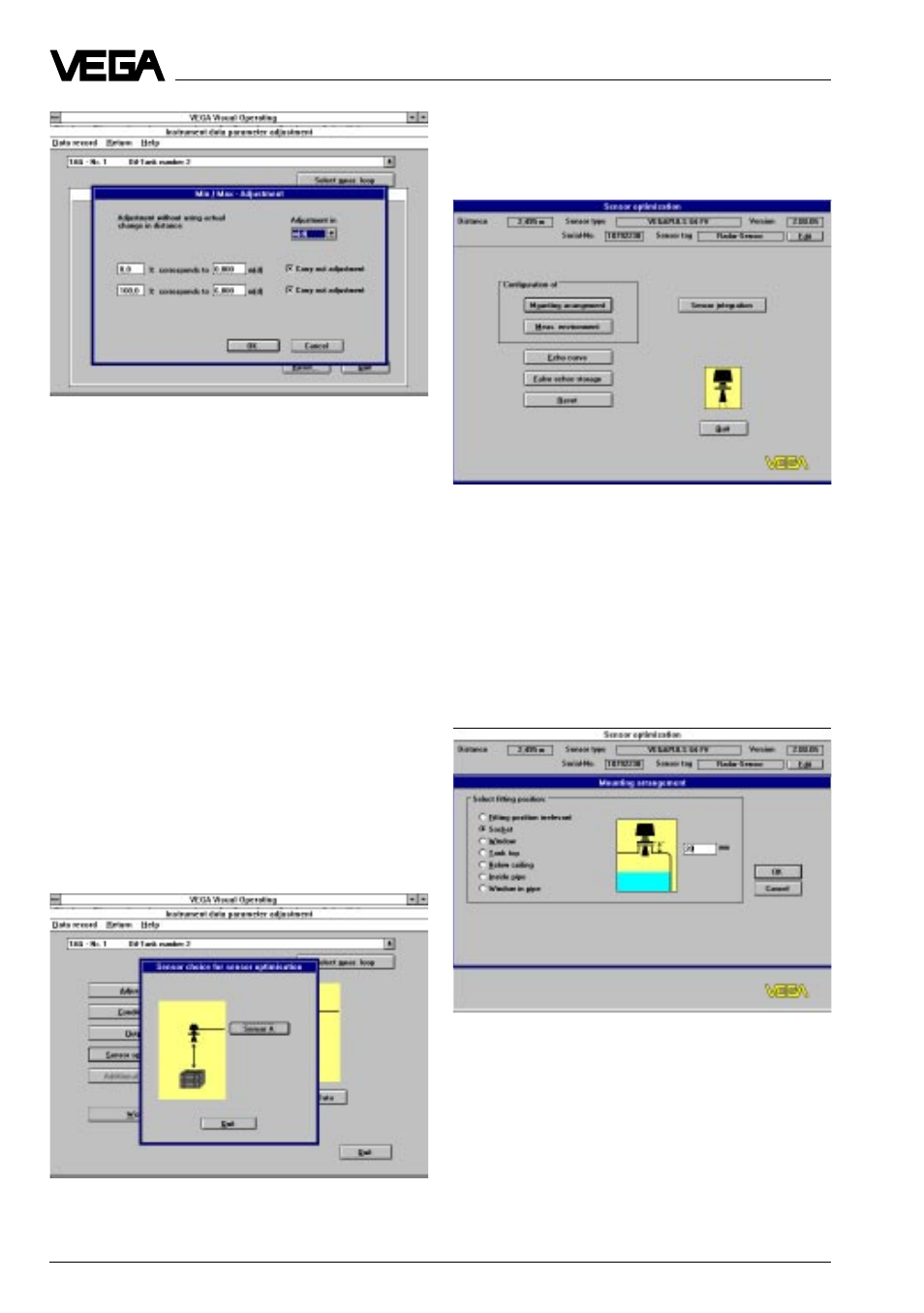

Set-up: Adjustment with PC
Mounting arrangement
• Choose in the menu picture “ Sensor optimi-
zation“ the menu “Mounting arrangement“.
The menu window “ Mounting arrangement“
appears.
• Confirm the adjustment carried out with
“ OK“.
After the data transmission the window “ Ad-
justment“ appears again.
• Click to “ Quit“.
Parameter adjustment / Sensor
optimization
• Click to the button “ Sensor optimization“.
The window “ Sensor choice for sensor optimi-
zation“ appears. Here you have just one
choice: “ Sensor A“. This window may seem
unimportant, however if e.g. digital pressure
transmitters are adjusted with the adjustment
software VVO, further options will be available
in this window.
Now a data transmission of a few seconds is
carried out and the menu picture “
Sensor
optimization“ is then displayed.
• Choose the mounting arrangement corre-
sponding to your measurement loop. Note
the instructions in chapter “4 Mounting and
installation“.
• Confirm the selected installation place with
“ OK“.
Again the menu window “ Sensor optimization“
appears.
• Click now to “ Sensor A“.
