VEGAPULS 64 and 81 57
Set-up: Adjustment with PC
The signal conditioning instrument VEGAMET

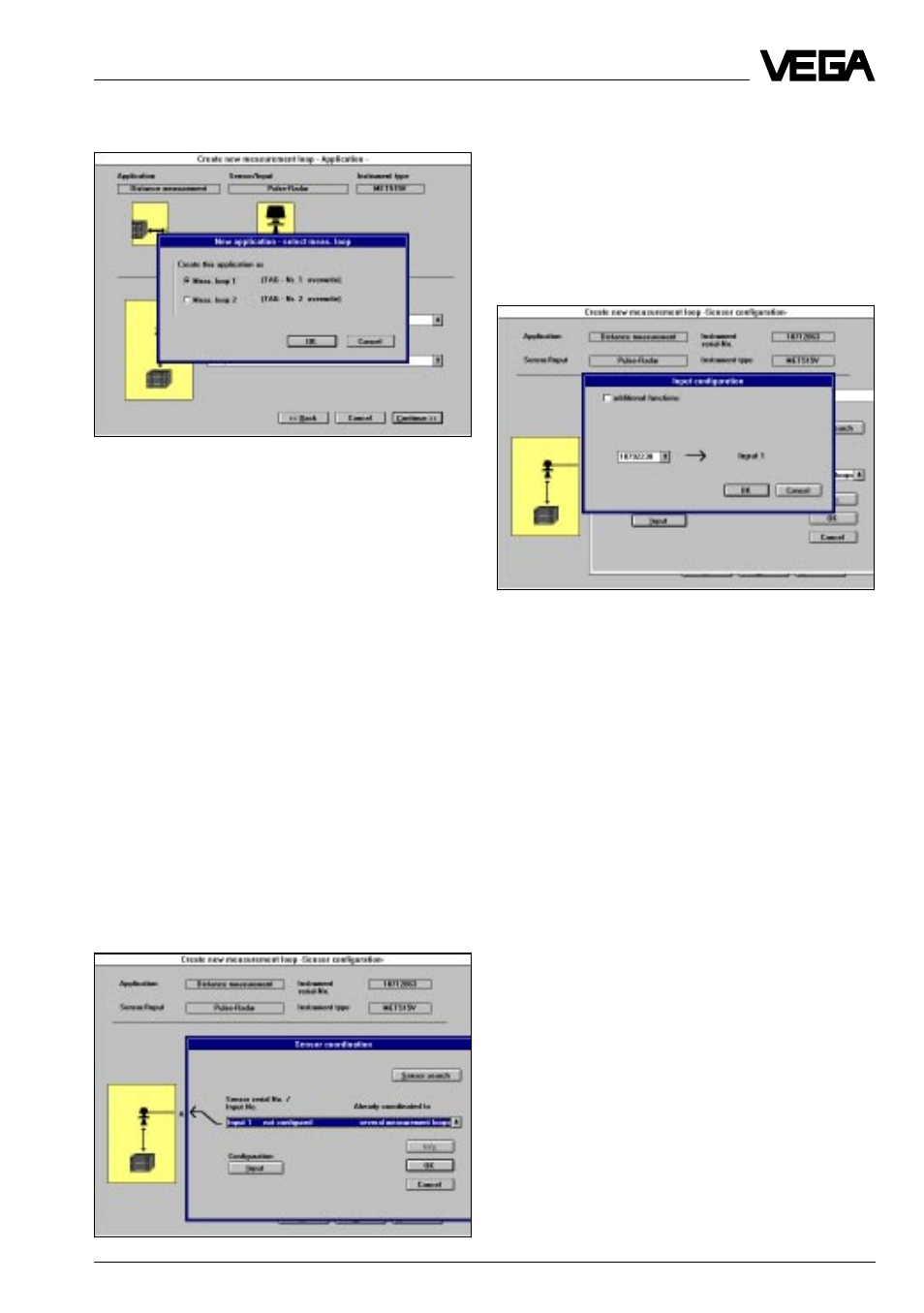

has two inputs. In the picture “ New application
– select measuring loop“ you co-ordinate the
radar sensor to an input (TAG) in the con-
nected signal conditioning instrument. The
inputs are called “ measuring loop 1 and meas-
uring loop 2“. However this is only required for
sensors with digital signal output.
• Click to “ OK“.
If a measurement loop is already created in
the signal conditioning instrument your are
informed that the existing measurement loop
will be overwritten.
The following data transmission lasts some
minutes.
• Click to “ Sensor co-ordination“.
You enter the menu “ Sensor co-ordination“.
• Click to “ Input“.
The available sensor numbers for selection
and co-ordination to the input are offered.
• Select the sensor which should be co-
ordinated to the input.
When you cross additional functions you have
the possibility, e.g. to co-ordinate to the input
of the actual signal conditioning instrument
also the input of the other signal conditioning
instrument.
It is hence possible, to process a sensor con-
nected in another signal conditioning instru-
ment in the actual signal conditioning instru-
ment.
However you have co-ordinated the sensor
which is connected to the actual signal condi-
tioning instrument also to the actual signal
conditioning instrument for processing which
is usual.
• Confirm with “ OK“ and the input with the co-
ordinated sensor number is displayed.
• Confirm with “ OK“.
• Click to “ Continue“.
• Click again to “ Continue“.
