Wiring diagram for 12v led strips – Velleman VMB1LED User Manual
Page 8
VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
8
USE WITHOUT VELBUS
The dimmer module can be used in combination with a direct current power supply (12 or 24V) to dim LED strips
(12 or 24V).
The function of the connected pushbuttons is set via the ‘Mode’ rotary switch.
The switch-off time (or dim time in slowly on/off dimmer mode) is set via the ‘Time’ rotary switch.
The address must be set to ‘00’ to disable communication with the Velbus system.

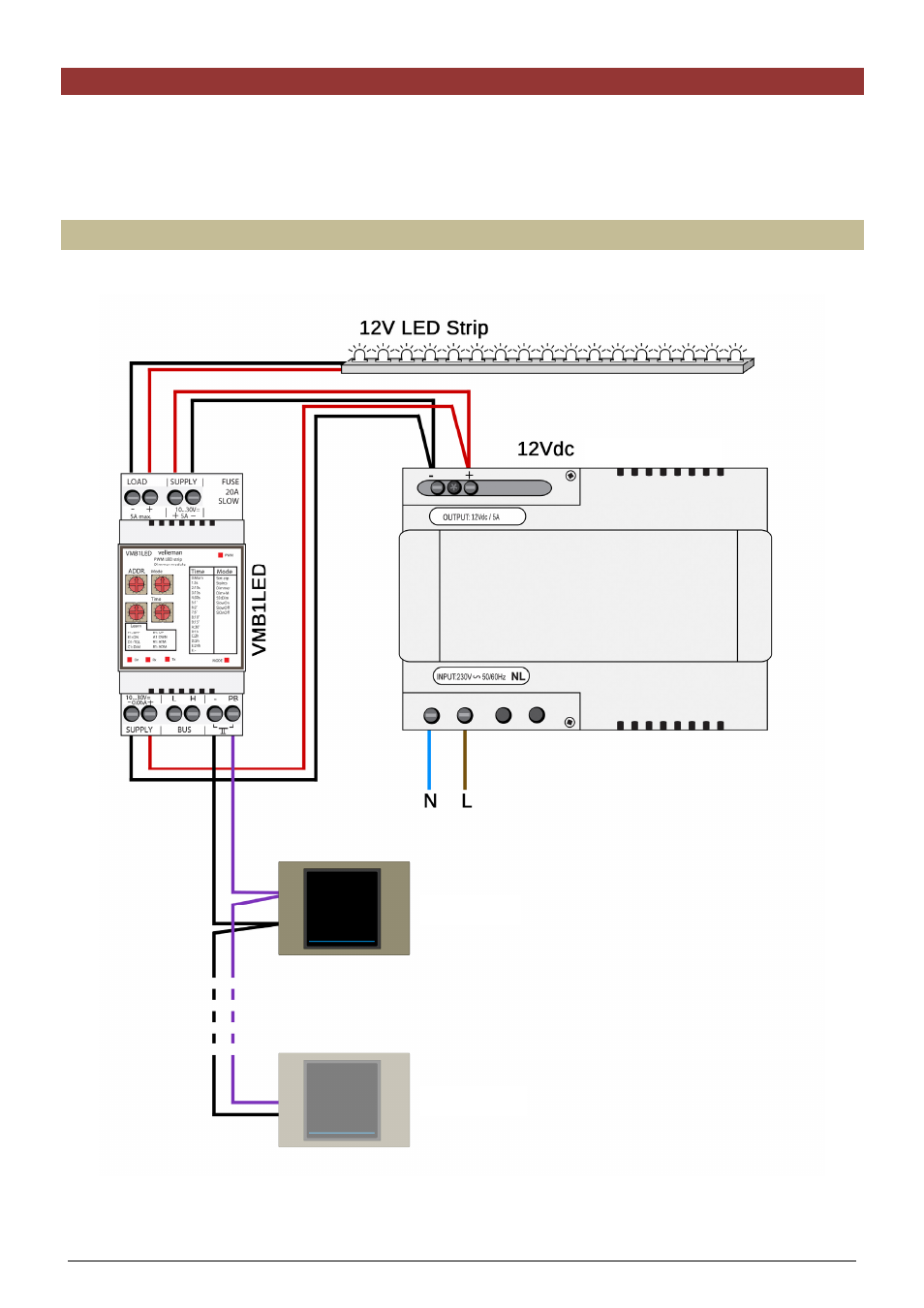

Wiring diagram for 12V LED strips
Use a 12V direct current power supply for the LED strips.
power supply
pushbutton
pushbutton
