VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
7

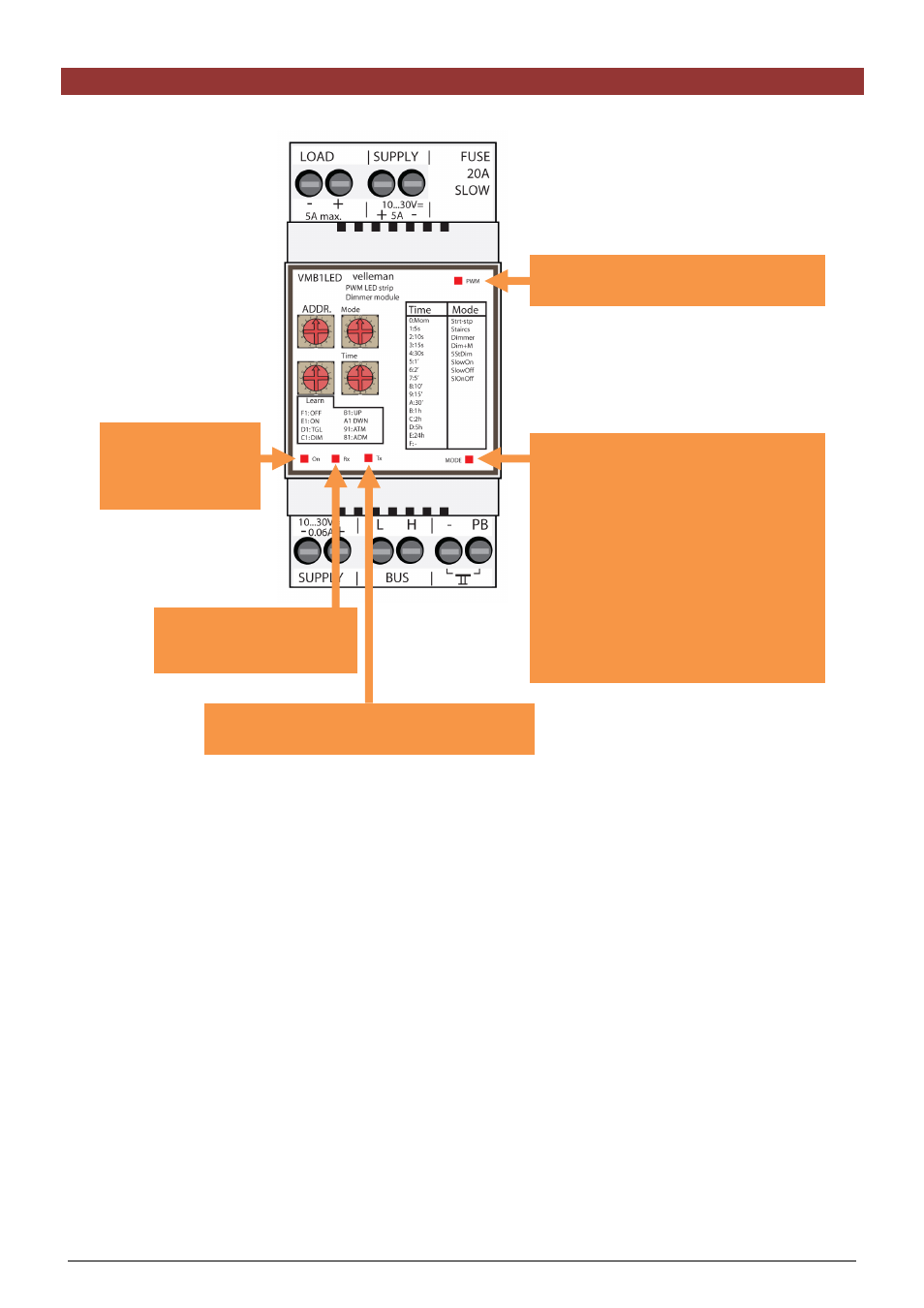

LED INDICATION
Mode LED:
• off when LED strip is off
• on when LED strip lit with steady
brightness
• flashes fast while brighness of LED
strip changes
• flashes slow when switch-off delay
is active
• flashes very fast when dimmer
module is in learning mode
• flashes 2x short upon detecting a
communication error
PWM LED:
brightness indication for dim position
On LED:
on when input
power supply is
present
Rx LED:
on when receiving Velbus
data
Tx LED:
on when transmitting Velbus data
