Setting the operating mode

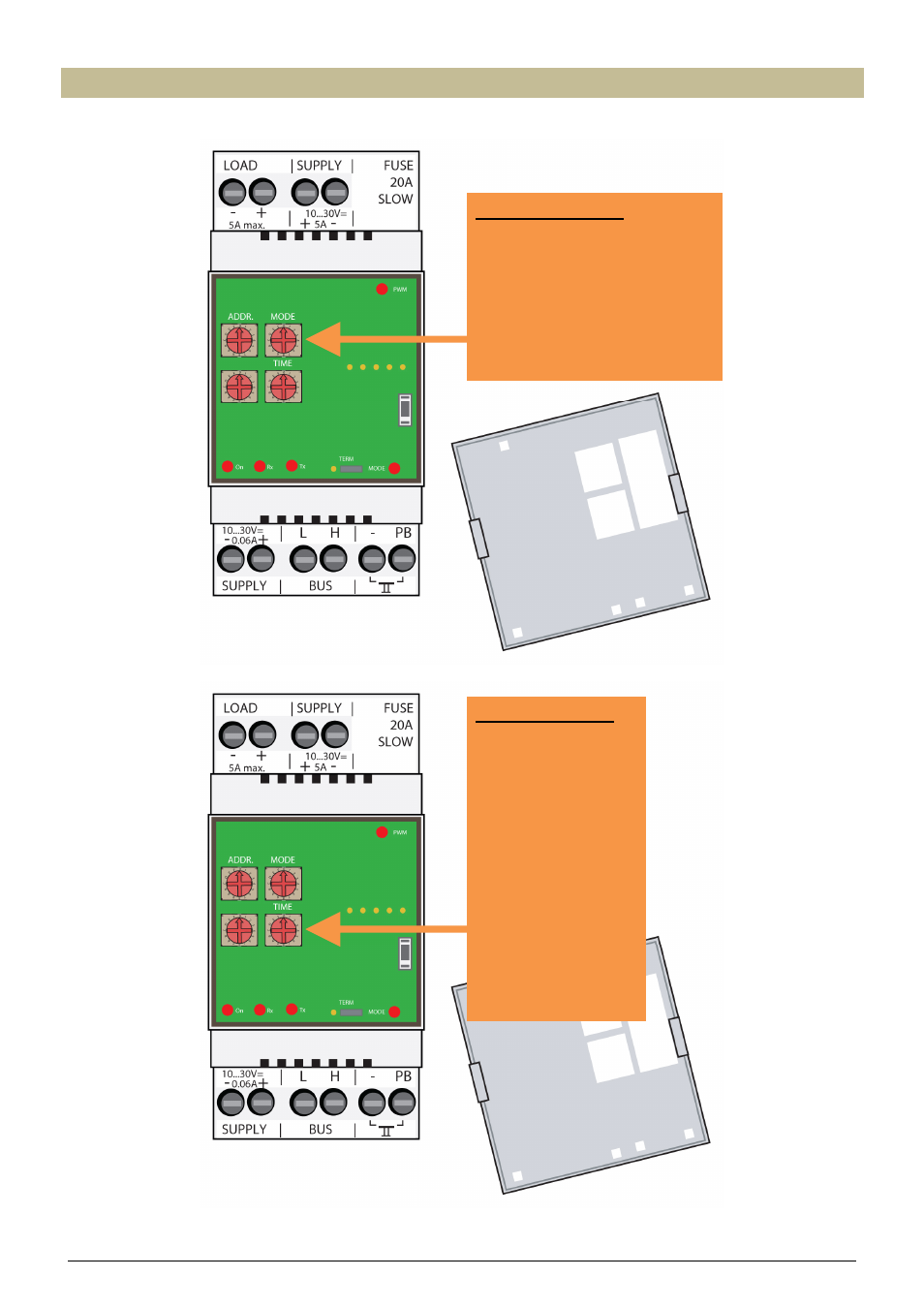

The function of the pushbuttons is determined by the position of the ‘Mode’ and ‘Time’ rotary switches.

TIME rotary switch
0 : instant control
1 : 5 seconds
2 : 10 seconds
3 : 15 seconds
4 : 30 seconds
5 : 1 minute
6 : 2 minutes
7 : 5 minutes
8 : 10 minutes
9 : 15 minutes
A : 30 minutes
B : 1 hour
C : 2 hours
D : 5 hours
E : 24 hours
F : -

MODE rotary switch
0 : start/stop timer
1 : staircase lighting timer
2 : dimmer
3 : dimmer with memory function
4 : multiple position dimmer
5 : slowly on dimmer
6 : slowly off dimmer
7 : slowly on/off dimmer
