VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2

Linking pushbuttons to increase brightness

Push and hold these pushbuttons will increase the brightness of the LED strip.
A short press on these pushbuttons will light up the LED strip to full brightness.
In our example, we will use the upper right button to increase the brightness of the LED strip.

Remember the address of the dimmer module to reinstate it later on.

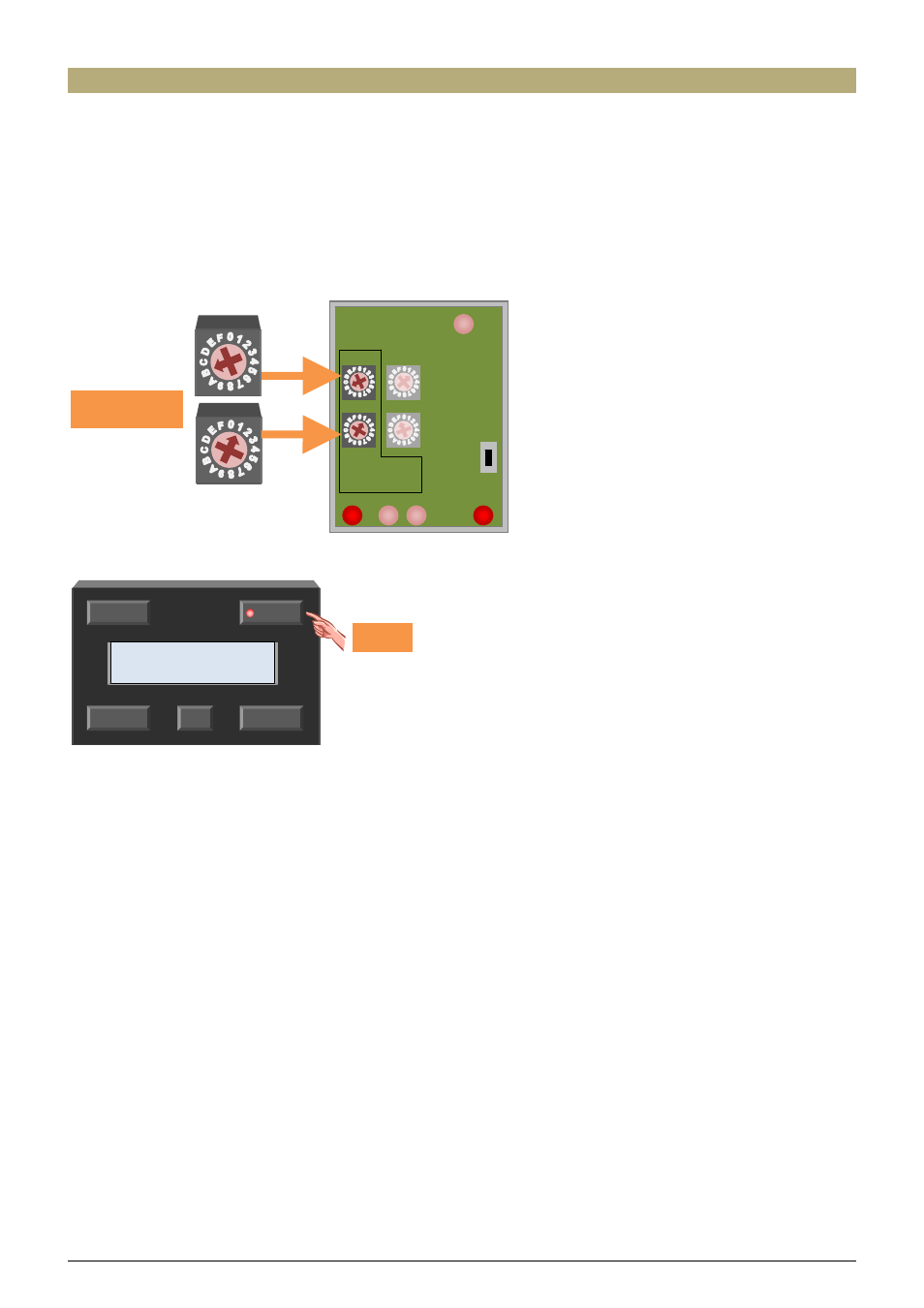

Set the address of the dimmer module to ‘B1’. The MODE LED on the dimmer module and the indication LED(s)
of the already linked dimming pushbutton(s) will flash (fast). This way it can easily be determined which
pushbuttons already have the dimming function assigned.

Press and hold the ‘Dim+’ pushbutton for at least 1 second until its indication LED starts flashing.

Repeat the previous step in case other pushbuttons on the Velbus system must be linked to the same dimming
function.
Remark:

• In case the indication LED of the pushbutton that you would like to link to the dimming function is not

flashing, the maximum number of dimming pushbuttons is reached.

• Unlinking a pushbutton is done by pressing and holding the pushbutton until its indication LED switches off.

Reinstate the address of the dimmer module when finished.

1 sec

watch TV Dim+
reading Dim-

ADDR = B1

ADDR

Mode

Time

PWM

Learn
F1: OFF
E1: ON
D1: TGL
C1: DIM

B1: UP
A1: DWN
91: ATM
81: ADM

MODE

MAN(CLR)
