VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
15

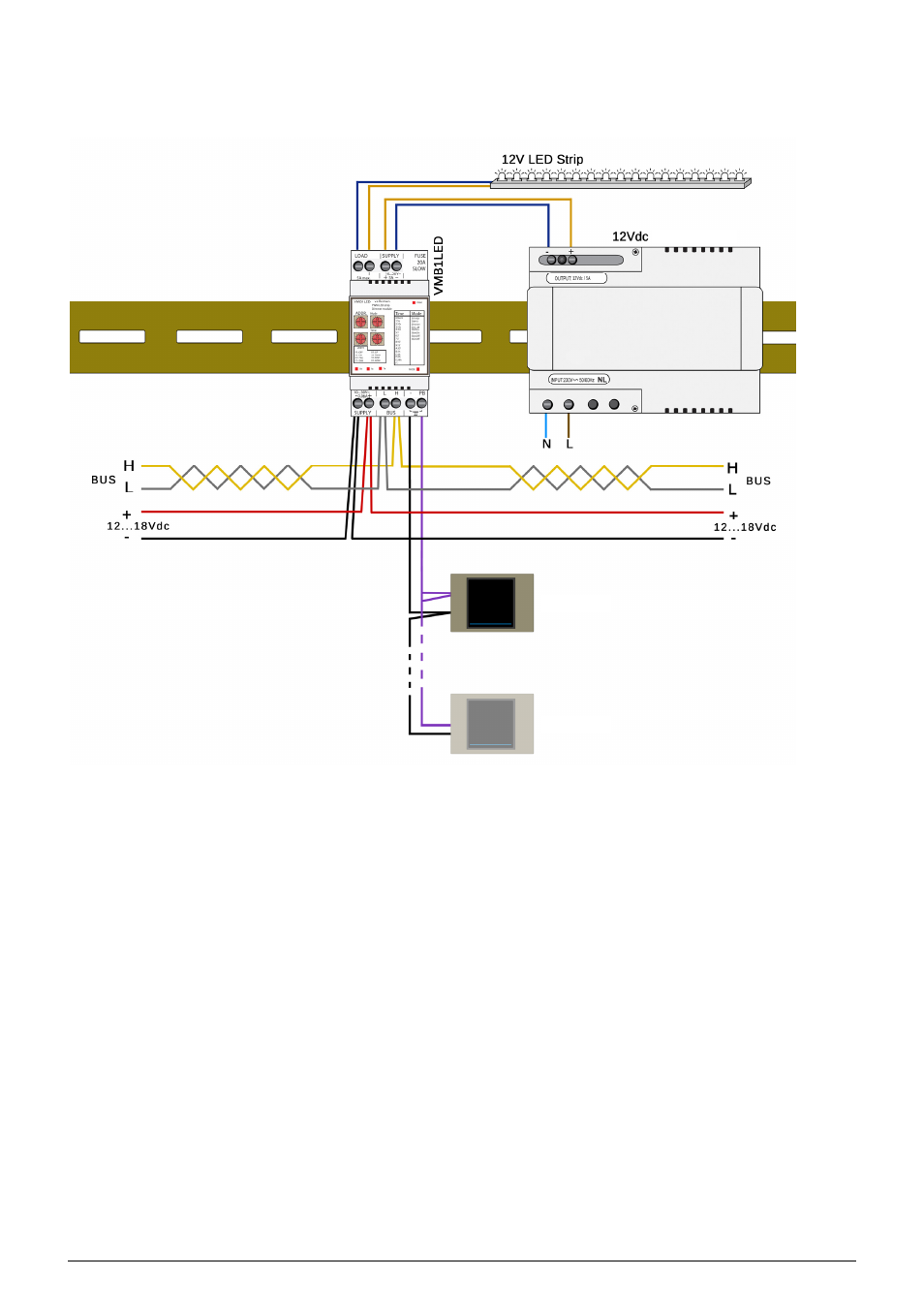

It is also possible to use the Velbus in combination with pushbuttons that are directly connected to the pushbutton
input of the dimmer module.
The function of the directly connected pushbuttons is set via the ‘Mode’ and ‘Time’ rotary switches.
power supply
pushbutton
pushbutton
