VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
22
Linking switch-on pushbuttons
With these pushbuttons the LED strip is switched on to full brightness.
In our example, we will use the upper right button on the second page of the control panel to switch on the LED
strip to full brightness.
Remember the address of the dimmer module to reinstate it later on.

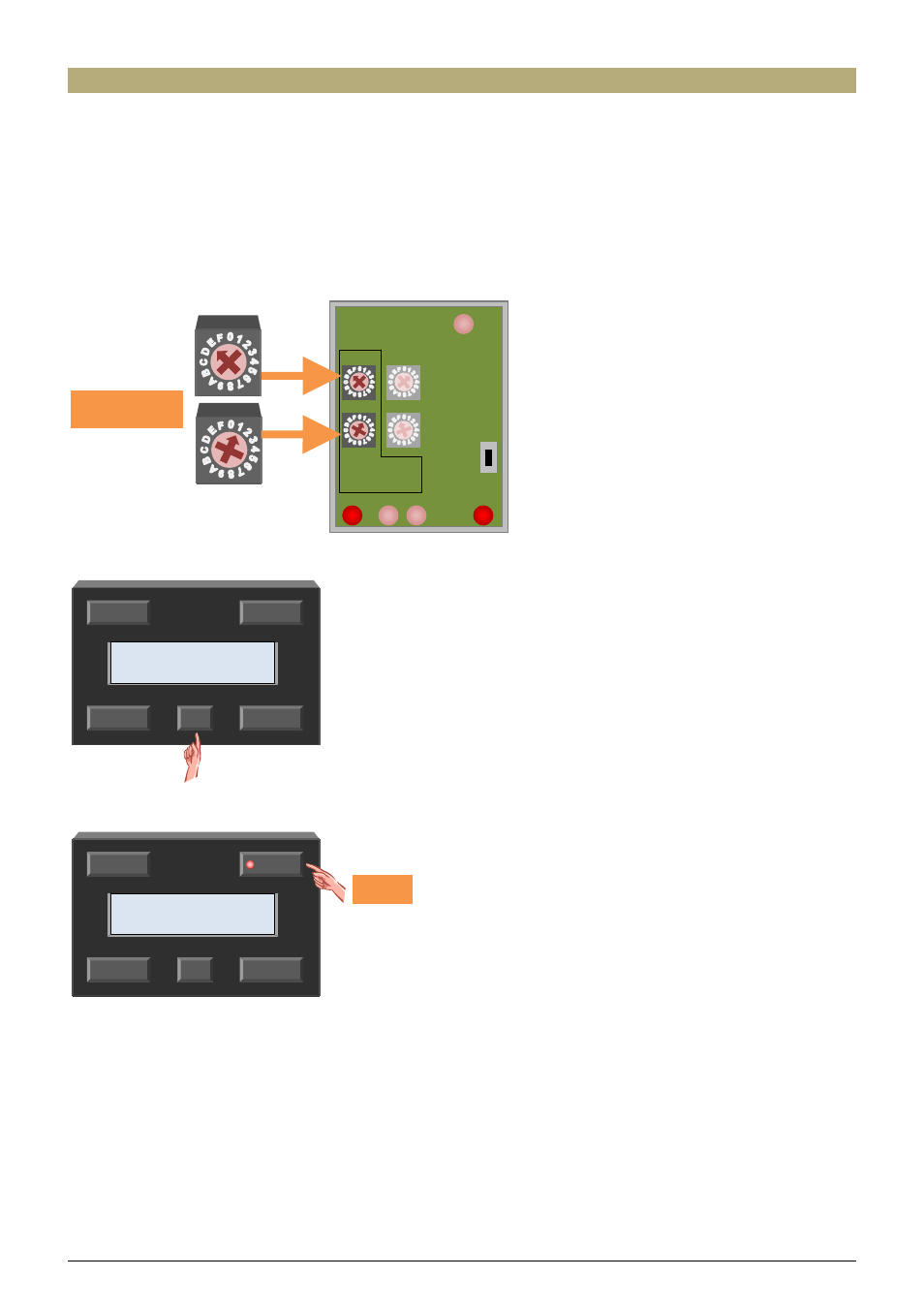

Set the address of the dimmer module to ‘E1’. The MODE LED on the dimmer module and the indication LED(s)
of the already linked switch-on pushbutton(s) will flash (fast). This way it can easily be determined which
pushbuttons already have the switch-on function assigned.
Select the second page of the control panel by pressing on the small pushbutton.
Press and hold the ‘On’ pushbutton for at least 1 second until its indication LED starts flashing.
Repeat the previous step in case other pushbuttons on the Velbus system must be linked to the switch-on
function.
Remark:
• In case the indication LED of the pushbutton that you would like to link to the switch-on function is not
flashing, the maximum number of switch-on pushbuttons is reached.
• Unlinking a pushbutton is done by pressing and holding the pushbutton until its indication LED switches off.
Reinstate the address of the dimmer module when finished.
1 sec
Dimming On
On/Off Off
ADDR = E1
ADDR Mode
Time
PWM
Learn
F1: OFF
E1: ON
D1: TGL
C1: DIM
B1: UP
A1: DWN
91: ATM
81: ADM
MODE
Tx Rx ON
MAN(CLR)
Dimming On
On/Off Off
