Linking dimming pushbuttons

With these pushbuttons the LED strip can be dimmed. The function of the dimming push buttons is determined by
the settings of the ‘Mode’ and ‘Time’ rotary switches (see § Setting the operating mode).
In our example, we will use the upper left button on the second page of the control panel to dim the LED strip.

Remember the address of the dimmer module to reinstate it later on.

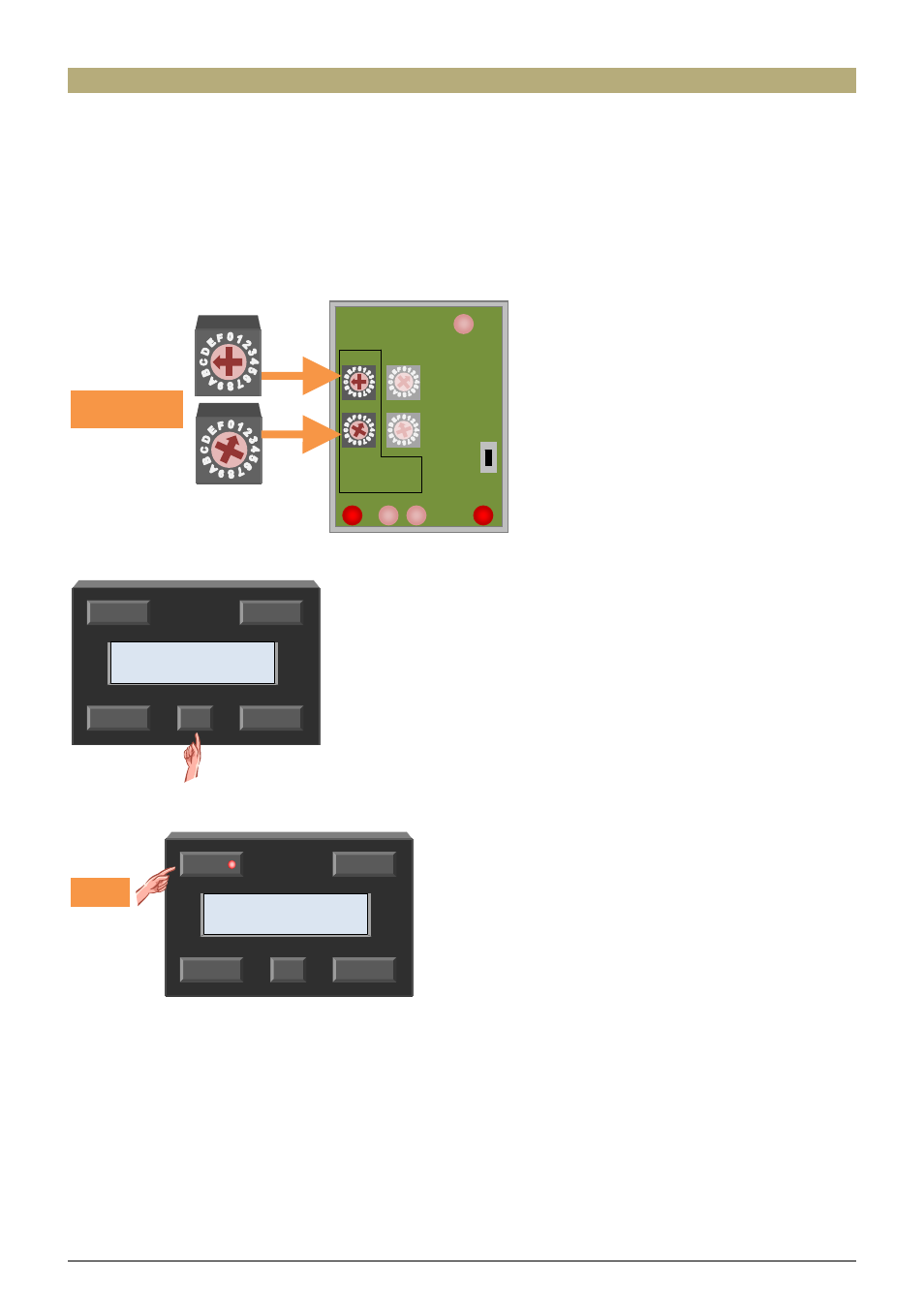

Set the address of the dimmer module to ‘C1’. The MODE LED on the dimmer module and the indication LED(s)
of the already linked dimming pushbutton(s) will flash (fast). This way it can easily be determined which
pushbuttons already have dimming function assigned.

Select the second page of the control panel by pressing on the small pushbutton.

Press and hold the ‘dimming’ pushbutton for at least 1 second until its indication LED starts flashing.

Repeat the previous step in case other pushbuttons on the Velbus system must be linked to the dimming function.
Remark:

• In case the indication LED of the pushbutton that you would like to link to the dimming function is not

flashing, the maximum number of dimming pushbuttons is reached.

• Unlinking a pushbutton is done by pressing and holding the pushbutton until its indication LED switches off.

Reinstate the address of the dimmer module when finished.
