VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2

Deleting assigned pushbuttons for a certain function

Remember the address of the dimmer module to reinstate it later on.

Set the address of the dimmer module to the function for which the pushbuttons must be deleted.

Address Operating function

OFF: to delete pushbuttons that switch off the LED strip

ON:

to delete pushbuttons that switch on the LED strip (full brightness)

TGL: to delete pushbuttons that switch the LED strip on (full brightness) or off

DIM:

to delete pushbuttons/sliding controls that activate the selected mode
on the module

UP:

to delete pushbuttons that increase the LED strip brightness

DWN: to delete pushbuttons that decrease the LED strip brightness

ATM: to delete pushbuttons that light op the LED strip at a certain brightness

(atmosphere)

The MODE LED on the dimmer module and the indication LEDs of the pushbuttons that are linked to the selected
function will flash (fast).

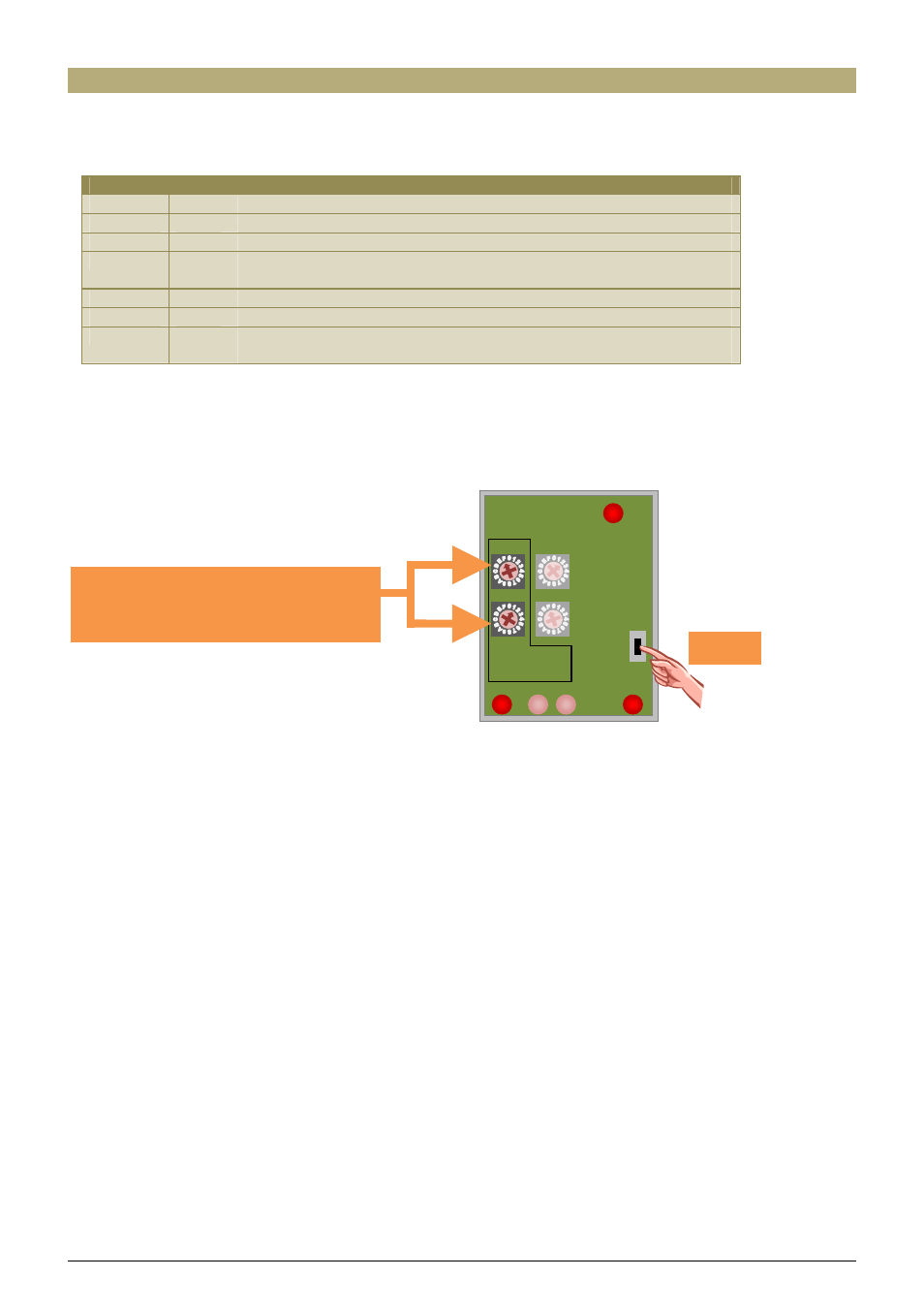

To delete all pushbuttons that are linked to the selected function, press and hold the manual control on the
dimmer module until the PWM LED lights up and the indication LEDs on the linked buttons switch off.

Reinstate the original address of the dimmer module.

1 sec

Set ADDR to function for which to
delete pushbuttons (see table
above)

ADDR

Mode

Time

PWM

Learn
F1: OFF
E1: ON
D1: TGL
C1: DIM

B1: UP
A1: DWN
91: ATM
81: ADM

MODE

MAN(CLR)
