VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
20
In the following example a control panel VMB4PD is used from which 8 controls are linked to a dimmer module.
• The upper and lower left buttons are used to create atmospheres that are used when watching
television or reading a book.
• The upper right button is used to increase LED strip brightness.
• The lower right button is used to decrease LED strip brightness.
On the second page:
• the upper left button is used to change the brightness of the LED strip (dimming).
• the lower left button is used to switch the LED strip on or off.
• the upper right button is used to switch the LED strip to full brightness.
• the lower right button is used to switch off the LED strip.

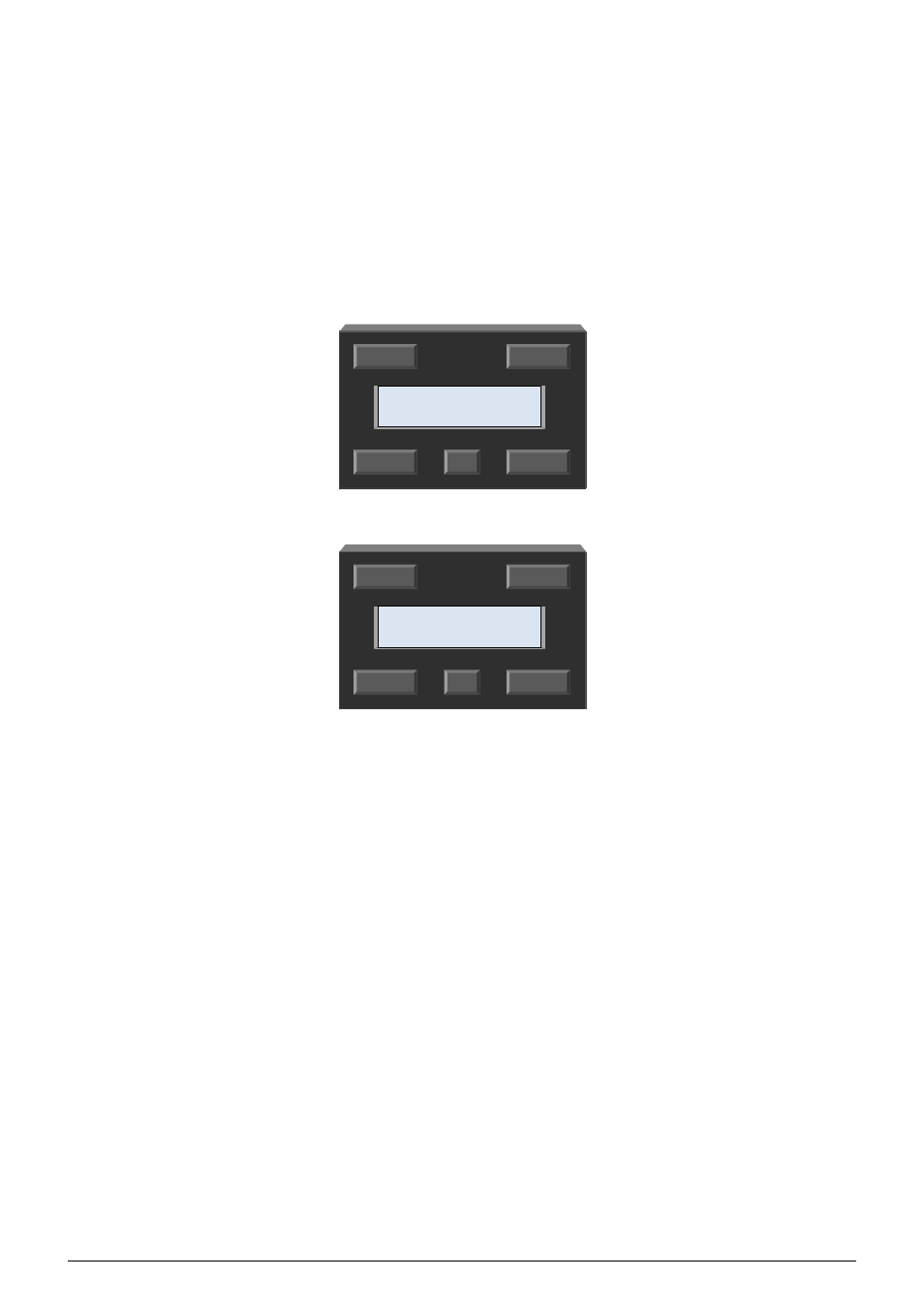

The labels on the display for the first page are as follows (see manual VMB4PD):
The labels on the display for the second page are as follows:
Dimming On
On/Off Off
watch TV Dim+
reading Dim-
