VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2

Creating atmospheres

These pushbuttons can be linked to a certain brightness to create different atmospheres.
In this example we will use the upper left button of the control panel to create an ideal atmosphere for watching
television (low brightness) while the lower left button will be used to create an atmosphere to read a book (high
brightness).

Remember the address of the dimmer module to reinstate it later on.

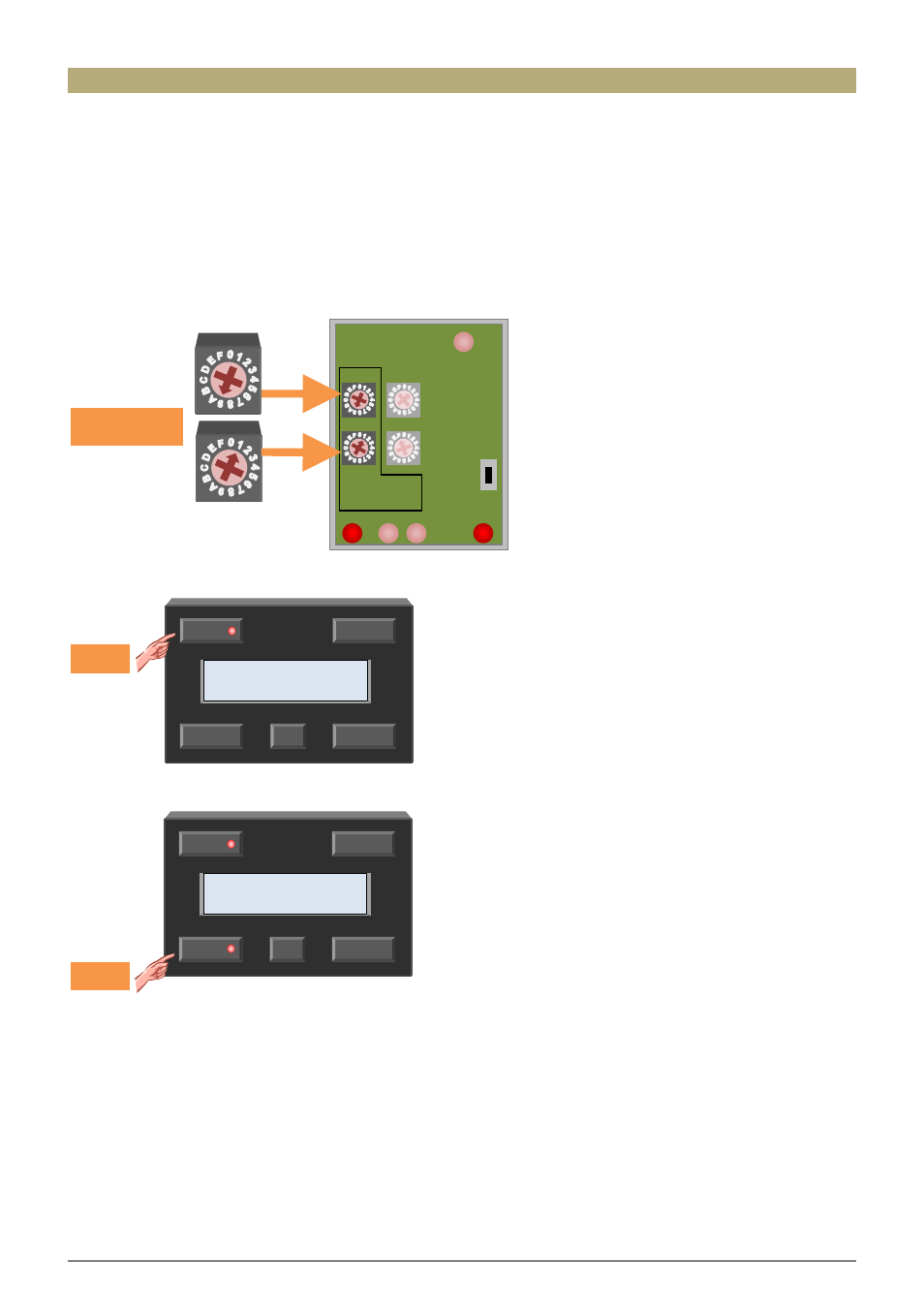

First the atmosphere buttons must be linked. Set the address of the dimmer module to ‘91’. The MODE LED on
the dimmer module and the indication LED(s) of the already linked atmosphere pushbutton(s) will flash (fast). This
way it can easily be determined which pushbuttons already have an atmosphere function assigned.

Press and hold the ‘watch TV’ pushbutton for at least 1 second until its indication LED starts flashing.

Press and hold the ‘reading’ pushbutton for at least 1 second until its indication LED starts flashing.

Repeat the previous step in case other pushbuttons on the Velbus system must be linked to an atmosphere.
Remark:

• In case the indication LED of the pushbutton that you would like to link to an atmosphere is not flashing, the

maximum number of atmosphere pushbuttons is reached.

• Unlinking a pushbutton is done by pressing and holding the pushbutton until its indication LED switches off.

1 sec

watch TV Dim+
reading Dim-

1 sec

watch TV Dim+
reading Dim-

ADDR = 91

ADDR

Mode

Time

PWM

Learn
F1: OFF
E1: ON
D1: TGL
C1: DIM

B1: UP
A1: DWN
91: ATM
81: ADM

MODE

MAN(CLR)
