Setting the operating mode

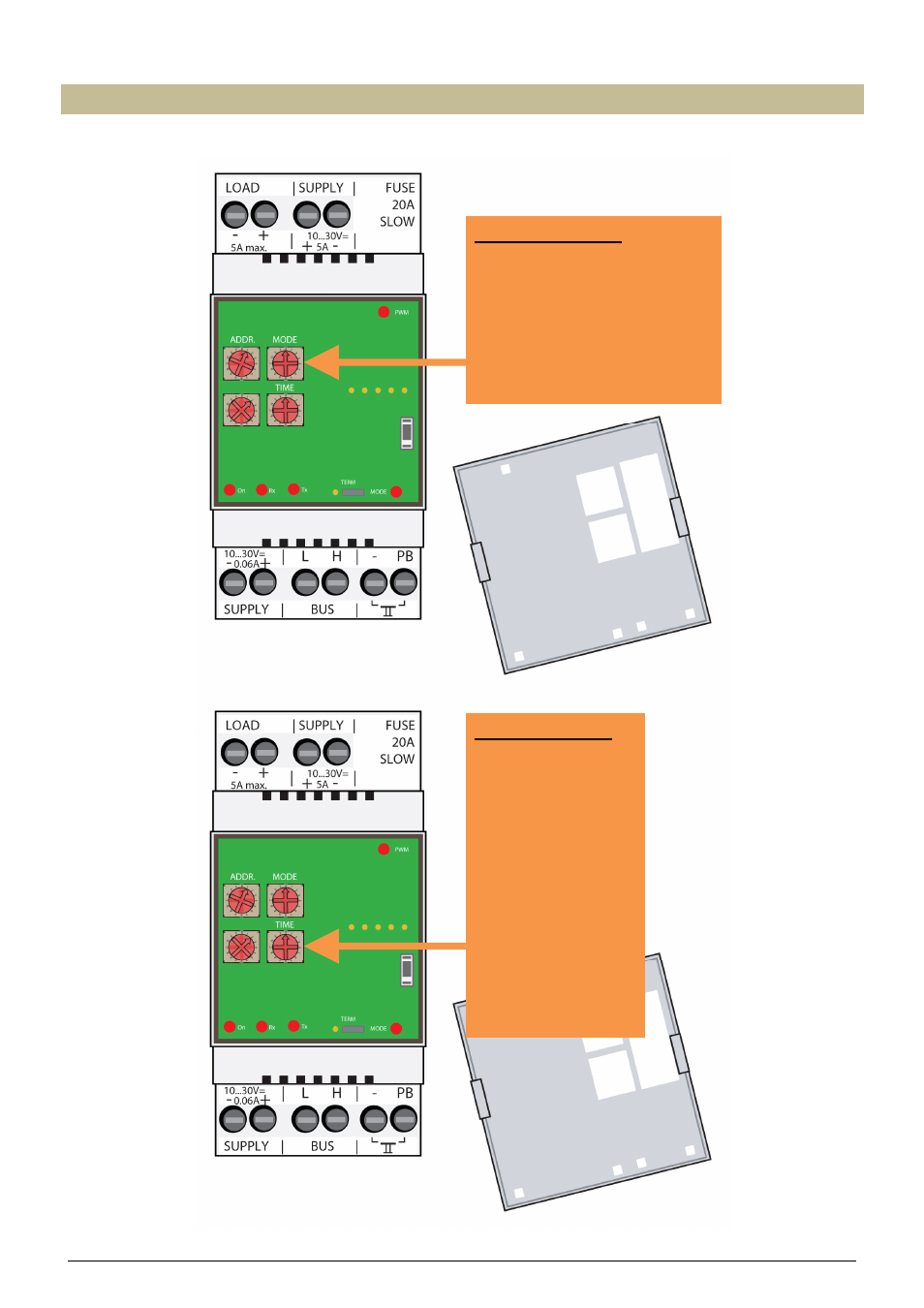

The function of the directly connected pushbuttons or linked ‘DIM’ Velbus pushbuttons is determined by the
position of the ‘Mode’ and ‘Time’ rotary switches.

TIME rotary switch
0 : instant control
1 : 5 seconds
2 : 10 seconds
3 : 15 seconds
4 : 30 seconds
5 : 1 minute
6 : 2 minutes
7 : 5 minutes
8 : 10 minutes
9 : 15 minutes
A : 30 minutes
B : 1 hour
C : 2 hours
D : 5 hours
E : 24 hours
F : -

MODE rotary switch
0 : start/stop timer
1 : staircase lighting timer
2 : dimmer
3 : dimmer with memory function
4 : multiple position dimmer
5 : slowly on dimmer
6 : slowly off dimmer
7 : slowly on/off dimmer
