VMB1LED PWM LED strip dimmer Manual– edition 1_rev.2
28

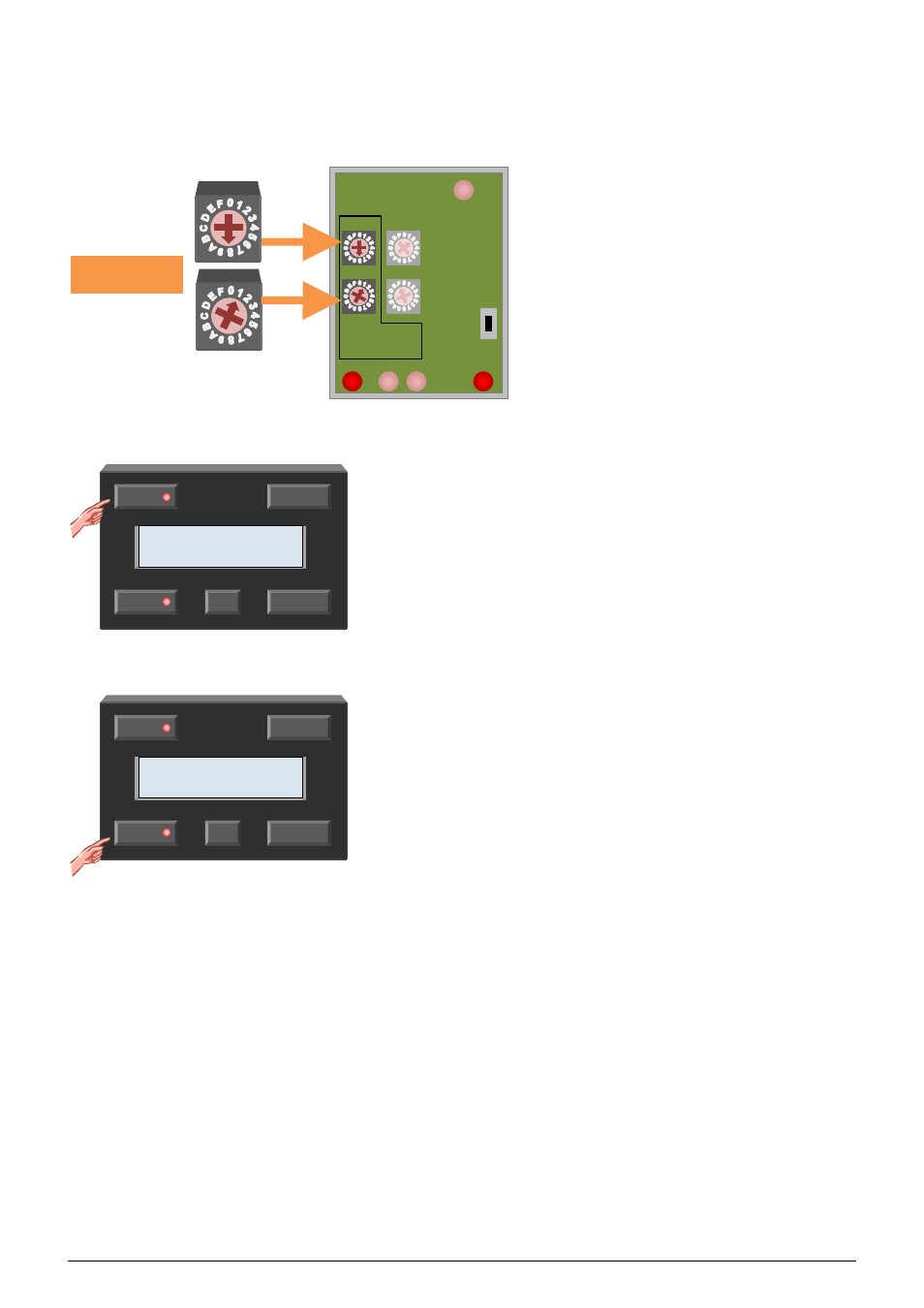

Next step is to assign brightness levels to those atmosphere pushbuttons. Set the address of the dimmer module
to ‘81’. The MODE LED on the dimmer module and the indication LED(s) of the already linked atmosphere
pushbutton(s) will flash (fast). This way it can easily be determined which pushbuttons already have an
atmosphere function assigned.
Set the desired brightness for watching television by pressing and holding the ‘watch TV’ pushbutton until the
desired brightness is reached. Release and press again to change dimming direction (up or down).
Set the desired brightness for reading light by pressing and holding the ‘reading’ pushbutton until the desired
brightness is reached. Release and press again to change dimming direction (up or down).
Reinstate the original address of the dimmer module.
watch TV Dim+
reading Dim-
ADDR = 81
ADDR Mode
Time
PWM
Learn
F1: OFF
E1: ON
D1: TGL
C1: DIM
B1: UP
A1: DWN
91: ATM
81: ADM
MODE
Tx Rx ON
MAN(CLR)
watch TV Dim+
reading Dim-
