N O T E !
For the erection of high-power electrical units with nominal voltages of up
to 1000V, the requirements of VDE 0100 (IEC 364) must be observed
together with the associated standards and stipulations.
A main switch must be provided externally.
The main circuit of the device must be equipped with a fuse
corresponding to the nominal voltage (over current protection); for
electrical details see technical data.
When mounting the capillary regulator or PID regulator on the sampling
place, the maximum admissible ambient temperature must be heeded (see
chapter 8). In case it is exceeded, you must install a PID regulator
externally and outside the critical temperature zone.

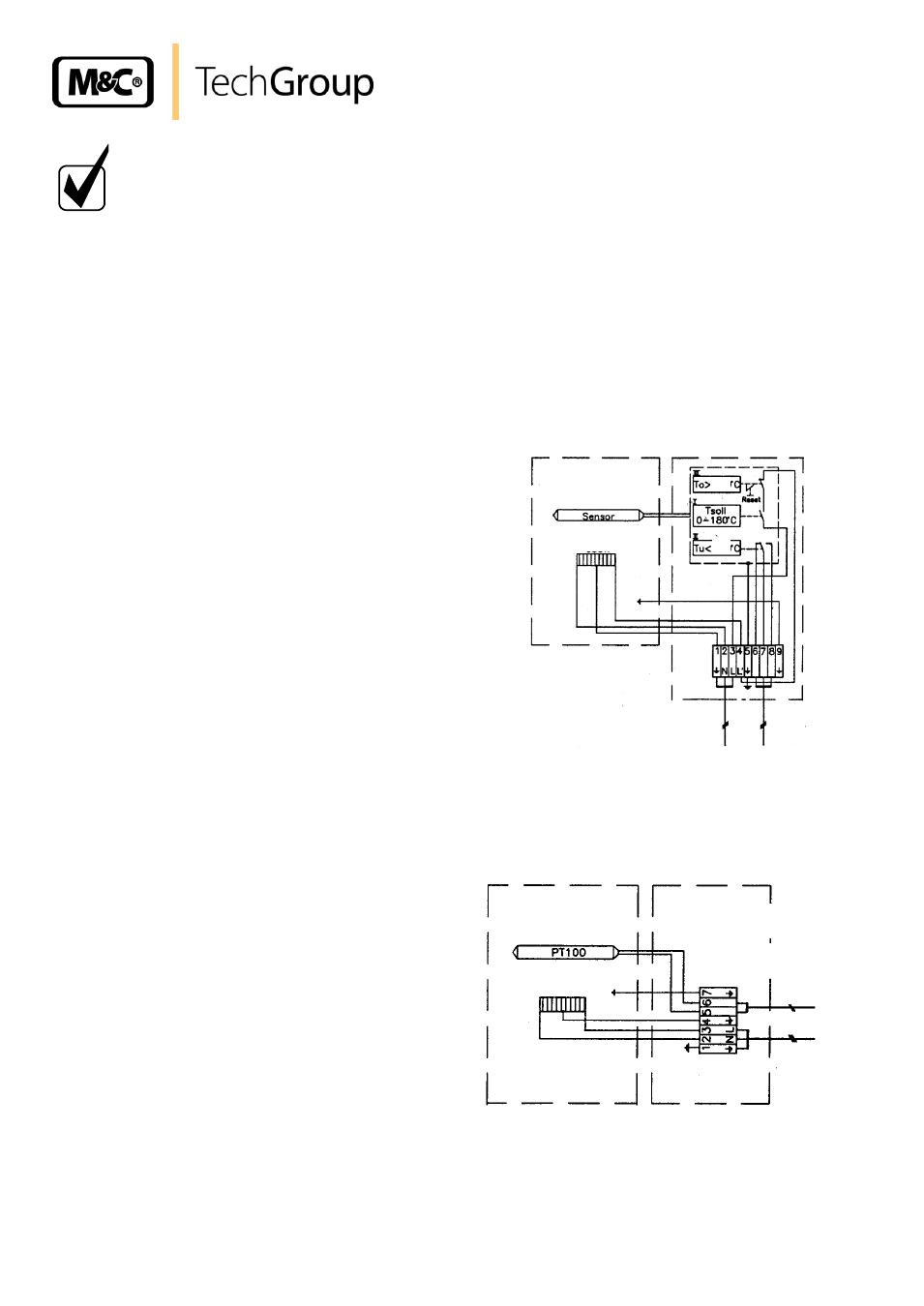

13.2.1 VERSION WITH INTERNAL CAPILLARY TUBE THERMOSTAT

Remove the lid of the connection box. Inside the lid,
you can find the electrical connection plan as shown
here.

Insert the mains cable ( min. 3 x 1,5 mm 2 ) through the
cable gland and connect it to the appropriate terminals.

Insert the signal cable (insufficient temperature alarm)
through the cable entry and connect it to the
appropriate terminals (contact position T
u
indicates the
event of alarm).

Screw on the lid again.
C A R E !
We recommend to use heat-resistant cables !
13.2.2 VERSION WITH EXTERNAL TEMPERATURE REGULATOR

Remove the lid of the connection box. Inside
the lid, you can find the electrical connection
plan as shown here.

Insert the mains cable ( min. 3 x 1,5 mm 2 )
through the cable gland and connect it to the
appropriate terminals.

Insert the temperature sensor cable through
the cable entry and connect it to the
appropriate terminals.

Screw on the lid again.
A T T E N T I O N !
If you apply thermocouples, please use corresponding calibration lines !
Mains 230V 50Hz
or 115V 60Hz
Alarm outlet
1
2
1 2
+30
-30 800 W
Mains 230V 50Hz
or 115V 60Hz
PT100 or
thermocouple
1
2
1
2
800 W
