Gas sampling and gas conditioning technology

2-1.1.5.1-ME

12.3

DISMOUNTING OF THE FILTER HOUSING COVER AND CHECKING THE

FILTER ELEMENT

The filter housing cover is dismounted as followed:

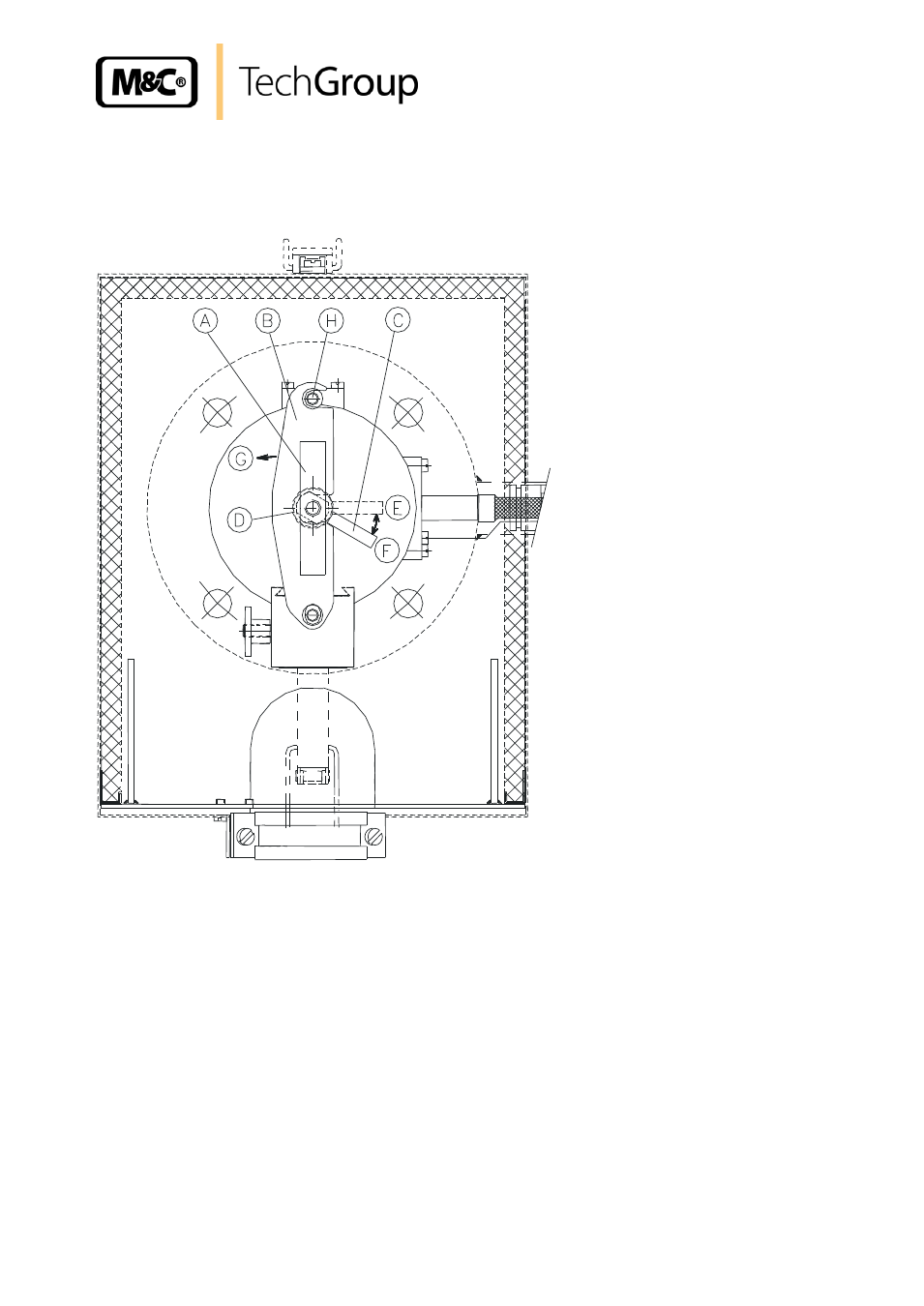

Figure 4

Schematic drawing of the filter housing cover



Turn the toggle handle A approximately one rotation to the left side so that the cover is lifted;



Put the handle C into position E;



Turn the clamp clip B to the left side (direction G);



Pull out the filter housing cover with the toggle handle A.

The photos shall illustrate the above mentioned steps.
