Page 26

26
Gas sampling and gas conditioning technology
2-1.1.7.2-ME
N O T E !
Pay attention that after putting in the filter housing lid the strap bolt (see
fig.15) is screwed down hand-tight in cold condition and that it is tightened
again after the operating temperature is reached.
17.2
DISASSEMBLY OF THE DILUTION AND BYPASS BLOCK
For disassembling of the dilution and the bypass block, the heating should be switched off so that the
probe can cool down.

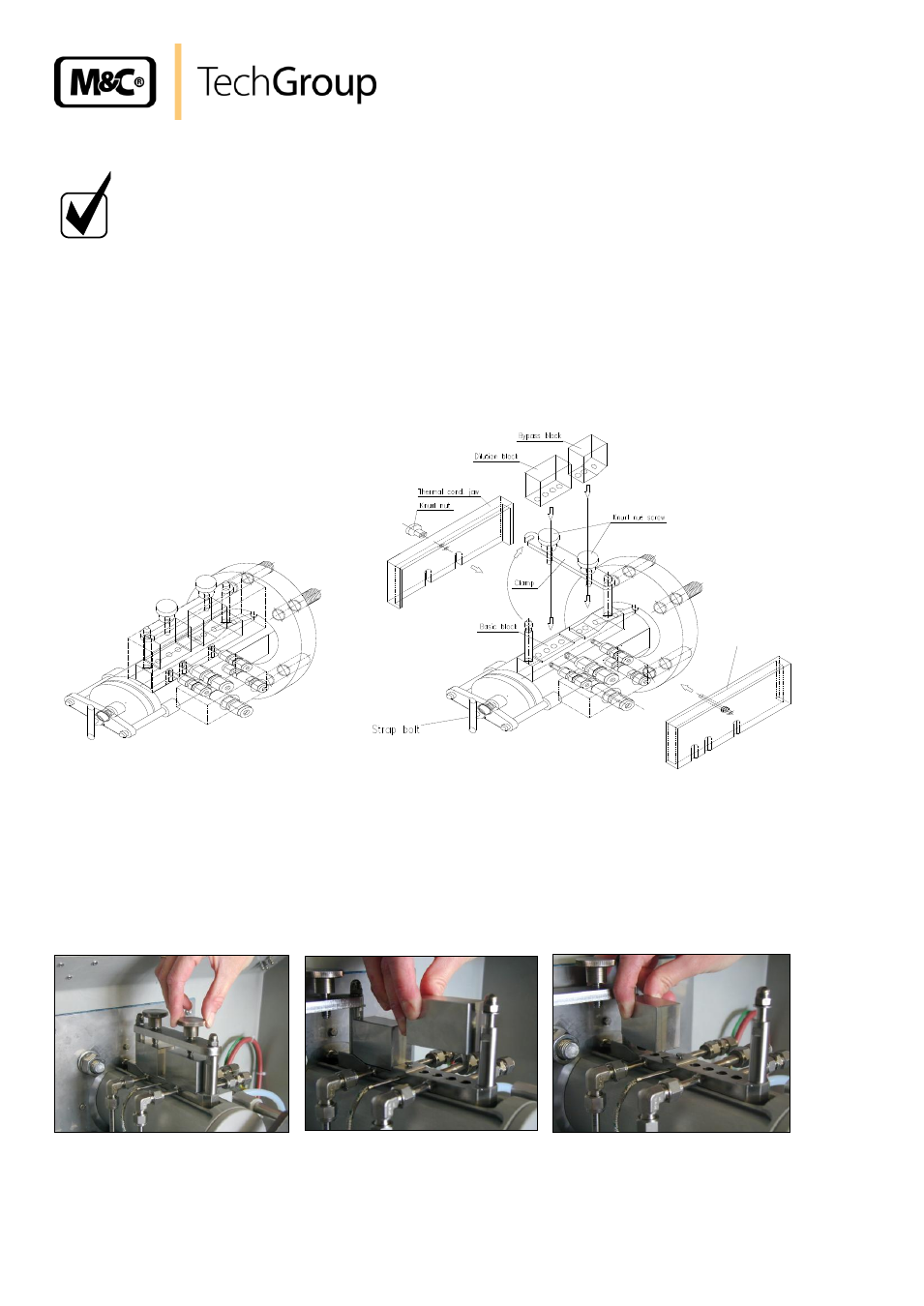

Figure 15 shows the dilution and bypass block.
Figure 16
Drawing of the dilution and bypass block
We recommend to proceed according to the following steps:
Open the lid of the glass fiber reinforced plastic housing
Open the knurl nut screw at the side and remove the thermal conducting jaws
Loosen the knurl nut screws on the top and turn the clamp to the side
Now it is possible to remove the dilution and/or the bypass block
