Gas sampling and gas conditioning technology 4-2.1.2-ME
6 INTRODUCTION
The portable gas conditioning and sampling system PSS-10/1 has been especially designed so that
precise gas analyses can be carried out in any place and at any time.
The entire gas conditioning system is housed in a compact and robust aluminium case which ensures
that the components can be removed easily, and gas analyses carried out quickly, safely and with a
minimum amount of maintenance.
7 APPLICATION
The gas conditioning and sampling system is ideally suited for both intermittent and continuous
operation.
The components of the system PSS-10/1 are intended for "standard use." We also provide a wide
range of additional equipment and other components should special measurements be required.

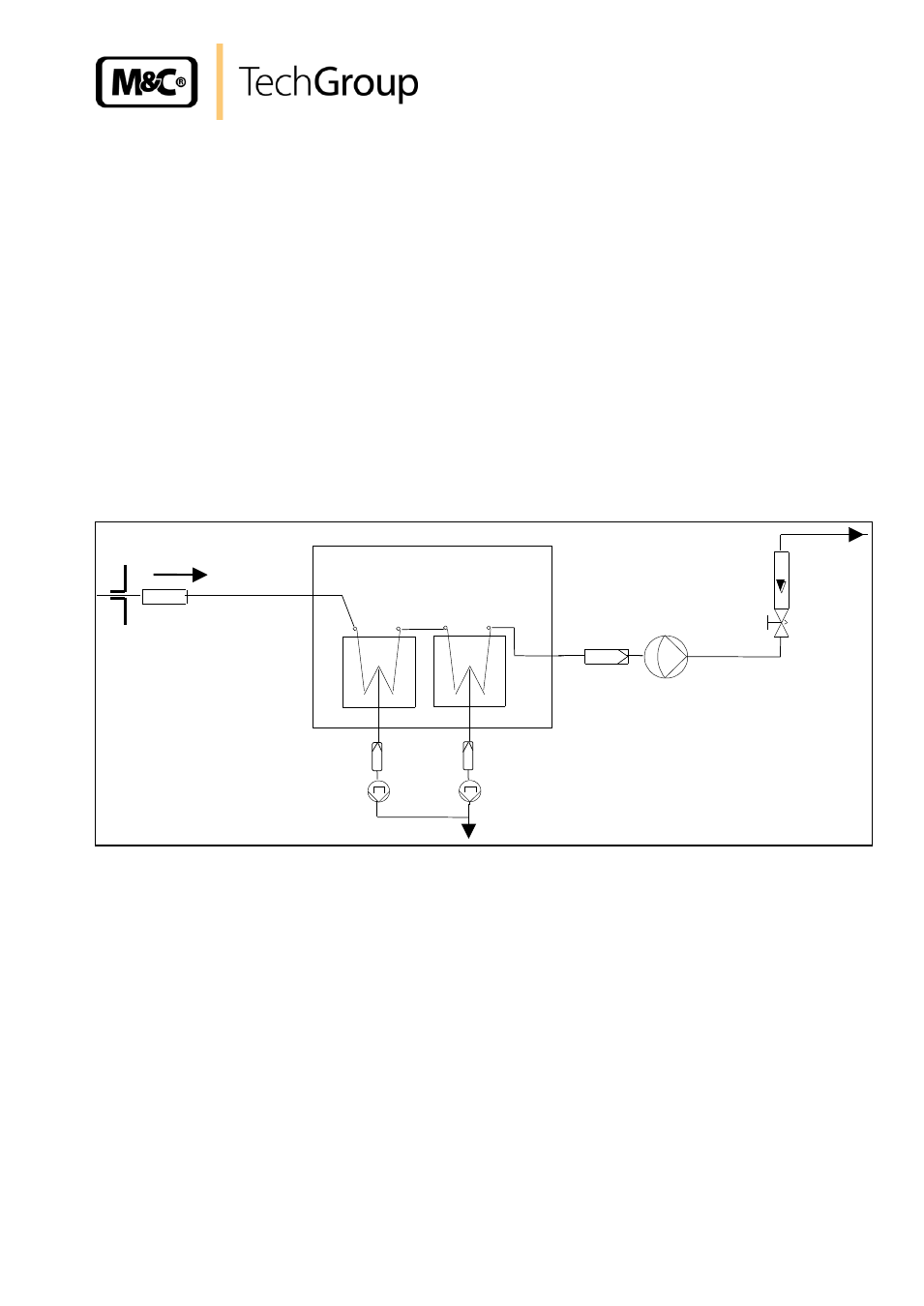

Figure 1 Flow sheet
 Sample gas probe, material stainless steel 316, diameter 4/6mm, length 0.5m
 Sample gas line, PVC hose DN 4/6mm, length 3m
 Gas cooler ECP20/2
 Fine filter FP-2T, filter element fineness 2 µm
 Sample gas diaphragm pump N9KPE
 Flowmeter FM40, option
 Pre-filter PF 2
 Peristaltic pump SR25.1 for continual removal of condensate
+5°C
ECP 20-2




 

sample gas
in
Condensate-out

