6

Gas sampling and gas conditioning technology

2-1.3.9-ME

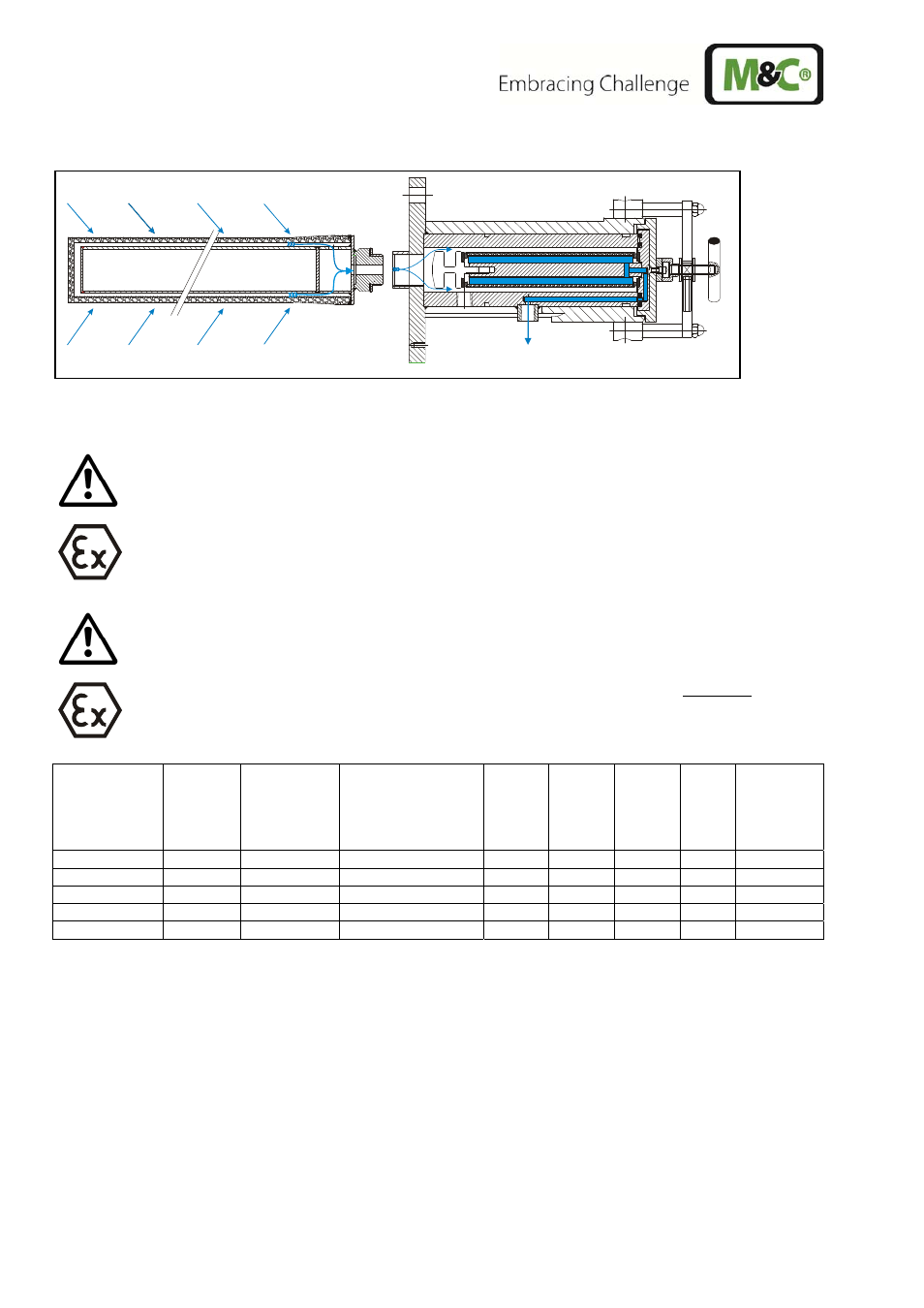

The following figure shows the basic version of the gas sample probe SP3200(V) with prefilter.










Figure 1

Probe SP3200(V) without options with preliminary filter V20

SP3200V / SP3200:
In case the gas-dust mixture to be examined must be classified as potentially explosive because
it contains combustible gases, only downstream devices (flowmeters, analysers) with corre-
sponding identification according to directive 94/9/EC must be used. Suitable explosion isola-
tion with a flame arrestor must be established. Any downstream units are not covered by this
operating manual.

For sampling with probe SP3200(V) from explosion zone 2 sample tubes or pre-filters and
extension tubes can be choosen from tables 1 – 3 below.

For sampling with probe SP3200(V) from explosion zone 22 a pre-filter has to be choosen
from table 2 below. Additional extension tubes from table 3 can be choosen.

Sample tube
Type

Part

No.

max. temper-

ature


°C

Material

Tube / Connection

part

Length

mm

Length

„L max“

mm

Connec-

tion

thread

„G“

Tube ø

o/i

[mm]

Connection

ø o

[mm]

SP2000/SS

20S9065

600

Stainl. steel 1.4571

1000

2500

G 3/4“a

25/22

37

SP2000/SS-Vm

20S9067

600

Stainl. steel 1.4571

1000

2500

G 3/4“a

25/06

37

SP2000/HC

20S9090

900

Hastelloy C4

1000

2500

G 3/4“a

25/22

37

SP2000/KA

20S9080

1300

Kanthal / 1.4571

1000

1500

G 3/4“a

27/20

37

SP2000/IC

20S9072

1200

Incoloy 956

1000

2000

G 3/4“a

25/22

37

Table 1

Sample tube for use with probe SP3200(V)
