IP Director Version 4.4 – User Manual – Part 2: Logging and Browsing
EVS Broadcast Equipment – March 2008
Issue 4.4.C
111
4.1.3 S
ECTIONS OF
M
INI
D
ATABASE
E
XPLORER

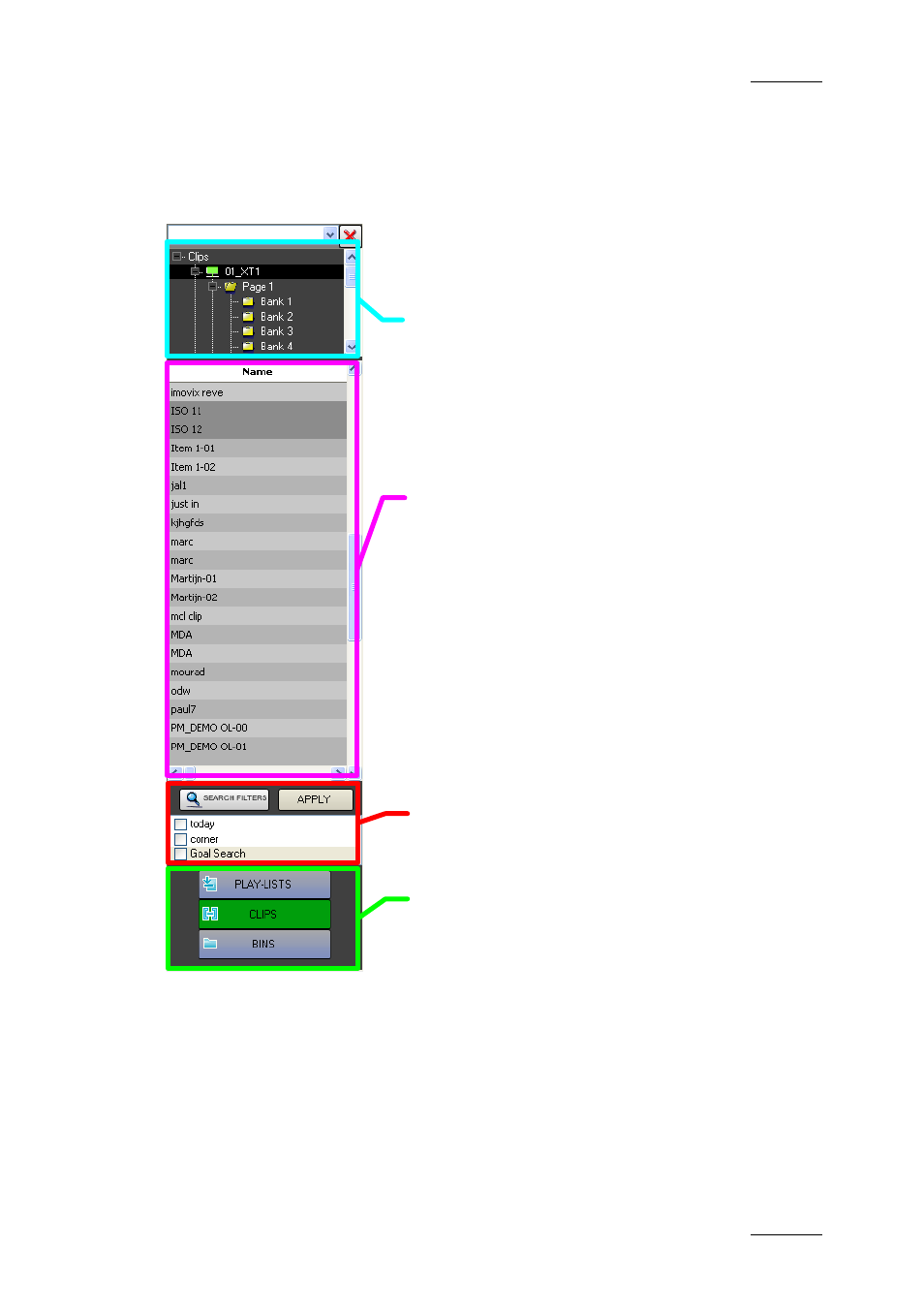

A Mini Database Explorer panel has four sections:
Tree View
Element
List
Search
Filters
Display
Options
The Tree View:
This shows the relevant tree as selected
in the display options panel at the base of
the Mini Database Explorer. The tree view
can contain a tree for the XT clips, bins,
or play-list structure.
A setting in the Tools menu chooses the
view displayed of the XT structure when
‘Clips’ is selected. For more information
see the section
The Element List:
This area shows the clips, bins or play-
lists contained in the selection made in
the Tree View above it. For Example if
Page 5 is selected in the tree view, all
clips in Page 5 will be displayed in the
Element list.
The panel area can be extended using
normal windows techniques to display
more columns and data related to the clips
and the columns can also be organised in
the same way as a full Database Explorer
panel.
The Search Filters:
This area shows the search filters that
have been predefined and saved. These
can be selected and applied from this
area. The results will be displayed in the
objects list above.
The Display Options:
This allows a choice of what is displayed
in the Tree View of the Mini Database
Explorer panel.
In the Clip Editor panel the choice will
display clips and bins.
In the Play-List Editor panel the choice
will be play-lists, clips and bins.
