Chapter 5: Using the Client-side GMII Data Path

Virtex-4 Devices

The logic described previously for Virtex-II and Virtex-II Pro devices does not meet the
input setup and hold requirements for GMII with Virtex-4 devices. Two possible solutions
are:

A DCM may be used on the gmii_tx_clk clock path for the Spartan-3 family, as
illustrated in

Figure 5-15

Input Delay Elements may be used on the GMII data path, as illustrated in

Figure 5-16

The IODELAY elements can be adjusted to fine-tune the setup and hold times at the
GMII IOB input flip-flops. The delay is applied to the IODELAY element using
constraints in the UCF; these can be edited if desired. See

“Constraints When

Implementing an External GMII” in Chapter 12

for more information.

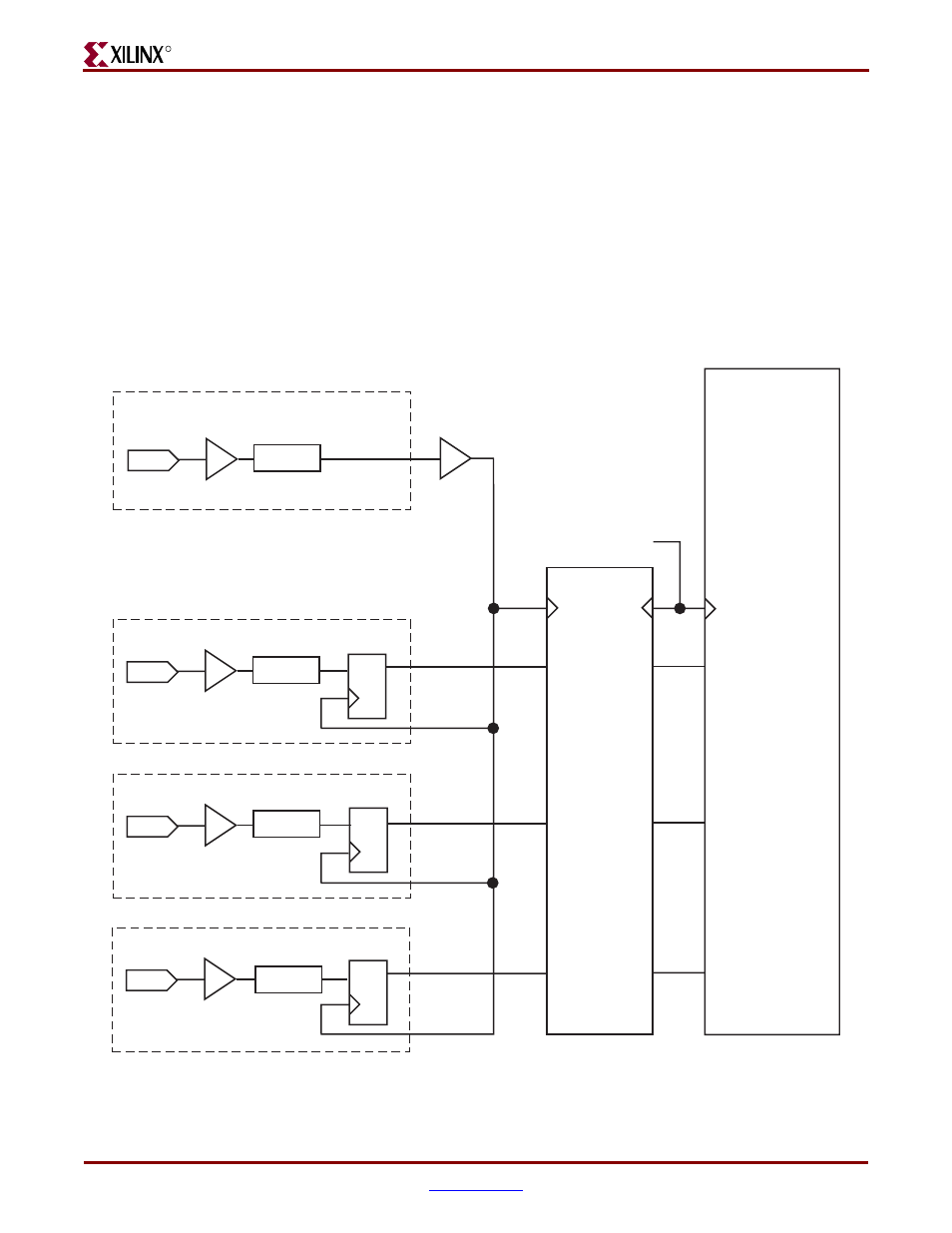

Figure 5-16:

External GMII Transmitter Logic for Virtex-4 Devices

gmii_tx_clk

IBUFG

IOB LOGIC

IPAD

gmii_txd[0]

IBUF

gmii_tx_en

gmii_tx_er

gmii_txd[0]

gmii_tx_en

gmii_tx_er

BUFG

Ethernet 1000BASE-X

PCS/PMA

or SGMII LogiCORE

IPAD

IBUF

gmii_tx_clk_bufg

gmii_txd_int[0]

gmii_tx_en_int

gmii_tx_er_int

Transmitter

Elastic

Buffer

userclk2 (if RocketIO is used)
gtx_clk (if TBI is used)

IDELAY
