Chapter 3 Status Screens
ZyXEL NWA-1100 User’s Guide
41
3.1.1 System Statistics Screen
Use this screen to view read-only information, including 802.11 Mode, Channel ID, Retry
Count and FCS Error Count. Also provided is the "poll interval". The Poll Interval field is
configurable. The fields in this screen vary according to the current wireless mode of each
WLAN adaptor.
Click Status > Show Statistics. The following screen pops up.

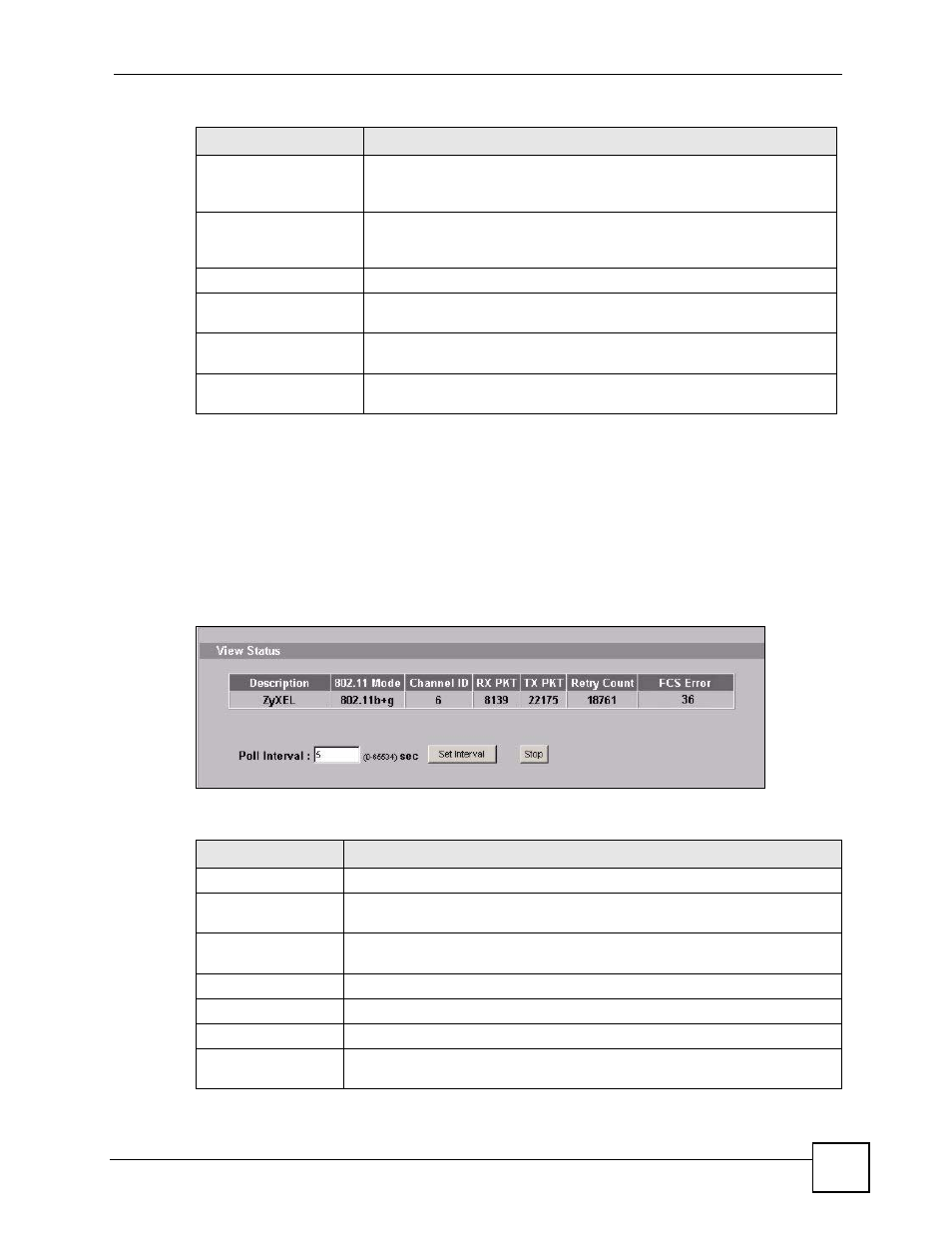

Figure 12 System Status: Show Statistics
The following table describes the labels in this screen.
LAN
This field displays the number of wireless clients currently associated to
the first wireless module. Each wireless module supports up to 32
concurrent associations.
WLAN
This field displays the number of wireless clients currently associated to
the second wireless module. Each wireless module supports up to 32
concurrent associations.
System Status
Statistics
Click this link to view port status and packet specific statistics. See
.
Association List
Click this to see a list of wireless clients currently associated to each of the
ZyXEL Device’s wireless modules. See
.
View Log
Click this to see a list of logs produced by the ZyXEL Device. See
Table 2 The Status Screen
LABEL
DESCRIPTION
Table 3 System Status: Show Statistics
LABEL
DESCRIPTION
Description
802.11 Mode
This field shows which mode (802.11b Only, 802.11g Only, 802.11b+g) the
ZyXEL Device is using.
Channel ID
Click this to see which wireless channels are currently in use in the local area.
See
.
RX PKT
This is the number of received packets on this port.
TX PKT
This is the number of transmitted packets on this port.
Retry Count
This is the total number of retries for transmitted packets (TX).
FCS Error
This is the ratio percentage showing the total number of checksum error of
received packets (RX) over total RX.
