Chapter 6 Tutorials
NBG-417N User’s Guide
63
The following figure shows you an example to set up wireless network and
security by pressing a button on both NBG-417N and wireless client (the
NWD210N in this example).

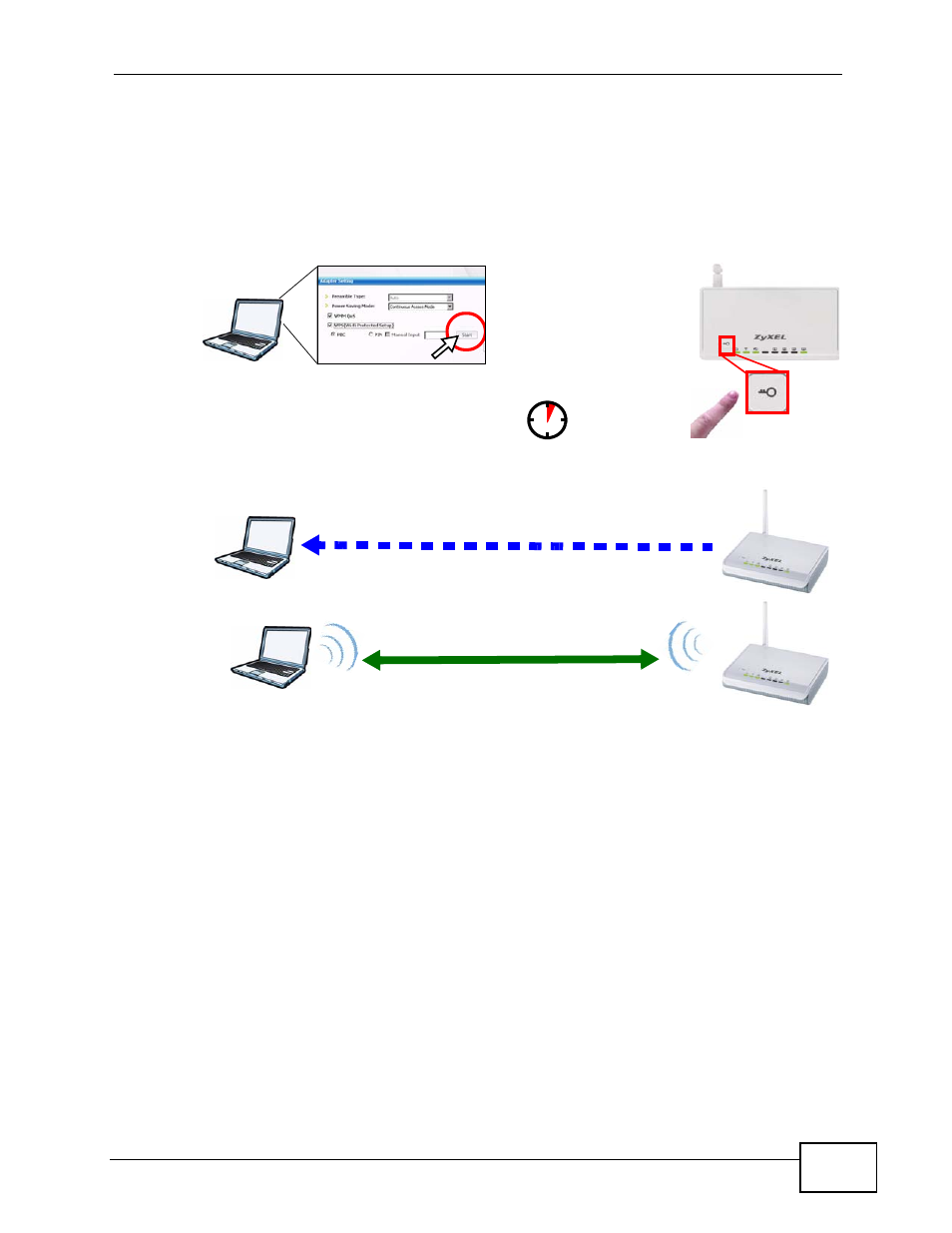

Figure 29 Example WPS Process: PBC Method
6.2.1.2 PIN Configuration
When you use the PIN configuration method, you need to use both NBG-417N’s
configuration interface and the client’s utilities.
1 Launch your wireless client’s configuration utility. Go to the WPS settings and
select the PIN method to get a PIN number.
2 Enter the PIN number to the PIN field in the Network > Wireless LAN > WPS
Station screen on the NBG-417N.
3 Click the Start buttons (or button next to the PIN field) on both the wireless client
utility screen and the NBG-417N’s WPS Station screen within two minutes.
The NBG-417N authenticates the wireless client and sends the proper
configuration settings to the wireless client. This may take up to two minutes.
Then the wireless client is able to communicate with the NBG-417N securely.
Wireless Client
NBG-417N
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
