Chapter 5 AP Mode
NBG-417N User’s Guide
56
5.3.1 Navigation Panel
Use the menu in the navigation panel to configure NBG-417N features in AP
Mode.
The following screen and table show the features you can configure in AP Mode.

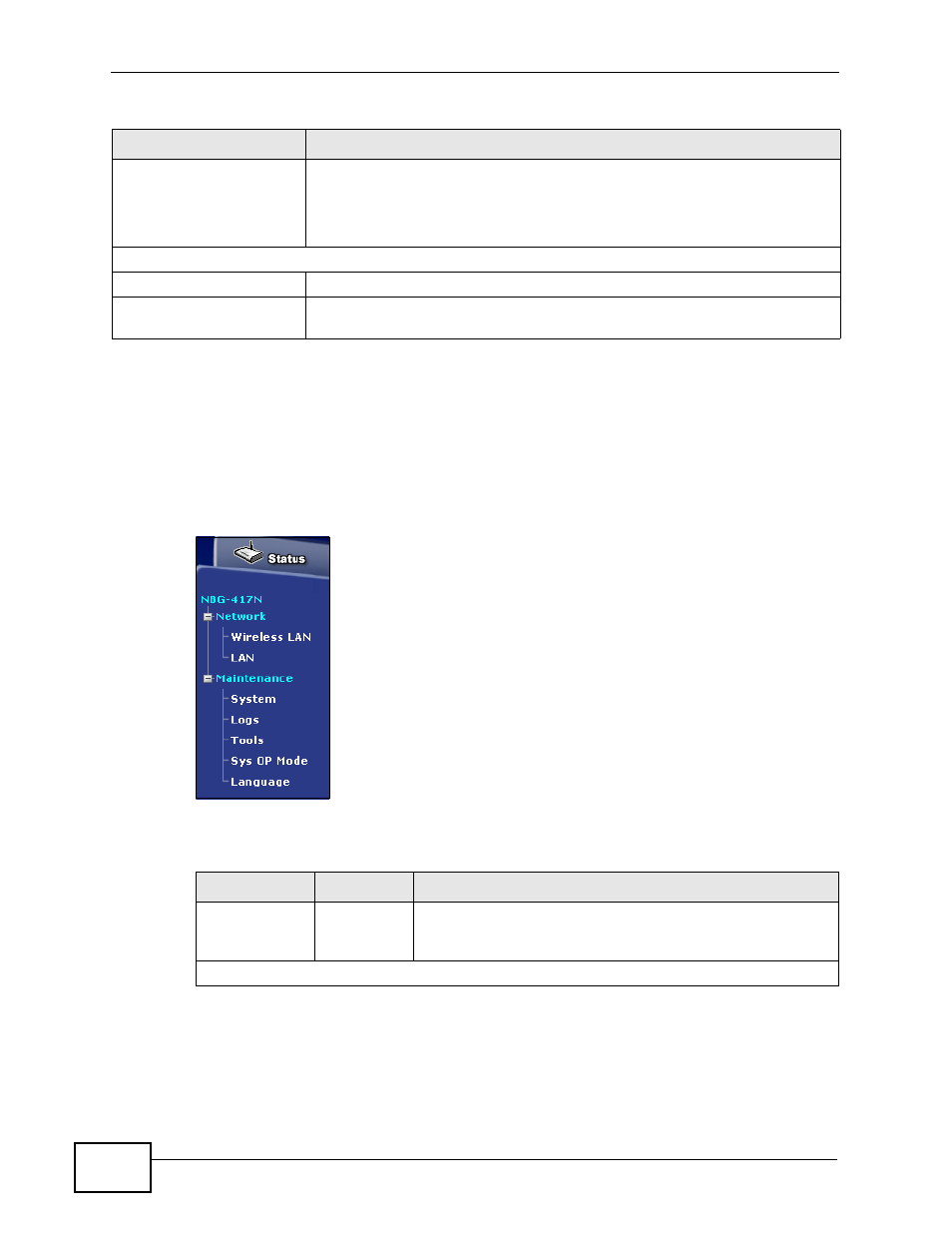

Figure 26 Menu: AP Mode
The following table describes the sub-menus.
Rate For the LAN ports, this displays the port speed and duplex setting or N/A
when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN
is enabled and N/A when the WLAN is disabled.
Summary
Packet Statistics Use this screen to view port status and packet specific statistics.
WLAN Station Status Use this screen to view the wireless stations that are currently associated
to the NBG-417N.
Table 19 Status Screen (AP Mode) (continued)
LABEL DESCRIPTION
Table 20 Menu: AP Mode
LINK TAB FUNCTION
Status This screen shows the NBG-417N’s general device, system
and interface status information. Use this screen to access
the wizard, and summary statistics tables.
Network
