Chapter 22 Sys OP Mode
NBG-417N User’s Guide
186
AP
An AP extends one network and so has just one IP address. All Ethernet ports on
the AP have the same IP address. To connect to the Internet, another device, such
as a router, is required.

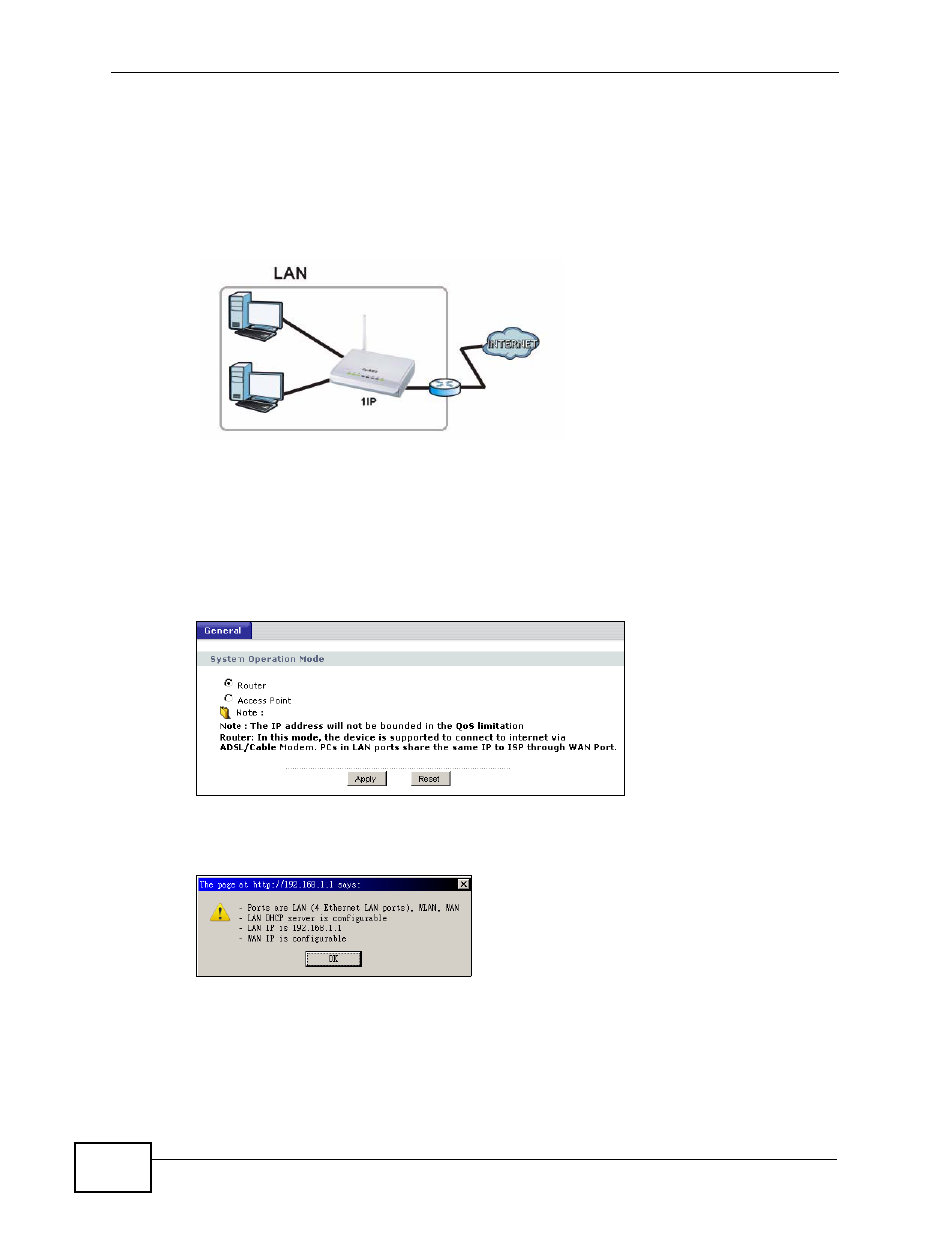

Figure 110 IP Address in AP Mode
22.4 General Screen
Use this screen to select how you connect to the Internet.
Figure 111 Maintenance > Sys OP Mode > General
If you select Router Mode, the following pop-up message window appears.
Figure 112 Maintenance > Sys Op Mode > General: Router
• In this mode there are both LAN and WAN ports. The LAN Ethernet and WAN
Ethernet ports have different IP addresses.
• The DHCP server on your device is enabled and allocates IP addresses to other
devices on your local network.
• The LAN IP address of the device on the local network is set to 192.168.1.1.
