Chapter 1 Getting to Know Your NBG-417N
NBG-417N User’s Guide
23

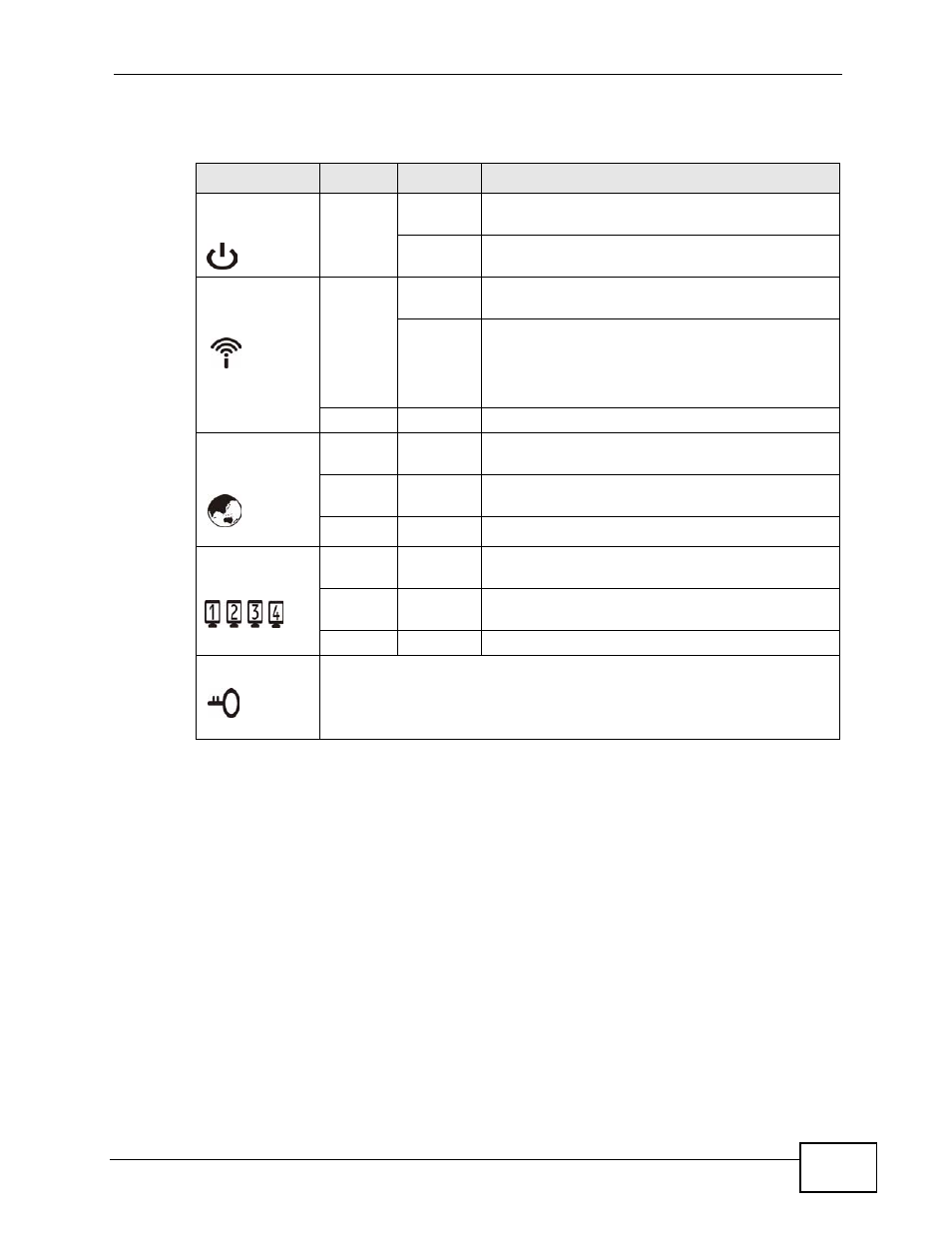

The following table describes the LEDs and the WPS button.
Table 1 Front Panel LEDs and WPS Button
LED
COLOR
STATUS
DESCRIPTION
POWER
Green
On
The NBG-417N is receiving power and
functioning properly.
Off
The NBG-417N is not receiving power.
WLAN / WPS
Green
On
The NBG-417N is ready, but is not sending/
receiving data through the wireless LAN.
Blinking
The NBG-417N is sending/receiving data through
the wireless LAN.
The NBG-417N is negotiating a WPS connection
with a wireless client.
Off
The wireless LAN is not ready or has failed.
WAN
Green
On
The NBG-417N has a successful 10/100MB WAN
connection.
Blinking
The NBG-417N is sending/receiving data through
the WAN.
Off
The WAN connection is not ready, or has failed.
LAN 1-4
Green
On
The NBG-417N has a successful 10/100MB
Ethernet connection.
Blinking
The NBG-417N is sending/receiving data through
the LAN.
Off
The LAN is not connected.
WPS Button
Press this button for 1 second to set up a wireless connection via WiFi
Protected Setup with another WPS-enabled client. You must press the
WPS button on the client side within 120 seconds for a successful
connection.
