Prestige 480 Dual BRI ISDN Router
Hardware Installation and Setup 2-1
Chapter 2
Hardware Installation & Initial Setup
This chapter shows you how to make the cable connections to your Prestige as
well as set up your ISDN connection using the SMT.
2.1 Front Panel LEDs
The LED indicators on the front panel indicate the router functional status of the Prestige. The following
table describes the LED functions:

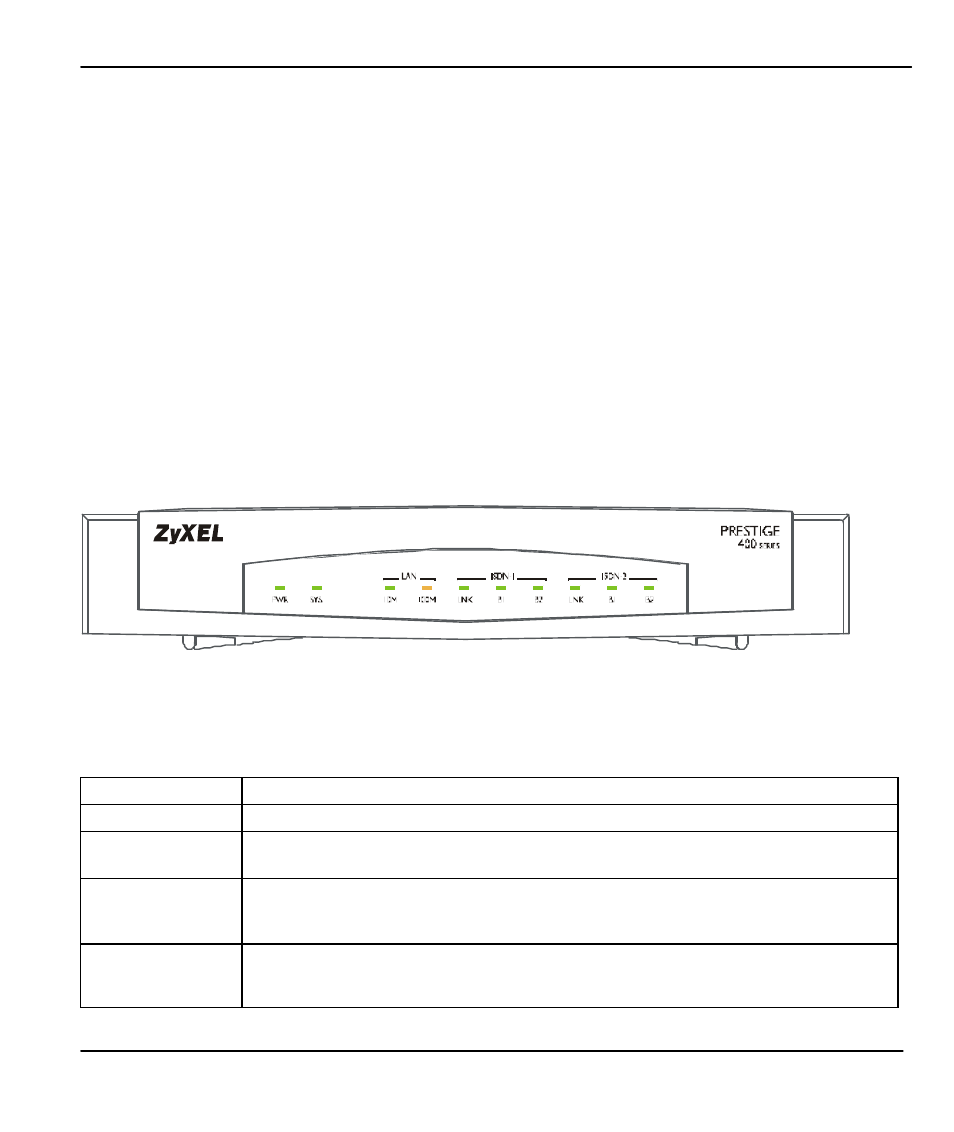

Figure 2-1 Front Panel
Table 2-1 LED Functions
Field Description
PWR The PWR (power) LED is on when power is applied to the Prestige.
SYS The SYS (System) LED is on when the system is running normally, and off when the
system is not ready or failed. It flashes when the system is rebooting.
LAN 10M This green LED is on when the 10M Ethernet is connected and ready and off when
the 10M Ethernet is not ready or failed. This LED flashes when the Prestige is
sending or receiving packets.
100M This orange LED is on when the 100M Ethernet is connected and ready and off
when the 100M Ethernet is not ready or failed. This LED flashes when the Prestige
is sending or receiving packets.
