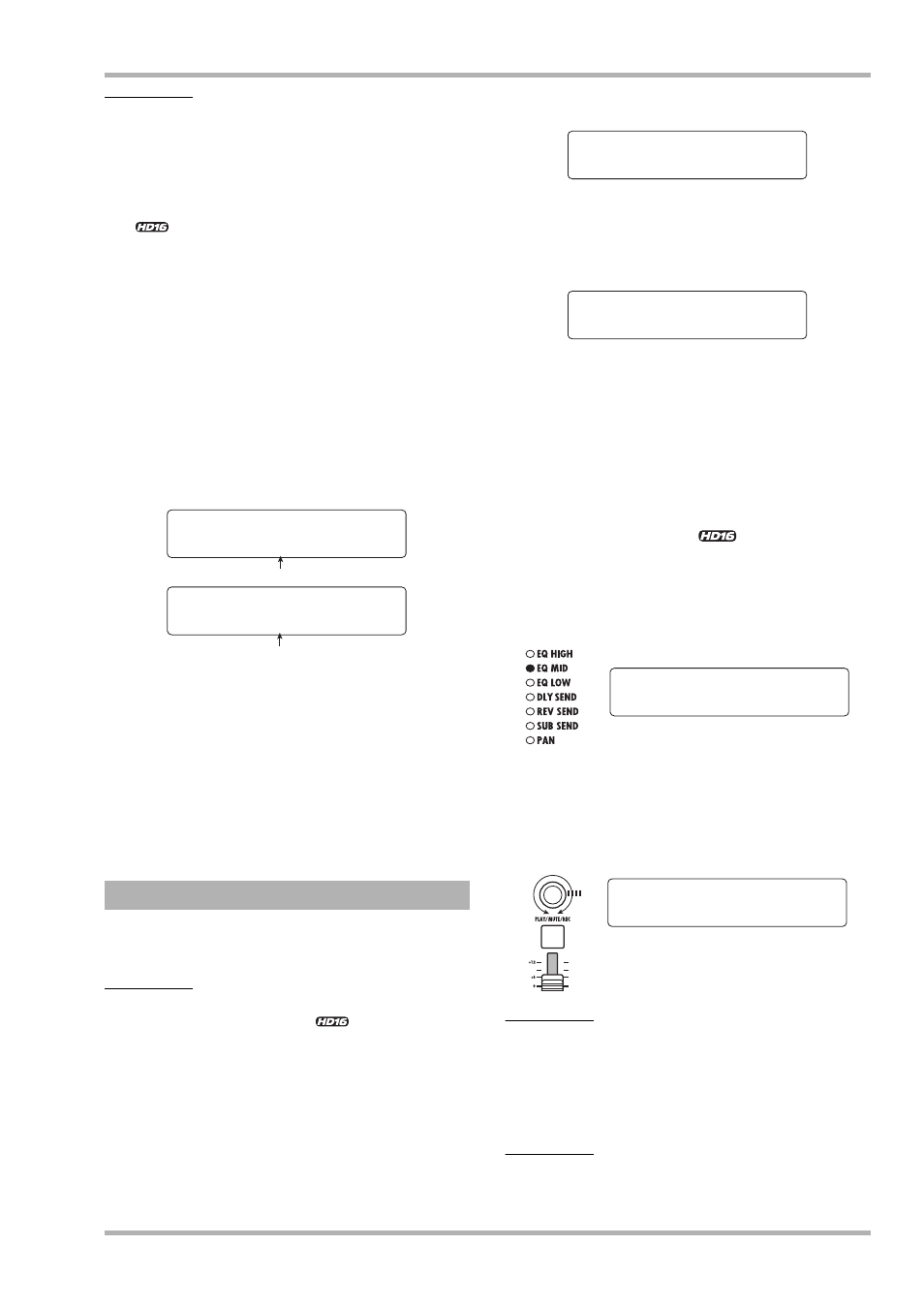

Reference [Mixer]
ZOOM HD8/HD16 81
NOTE
• When a recording track is selected, the input signal is sent to
that track directly, without going through the track mixer.
Therefore the input track parameter setting has no effect.
However, the REC LVL parameter is always active, regardless of
the recording standby setting of a track.
• << only>> The STEREO SUB-OUT jack parameters are
available only on the HD16.
4.
To adjust the value of a numeric parameter,
turn the dial.
5.
To change the setting of an On/Off parameter
(marked with an asterisk in the table), select
the parameter and then press the [ENTER]
key.
Each push of the [ENTER] key toggles the parameter between
On and Off. For example, when you switch HI EQ from On to
Off, the display indication changes as follows.
6.
Repeat steps 3 – 5 until all desired
parameters are adjusted.
If required, you can use the cursor left/right keys, status keys
and [ON/OFF] keys in this condition to change to another
track/input and adjust other parameters.
7.
To return to the main screen, press the [EXIT]
key.
The row of parameter knobs above the faders and status keys
can be used to quickly adjust main track parameters.
NOTE
Only parameters for tracks 1 – 8 << 1 – 16>> and the
drum/bass track can be adjusted with the parameter knobs.
Master track and input parameters cannot be adjusted in this
way.
1.
From the main screen, press the [SELECT]
key in the function/transport section.
You can now select a parameter for adjustment with the
parameter knob. The display shows the most recently adjusted
track parameter.
2.
Repeatedly press the [SELECT] key, until the
parameter to adjust is shown.
The display shows the selected parameter.
The [SELECT] key gives access to the following track
parameters.
•EQ HI GAIN
•EQ MID GAIN
•EQ LOW GAIN
•CHORUS DELAY SEND LEVEL
•REVERB SEND LEVEL
•SUB-OUT SEND LEVEL << only>>
•PAN
The currently selected track parameter is also shown by the
parameter select indicator.
3.
Turn the parameter knob for the track whose
setting you want to adjust.
The display switches to the track that is being adjusted, and the
value of the track parameter selected in step 2 changes.
HINT
You can also use the status keys to select a track. For the
drum/bass track, press the [RHYTHM] status key.
4.
Repeat steps 2 – 3 for other parameters.
HINT
To change the setting of an On/Off parameter, select the
Using the parameter knobs
Track1 Track1
EQ HI G=0dB
EQ HI G=0dB
Track1 Track1
EQ HI Off
EQ HI Off
"On" condition
"Off" condition
Track1 Track1
EQ HI G=-10dB
EQ HI G=-10dB
Track1 Track1
EQ MID G=-10dB
EQ MID G=-10dB
Track1 Track1
EQ MID G=-10dB
EQ MID G=-10dB
Track2 Track2
EQ MID G=-5dB
EQ MID G=-5dB
