1. key: manual line taking, tone monitoring
during fax transmission.
2. key: attachment to a typed-in mail.
3. key: scanning resolution during transmis-
sion or copy.
4. key: contrast adjustment.
5. key: SMS transmission 1 .
6. key: access to directory and quick-dial
numbers.
7. key: access to the last dialed numbers, or to
the last entered e-mail addresses after pressing
the key.
8. key: broadcast transmission (fax, e-mail or
SMS).
9. Numerical keypad.
10.
key: fax transmission or black & white
local copy.
11. :key: Scan to e-mail (Internet fax transmis-
sion).
12. key: color document transmission over the
Internet.
13. key: stop current operation.
14. M key: access to the different functions
(MENU).
15. OK key: confirm displayed selection.
16. C key: return to previous menu and correct
data entry.
17. or keys: navigation keys.
18.Alphabetical keypad.
19.
key: access to special characters.
20. key: enter or go to next line.
21. Í key: erase character before cursor.
22. × key: Shift key.
23. key: Charge code key
24. and keys: memorize a key combination.
Default setting:
F1 : Scan to PC
F2 : Scan to FTP
A Scanning resolution during fax transmission
(Fine, SFine, Photo).
B :"Line L1 and Line L2" icon:
On: communication in progress.
Blinking: communication being established.
C Machine Paper Jam indicator.
D "Toner" icon:
On: toner empty.
Blinking: toner near end, toner low.
E Fax reception icon:
* On: reception possible.
* Blinking: unprinted document(s) in memory
or being received.
* Off: reception impossible.
1. Depending on countries and availability opera-
tors service
.

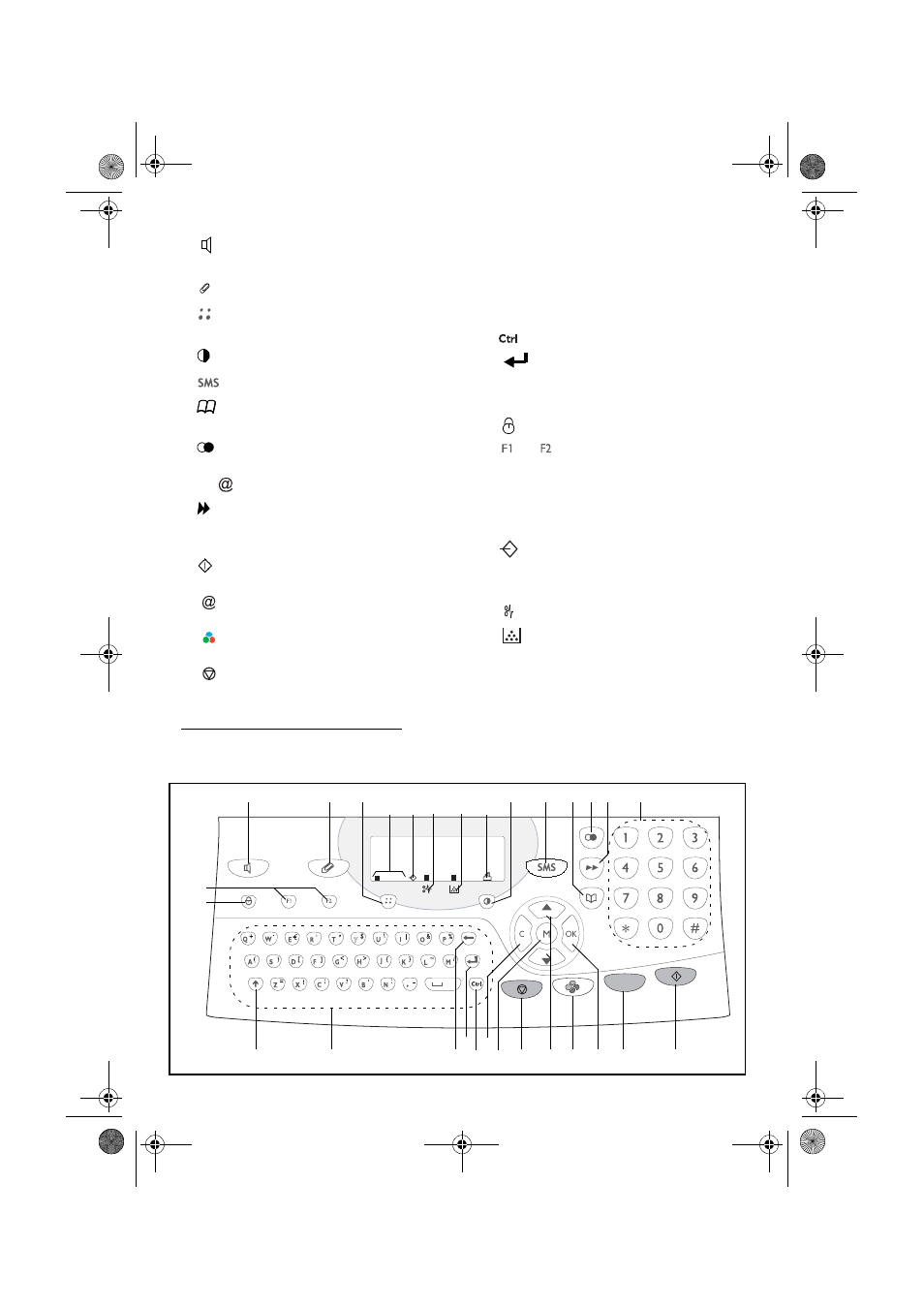

Control panel
