- 16 -
Installation
Date en cours : 11 août 2004
\\Sct01002\BE31-DOC\DOC 31 - En cours\Travaux en cours\Fax\MFL V 2\LU 251 523 984B MFL_V2 FAXCENTRE F116_F116L XEROX
FR_GB_ESP\Anglais\Installation.fm
I

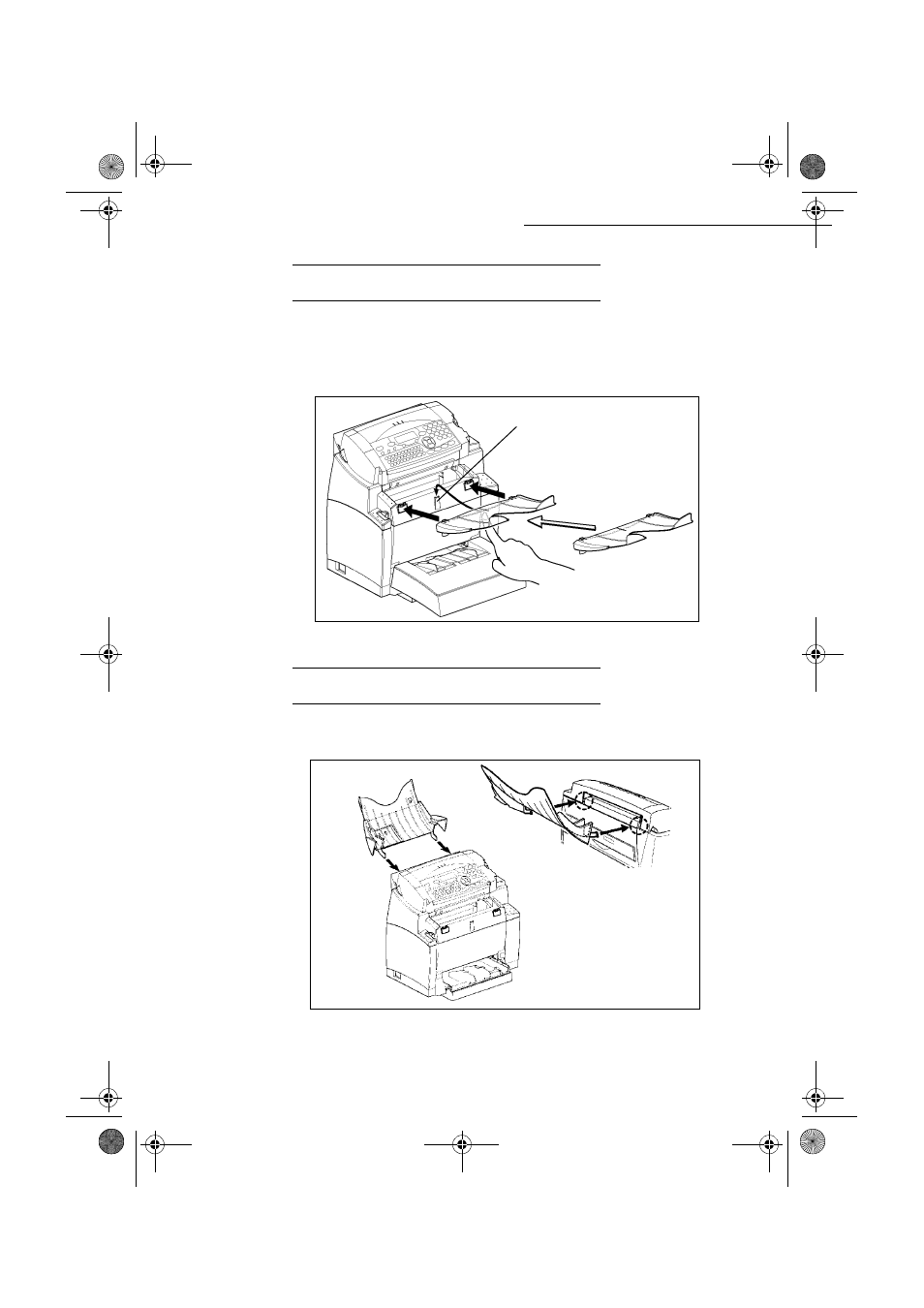

NSTALLING THE COPY OUTPUT TRAY
With both hands, slightly bend the centre part of the tray upwards in order to insert its clips into
the notches located on the upper part of the machine. Release the tray so that it recovers its initial
shape. If necessary, push at the base and at the centre of the tray from underneath so that is snaps
into place behind notch A.
I
NSTALLING THE DOCUMENT FEED TRAY
Install the tray by inserting its two guides into the notches provided at the rear of the machine.
A
