- 102 -
Maintenance
Date en cours : 11 août 2004
\\Sct01002\BE31-DOC\DOC 31 - En cours\Travaux en cours\Fax\MFL V 2\LU 251 523 984B MFL_V2 FAXCENTRE F116_F116L XEROX
FR_GB_ESP\Anglais\Maintenance.fm

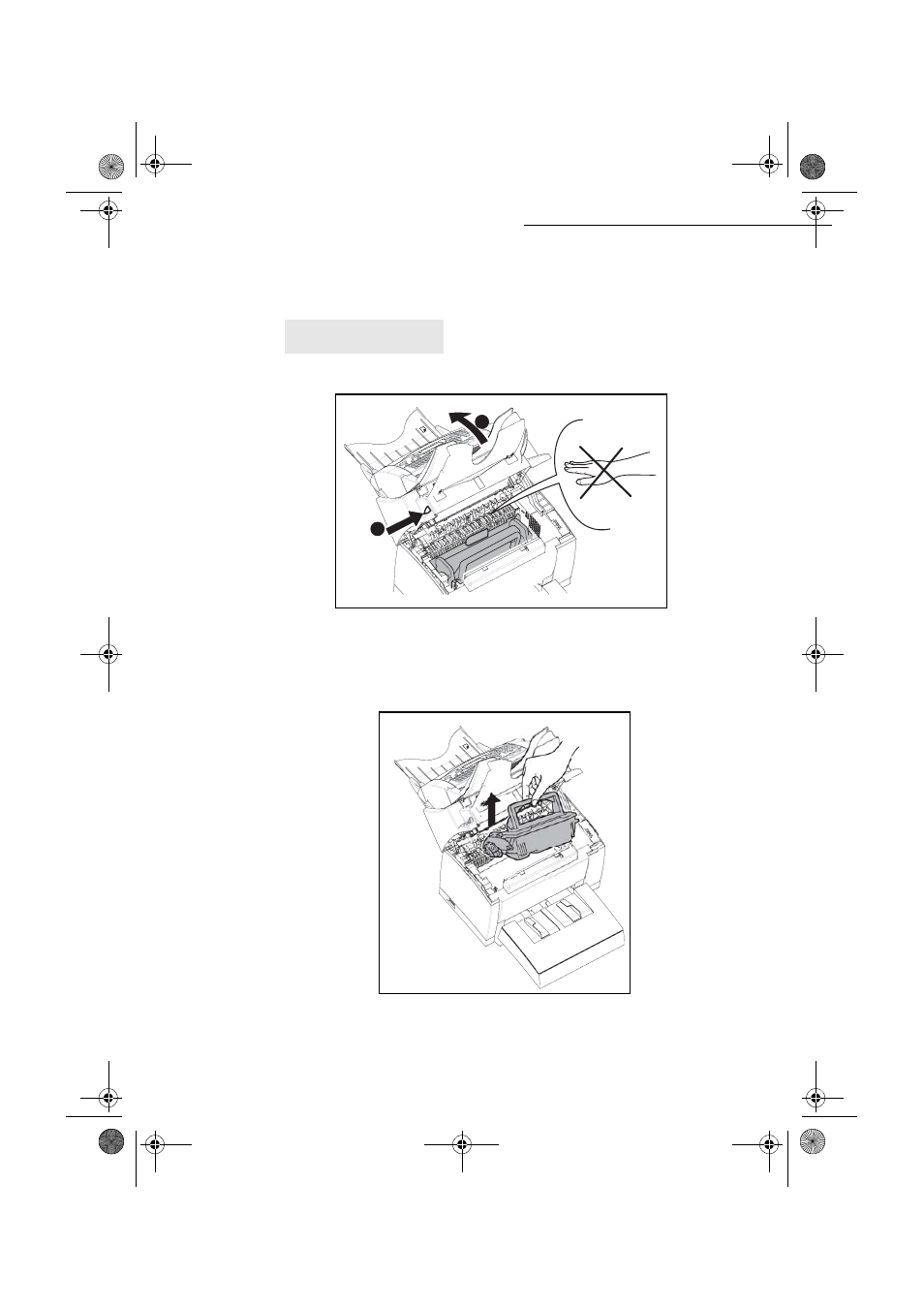

Replacing the drum cartridge
To replace the drum cartridge, proceed as shown below:
When the display shows:
1 - Press the release button of the upper cover to open it.
Caution - The fusing assembly located inside the machine may become very hot during
operation. To avoid injury - do not touch
2 - The drum cartridge is under the toner cartridge. Remove the toner cartridge from its housing
and place it safely out of the way.
3 - Remove the used drum cartridge and take the new one out of its package.
CHANGEDRUM
TO CONFIRM
2
1
