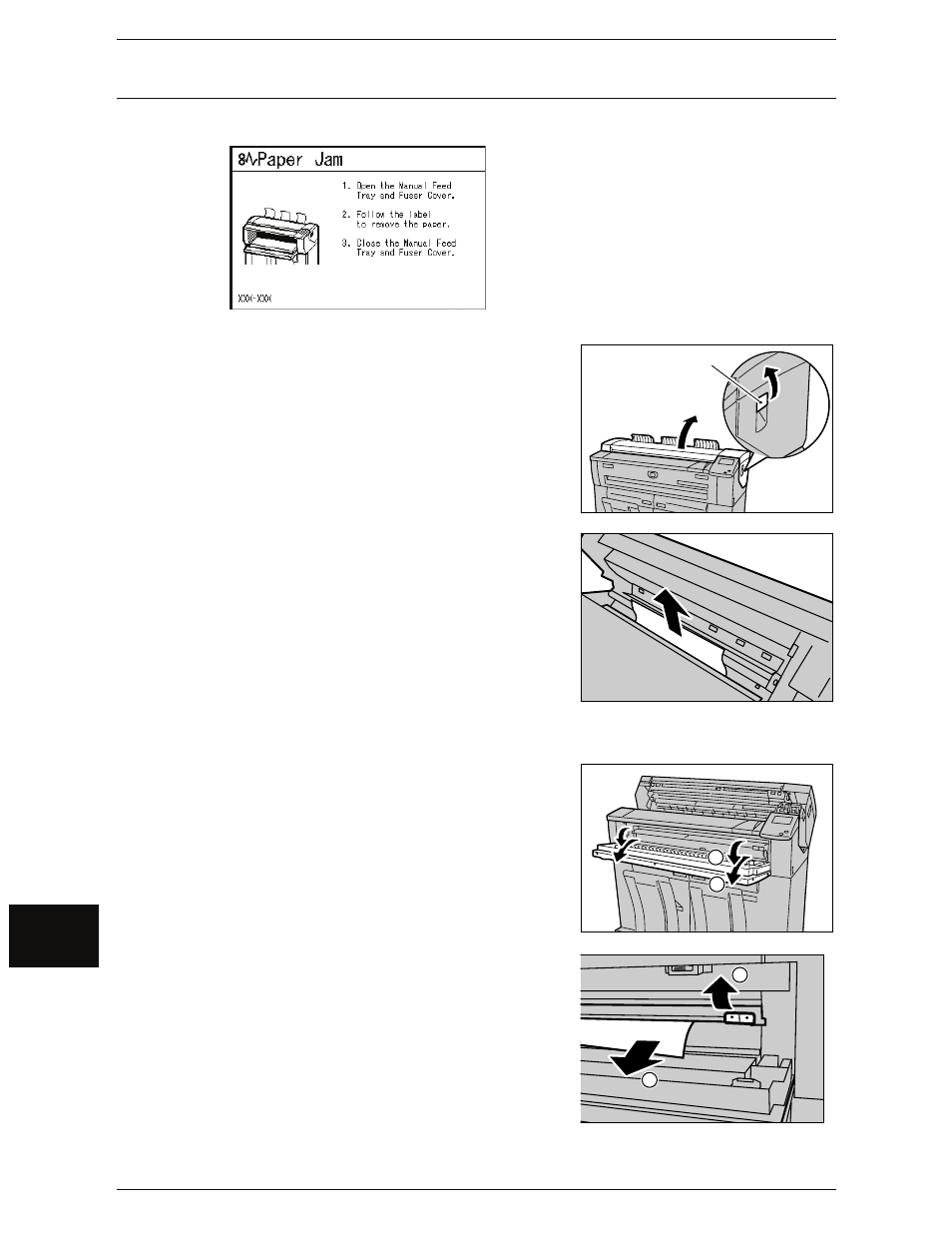

Paper Jams in Fuser Unit

The following describes how to clear paper jams that occur in the fuser unit.

1

Lift up the upper unit releasing lever to open the
upper unit.

2

Remove the jammed paper through the opening
area from the machine.

Important • Never touch a labeled area marked as hot or

having sharp parts. You can get burned or
injured.

Gently remove the paper taking care not to

tear it.

If the paper is torn, make sure to remove all

torn paper from the machine.

3

When the jammed paper is not visible from the
opening area, open the manual feed tray and the
fuser cover.

4

Lift up the green lever to hold the baffle, and
remove the jammed paper through the output
port.

Important • Never touch a labeled area marked as hot or

having sharp parts. You can get injured.

Gently remove the paper taking care not to

tear it.

If the paper is torn, make sure to remove all

torn paper from the machine.

Upper Unit Releasing Lever

2

1

2

1
