Page 37: Chapter 2 hardware installation
ZyWALL 2 and ZyWALL 2WE
Hardware Installation
2-1
Chapter 2
Hardware Installation
This chapter explains the LEDs and ports as well as how to connect the hardware. The wireless
LAN information applies to the ZyWALL 2WE only.
2.1 Introduction to Hardware Installation
This chapter provides graphics of the front and rear panels, descriptions of the ZyWALL’s front panel LEDs
and hardware connection instructions.
2.2 Front Panels LEDs
The LEDs on the front panel indicate the operational status of the ZyWALL.

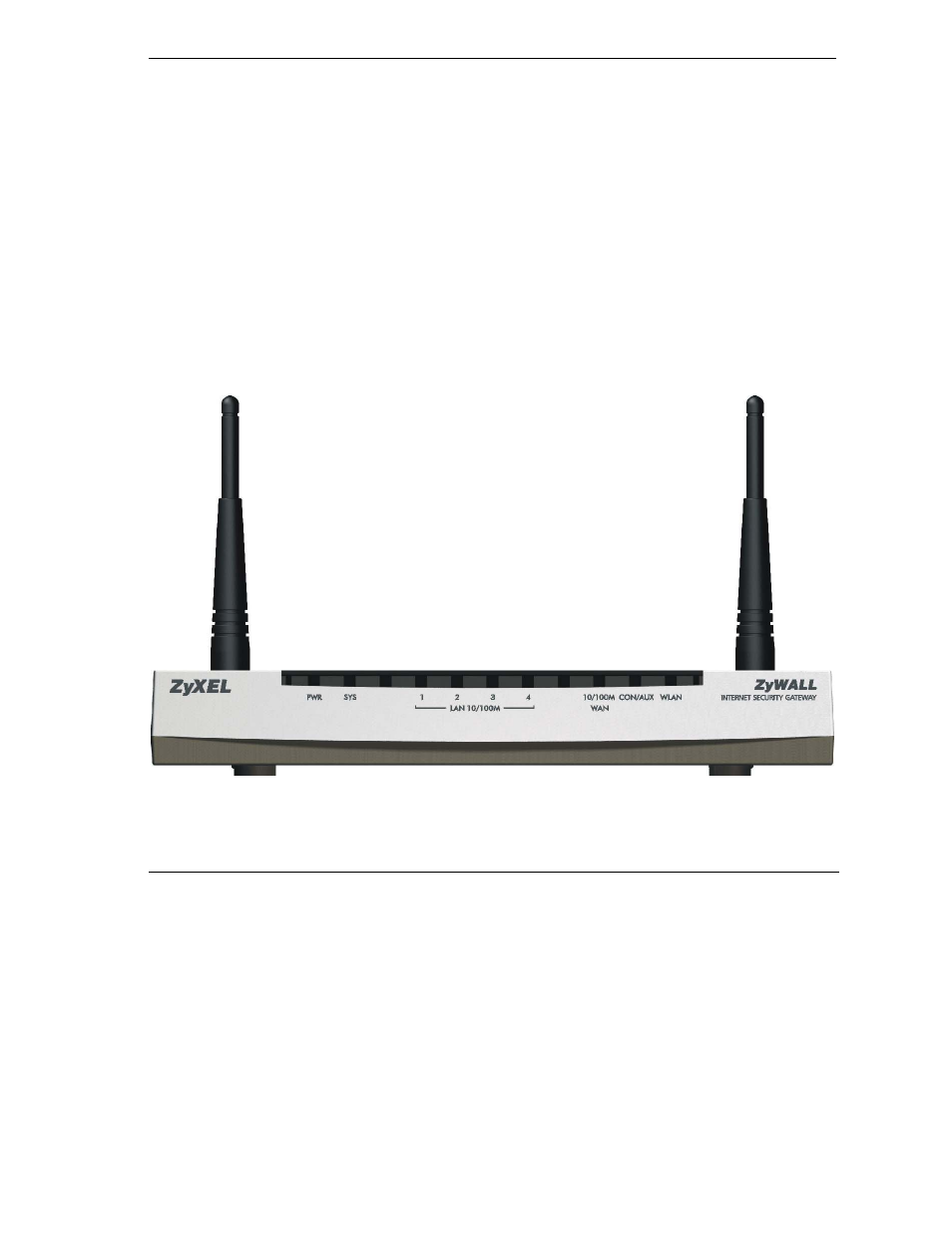

Figure 2-1 ZyWALL 2WE Front Panel
