TDM-E400 / TDM-C400 ADSL2+ Ethernet Modem Router User’s Manual
96
The DHCP server distributes addresses to computers connected to
one of its interfaces only when that interface is in the same subnet
as the pool addresses. In the examples shown above, the IP
addresses in pool 0 would be assigned only over the Ethernet and
USB interfaces.
Adding DHCP Server Address Pools
Follow these instructions to create an IP address pool:
1. Log into Web Configuration, click the LAN tab, and then click
DHCP Server in the task bar.
The DHCP Server Configuration page displays:

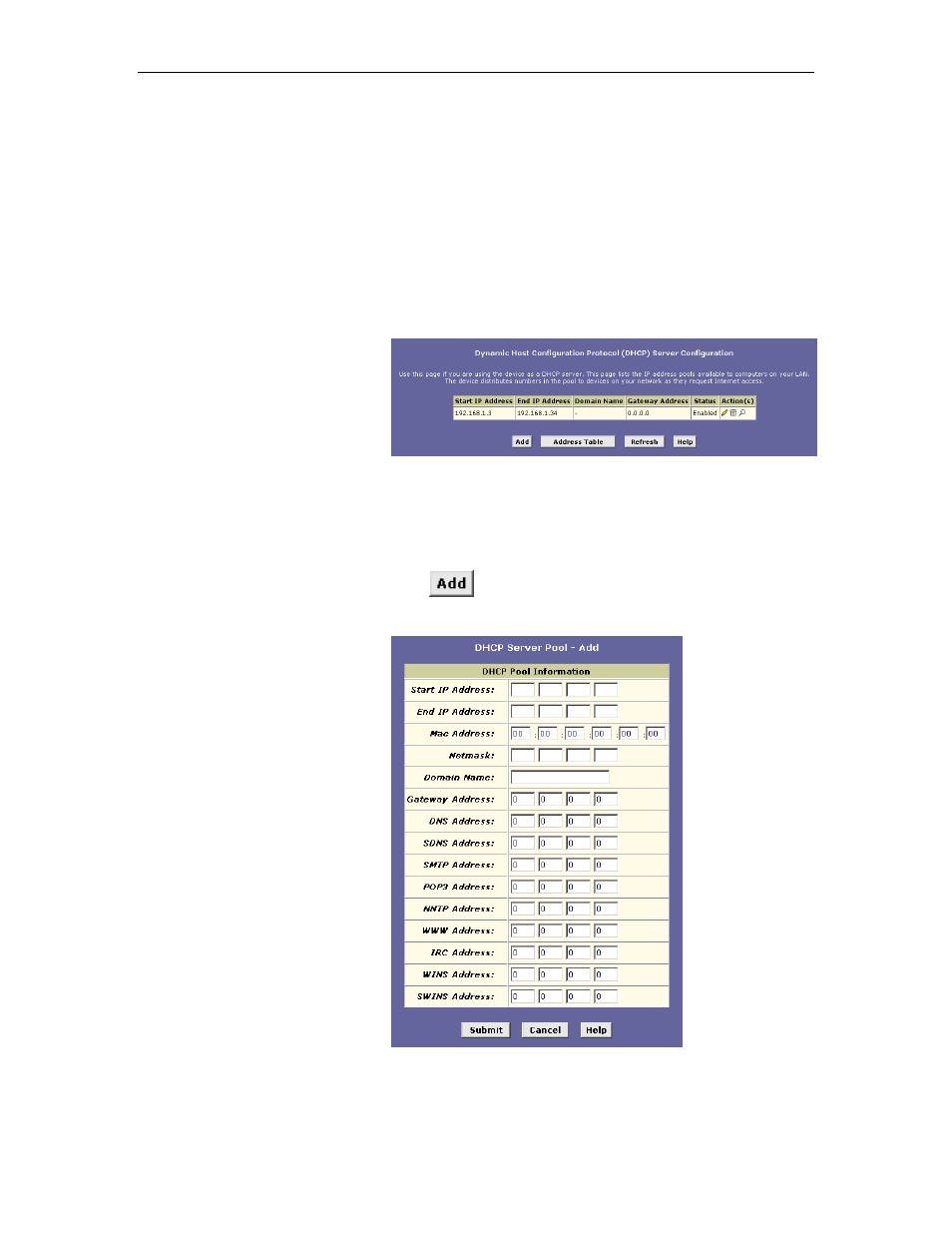

Figure 34. DHCP Configuration Page
Depending on your pre-configured settings, the table may
display up to two address pools, each in a row, or may be
empty.
2. Click .
The DHCP Server Pool – Add page displays:
Figure 35. DHCP Server Pool – Add Page
