112
■

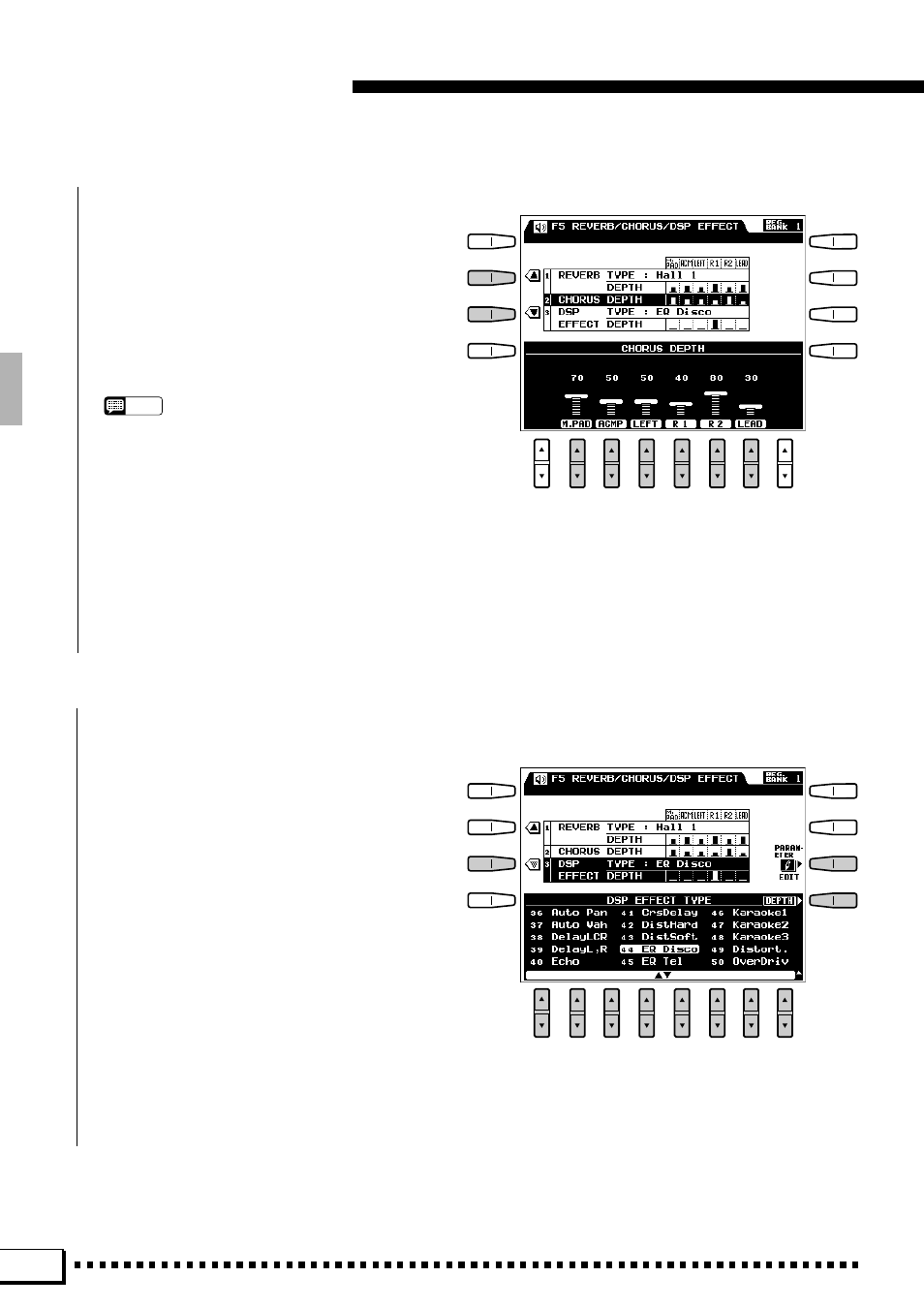

CHORUS DEPTH
..........................................................................................................................................................................
F5: Reverb/Chorus/DSP Effect
Independently sets the depth of the chorus effect
for the multi pads, accompaniment, left voice, right
1 voice, right 2 voice, and lead voice
Use the M.PAD, ACMP, LEFT, R1, R2, and
LEAD LCD [▲/▼] controls to set the depth of the
chorus effect as required for the corresponding parts.
The depth range is from “0” (no chorus effect) to
“100” (maximum chorus depth).
NOTES
• In addition to the graphic depth controls directly above the
LCD [ ▲ / ▼ ] controls, the chorus depth for each part is
represented by a vertical bar to the right of the CHORUS
DEPTH parameter in the upper section of the display. The
longer the bar, the greater the chorus depth.
• When a new style is selected, the preset chorus type and
depth value for that style is automatically recalled.
• Each part and voice has a preset depth value and range
over which the depth can be varied. Depth variations may
therefore not have the same audible effect with all voices.
■
DSP EFFECT TYPE & DEPTH
........................................................................................................................................
● DSP EFFECT TYPE
Selects the effect to be applied when the [DSP
EFFECT] button is turned on (page 34).
If the DSP EFECT TYPE parameters are not
showing on the lower section of the display, press
the
TYPE LCD button. Use the LCD [▲/▼] controls
to select the desired type. The name of the current
DSP effect type is shown to the right of the DSP
EFFECT parameter in the upper section of the
display. See “THE DSP EFFECTS AND PARAM-
ETERS”, below for a list of the effects and their
parameters.
