40 1600Xp Series installation and operation manual
Screen Tab: Monitor
The top screen under the Monitor tab is a graphical power flow block diagram that acts as a mimic display
showing power flow through the UPS sections (Input, Output, Bypass, and Battery) and the UPS status
(on-line, backup, bypass, Shutdown). Additional information screens are available that display the de-
tailed status of the various parameters for the input, output, bypass, battery, dC bus, System Status, and
remote Communications.
the monitor tab illustration, next page, shows the screens available and how to navigate between them.

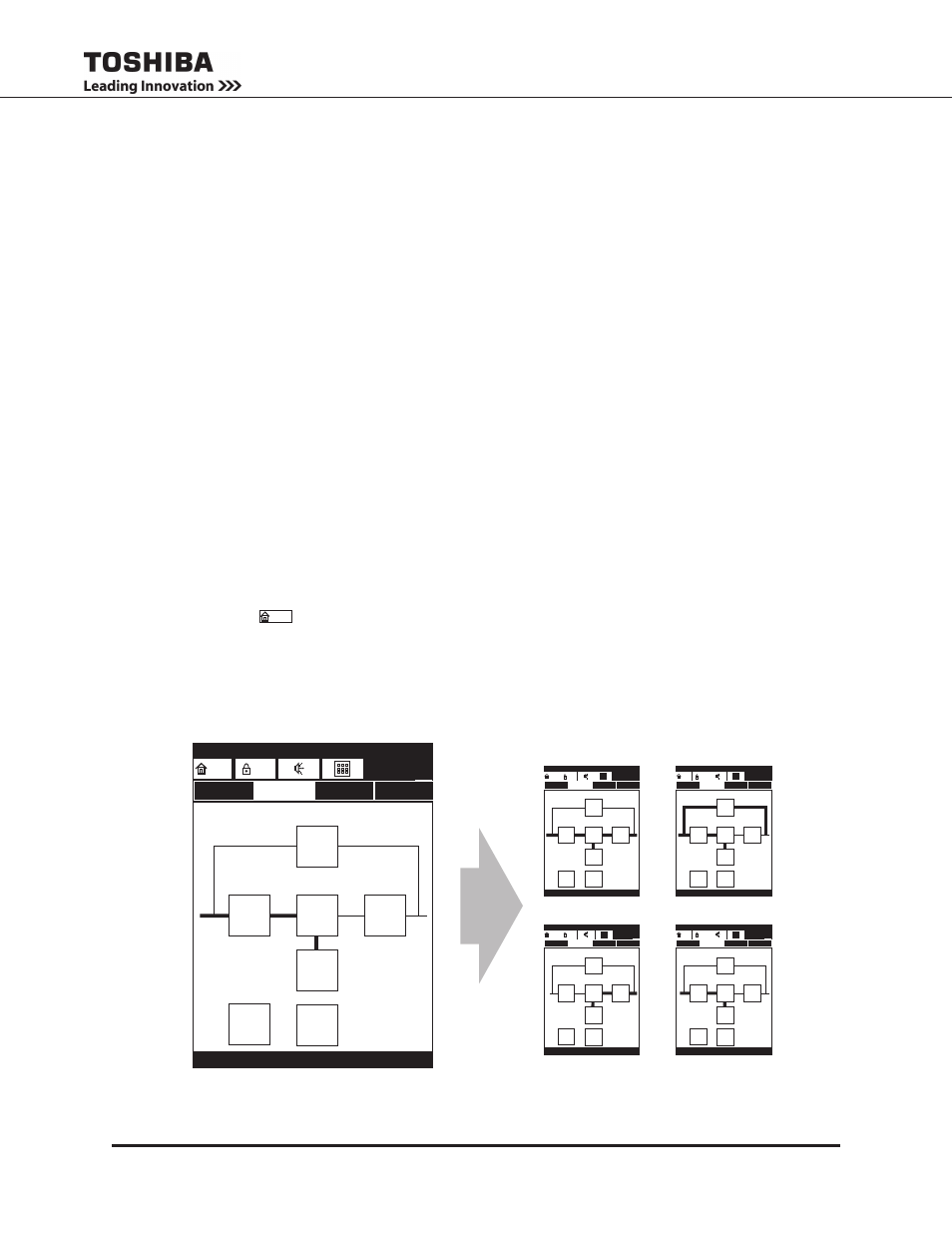

Mimic Display
in the mimic display of the monitor tab screen, the four UpS selection keys, input ( IN), dC bus, (DC) output
( OUT), bypass (BYP), and battery (0) are connected by lines indicating power flow. A thick line indicates
power flowing, and thin line indicates no power flowing.
The Monitor display, below, shows the UPS in Shutdown Mode: Power is flowing to charge the battery, but
no power is going to the bypass or output.
Monitor Details
press the IN, BYP, OUT, DC, or BAT key on the mimic display to view the parameter details for that section
of the UpS.
The MONITOR TAB figure on the following page shows the relationship of the various data displays.
press the Home key,
Home
, to return to the opening monitor tab screen.
MIMIC DISPLAY STATUS
INDICATOR
on-line dVCoH ASyn
Main Monitor Settings Records
12:35 pm inV
HOME USR
BYP
BAT
D&E
IN OUT DC
C&C
MIMIC DISPLAY
ON-LINE MODE BYPASS MODE
BACKUP MODE OUTPUT SHUTDOWN
MODE
on-line
Main Monitor Settings Records
12:35 pm inV
HOME USR
BYP
BAT
D&E
IN OUT DC
C&C
bypass dVCoH ASyn
Main Monitor Settings Records
12:35 pm byp
HOME USR
BYP
BAT
D&E
IN OUT DC
C&C
backup dVCoH ASyn
Main Monitor Settings Records
12:35 pm inV
HOME USR
BYP
BAT
D&E
IN OUT DC
C&C
Shutdown dVCoH ASyn
Main Monitor Settings Records
12:35 pm wrn
HOME USR
BYP
BAT
D&E
IN OUT DC
C&C
96% 100%
96% 100% 96% 100%
96% 100% 96% 100%
