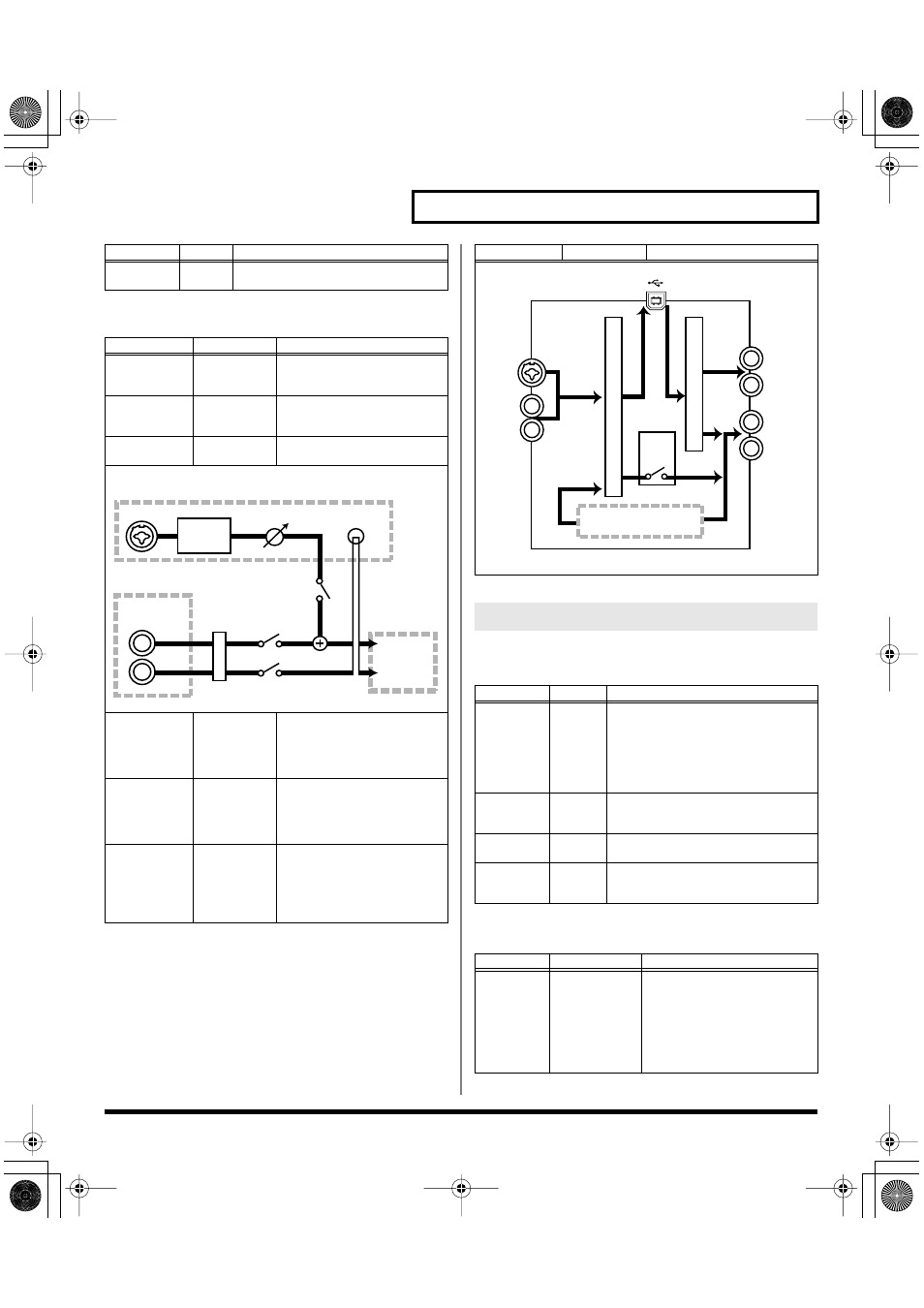

39
Settings Common to All Modes (System Mode)
Audio I/F
Tx
Breath
STORE — Store the chord you specified from the
keyboard into the chord set.
Parameter Value Explanation
MIC Jack
Switch OFF, ON Specifies whether the front pan-
el MIC jack will be enabled
(ON) or disabled (OFF).
INPUT Jack
Switch OFF, ON Specifies whether the rear panel
INPUT jacks will be enabled
(ON) or disabled (OFF).
INPUT Jack
Gain 0db, +12db Sets the gain of the rear panel
INPUT jacks.
USB Audio In-
put Source OFF, MAIN,
ANALOG When the V-Synth XT is con-
nected via USB to your comput-
er, this specifies the source of
the USB audio that will be out-
put to the computer.
USB Audio In-
put Monitor
Sw OFF, ON Specifies whether USB Audio
Input Source monitoring will be
sent from the V-Synth XT’s
MAIN OUT (ON) or will not be
sent (OFF).
USB Audio
Output Dest OFF, MAIN,
DIR When the V-Synth XT is con-
nected via USB to your comput-
er, this specifies the output
destination of the USB audio
that is received from the com-
puter.
Parameter Value Explanation
Front Panel
Sound
Generator
MIC Jack
INPUT
Jack
R
L
INPUT
JACK
Gain
INPUT
JACK
Switch
MIC
JACK
Switch
MIC Sw
•Hi-Z
•NORMAL
•PHANTOM
Input Knob PEAK LED
Rear Panel
Carrier
(Processor
Type 1, 2)
Modulator (MIC)
Controller Settings (Controller)
Parameter Value Explanation
Patch Tx
Ch 1–16,
RX CH,
OFF Specifies the transmit channel of MIDI
messages in Patch mode. If you do not
want to transmit MIDI messages to ex-
ternal MIDI devices, turn this parameter
“OFF.” If you want the transmit channel
to always match the Patch Receive
Channel, set this parameter to “RX CH.”
Tx PC OFF,
ON Specifies whether Program Change mes-
sages will be transmitted (ON) or not
(OFF).
Tx Bank OFF,
ON Specifies whether Bank Select messages
will be transmitted (ON) or not (OFF).
Tx Active
Sens OFF,
ON Specifies whether Active Sensing mes-
sages will be transmitted (ON) or not
(OFF).
Parameter Value Explanation
Voice As-
sign OFF,
CC01–31,
CC33–95 Specifies the MIDI controller
number that will transmit the
volume data extracted from the
mic input signal.
OFF : No message will be trans-
mitted.
CC01-31, 33-95 : Controller
numbers 1-31, 33-95
Parameter Value Explanation
INPUT
Jack
MIC
Jack
DIRECT
OUT
OFF
ANALOG
MAIN
DIR
MAIN
V-Synth XT
USB Audio OUT USB Audio IN
USB A
udio Output Dest
USB A
udio Input Source
MAIN
OUT INPUT
Monitor
Switch
Sound Generator
