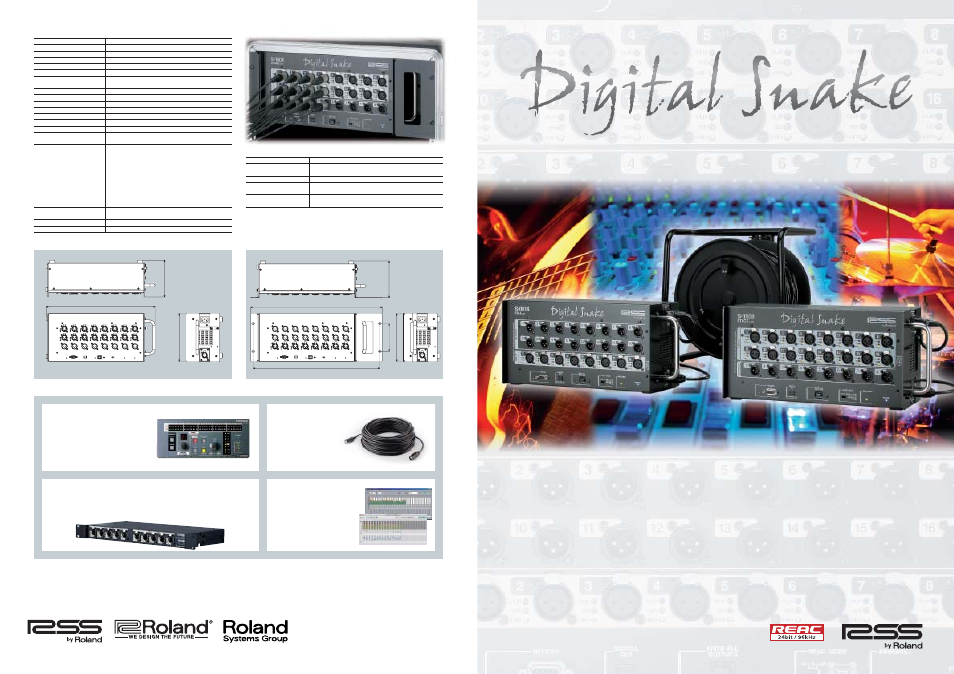

Copyright 2007 Roland Corporation. All rights reserved.

All specification and appearances are subject to change without notice.

May 2007 RAM-7006 KS

www.rolandsystemsgroup.net

S-1608

Stage Unit

S-0816

FOH Unit

Digital Audio Transfer System

C o m p a c t , P o r t a b l e D i g i t a l S n a k e S y s t e m

Optional Items

S-4000R

Remote Controller

S-4000R can be connected to both S-1608 or
S-0816. It provides easy remote control of
gain adjustments and controls Phantom
power and PAD Settings. The S-4000R can
save up to 10 setups to internal memory for
instant recall of the all settings.

S-4000-SP

REAC Splitter

The S-4000SP is a dual 5-port dedicated gigabit splitter for the RSS Digital Snake System
that provides highest level of reliability with backup REAC ports, two power supplies and
Neutrick(R) Ethercon Connectors.

SC-W100S

100 meter Cat5e Cable

Crossover cable with Neutrik(R)
Ethercon connectors

S-4000 RCS

Remote Control Software

As an alternative to the S-4000R a
computer can be connected to the
REMOTE terminals (RS-232C) of S-
1608 or S-0816 and controlled by
the S-4000 RCS Remote Control
Software. This software is available
as a free download for Mac or PC.

* The S-4000 RCS software is downloadable from www.rolandsystemsgroup.net

Specifications

Number of Channels

AD and DA Conversion

Frequency Response

Total Harmonic Distortion + Noise

Dynamic Range

Cross Talk

Nominal Input Level

PAD

Input Impedance

Nominal Output Level

Output Impedance

Recommended Load Impedance

Residual Noise Level (IHF-A, typ.)

Equivalent Input Noise Level

Network Latency

Connectors

Indicators

Power Supply

Power Comsumption

Phantom Power

Dimensions

Weight

Operation Temperature

Accessories

+48 V / 14 mA (each input, remote controlled)

401 (W) x 135 (D) x 177 (H) mm or

15-13/16 (W) x 5-3/8 (D) x 7 (H) inches

5.5 kg 12 lbs 3 oz

0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Power Cord x 1, REAC Connector Cover x 1, Ferrite Cores x 1

Rubber Foot x 4, Rack Mount Kit x 1, Owner's Manual

S-1608 : 16 in 8 out S-0816 : 8 in 16 out

24 bit / 96 kHz

-2 dB / +0 dB (@ +4 dBu, 20 Hz to 20 kHz)

0.05 % or less (Pad: On, Input Gain: +4 dBu, 22Hz to 20 kHz)

110 dB

-80 dB or less (Input Gain: +4 dBu, typ.)

-65 to -10 dBu (PAD: Off), -45 to +10 dBu (PAD: On)

(1 dB step, Max. +28 dBu)

20 dB On/Off

14 k ohms

+4 dBu, Max. +22 dBu

600 ohms

10 k ohms or greater

-80 dBu or less

S-1608: -128 dB S-0816: -124dB

375 microseconds when using REAC cable only (*1)

(AD > REAC > DA Latency: approx 1.2 ms)

S-1608 : Analog Input x 16 (XLR type, balanced, phantom power)

Analog Output x 8 (XLR type, balanced)

Digital Output connector x 1 (Optical type)

REAC Connector x 1 (RJ-45 EtherCon type)

Remote Connector x 1 (RS-232C, DB-9 type)

S-0816 : Analog Input x 8 (XLR type, balanced, phantom power)

Analog Output x 16 (XLR type, balanced)

Digital Output connector x 1 (Optical type)

REAC Connector x 1 (RJ-45 EtherCon type)

Remote Connector x 1 (RS-232C, DB-9 type)

POWER Indicator x 1, REAC Indicator x 1,

REMOTE Indicator x 1, MUTE ALL OUTPUTS Indicator x 1

AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)

45W

*1: When a REAC Splitter S-4000-SP or a switching hub is used in-line with REAC cables, the network latency will increase by the
amount of processing delay introduced by the splitting device itself. The actual delay is dependant upon the specifications of the
splitting device, though the maximum delay amount for a single splitting device should be about 200 microseconds.
* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

S-0816 Dimensions with rack mount kit (mm)

S-1608 Dimensions(mm)
