HOW TO SET AN ORIGINAL
19
1

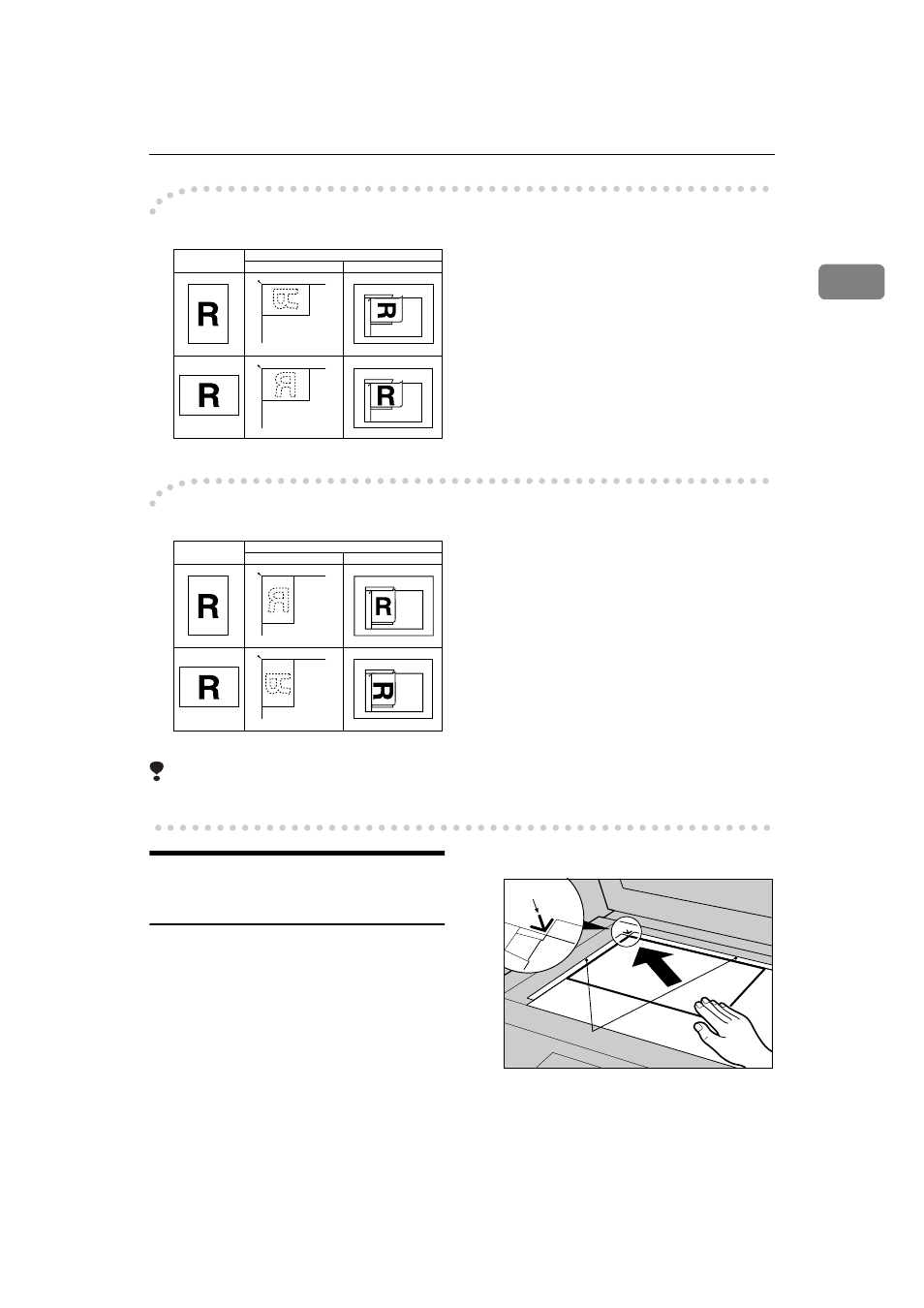

- - - -How to set A4, B4, A3, LT, LG and DLT size originals
- - - -How to set A4, A5 and B5 size originals
Limitation
❒ A5 size on the exposure glass is not detected.
Setting a Single Original on
the Exposure Glass
Set originals that cannot be placed in
the Document Feeder (ADF) such as a
book on the exposure glass one page
at a time.
A
Lift the Document Feeder (ADF)
by at least 30 degrees. Place the
original face down and align its
upper left corner with the refer-
ence mark at the upper left corner
of the exposure glass.
1. Reference mark
2. Scale
Where original is set
Exposure glass Document Feeder(ADF)
Original
ND0X01E2
Where original is set
Exposure glass Document Feeder(ADF)
Original
ND0X01E1
ND1C01E0
1
2
