Ricoh 70E User Manual
Page 94
Preparation for Installation 4-46
II
L
00
21)

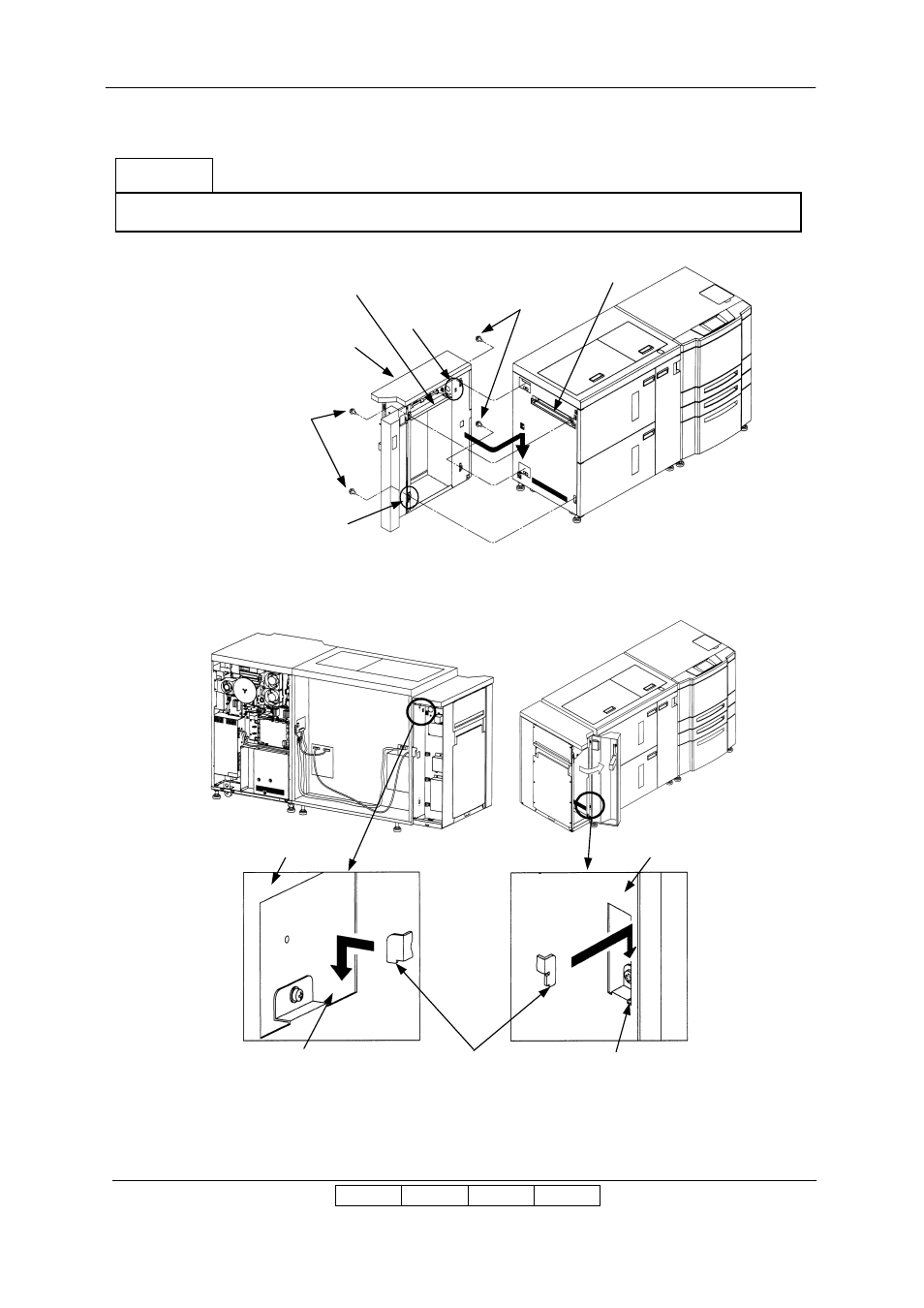

Install the Transit Pass Unit Type DDP to the Container Stacker.
(1) Insert the two Projections in the Gap.
(2) Install the Transit Pass Unit Type DDP by using the four M4x8 Screws.
M4x8 Screw
M4x8 Screw
Projection
Projection
Transit Pass Unit Type DDP
Upper Paper Guide
SB Cover Paper Guide
Install it carefully so that Upper Paper guide and SB Cover Paper Guide do not collide
NOTE
Projection of Transit Pass Unit Type DDP
Gap
Gap
Container Stacker Cover
Container Stacker Cover
