Ricoh 70E User Manual
Page 54
Preparation for Installation 4-6
II
L
00
8) Connecting the Power Supply Cable
Please connect the cable according to this procedure when you use cables other than the
cable appended to the machine.
(1) Put the Power Supply Cable and put it through the Cord Lock and pull it out of the
Terminal Block.
(2) Connect the Power Supply Cable to the Terminal Block and chassis.
(3) Fasten the Power Supply Cable by the Cord Lock.
1) The voltage is constantly in unless the machine is unplugged or Breaker
Switch is turned off.
2) Unplug the Power Supply Cable prior to connecting the power supply
source.
3) Be careful not to have other personnel plug in the power cable while
performing the connecting.
WARNING
Cord Lock
Power Supply Cable
Cord Lock
Power Supply Cable
M4

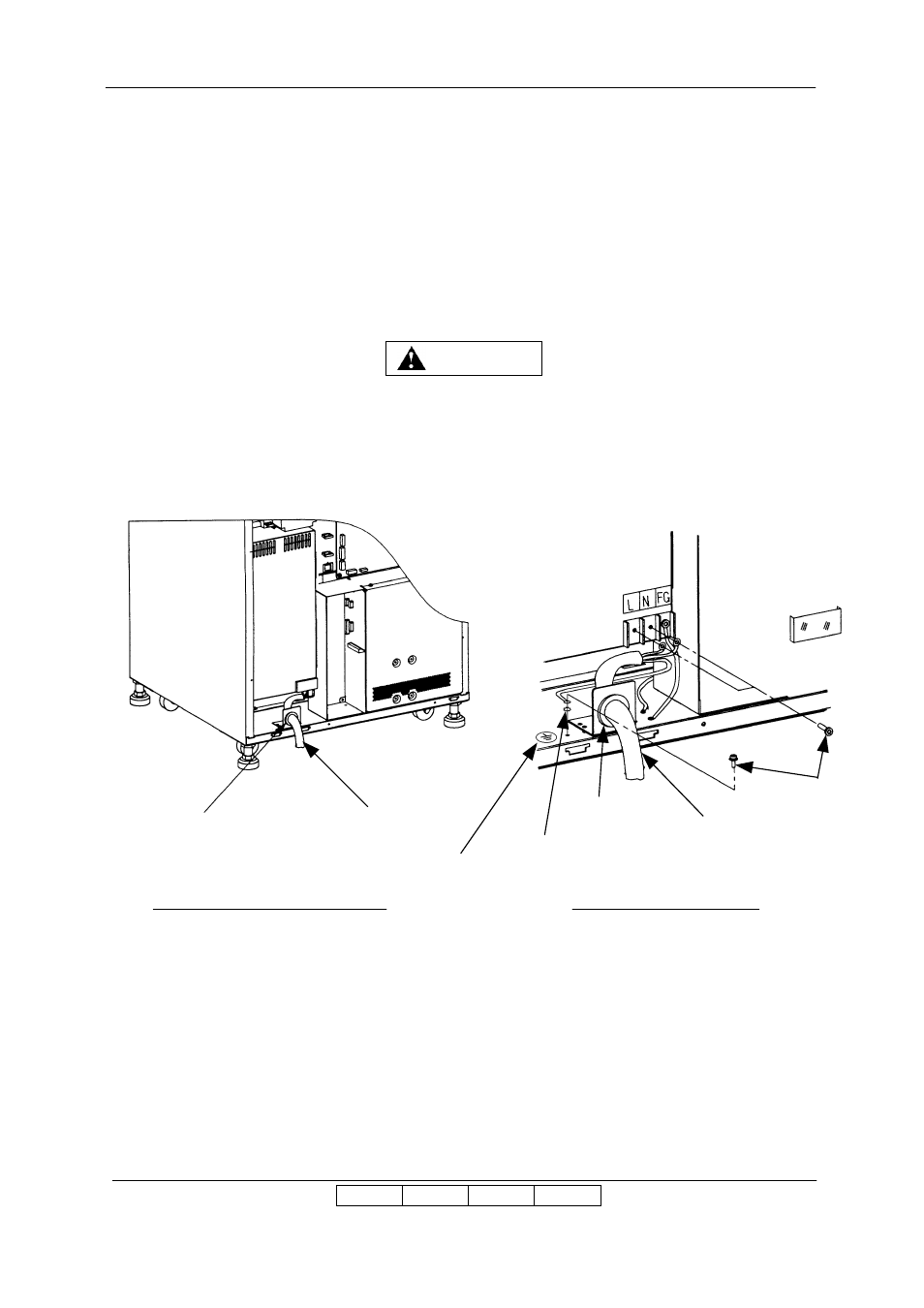

Rear internal view of Printer
View of Power Supply
Star Washer
Protective Erathing Symbol
II
L
01
